aspenhome
ah
ITEM NO: I597-412-1
I597-402-1
I597-403-1
Thank you for purchasing this quality product. Be sure to check all packing material carefully for
small parts that may come loose inside the carton during shipment.
I597-412-1
I597-402-1
HARDWARE LIST: I597-412-1
Description
No.
Bolt Ø1/4" x 1-3/8"
A
Lock Washer Ø1/4"
B
Flat Washer Ø1/4" x 3/4"
C
D Allen Wrench 4mm
HARDWARE LIST: I597-402-1
Description
No.
Hanger Bolt Ø5/16" x 3-1/8"
E
Lock Washer Ø5/16"
F
Flat Washer Ø5/16" x 5/8"
G
Hex Nut Ø5/16"
H
I Hex Wrench
J Wood Screw M4 x 1-3/16"
K Wood Screw M4 x 3/4"
Bolt Ø1/4" x 1-1/4"
L
Lock Washer Ø1/4"
M
Flat Washer Ø1/4" x 3/4"
N
O Allen Wrench M4
WARNING! Before using this product, please read, understand, and follow these instructions. Failure to follow
each of these assembly instructions precisely may result in damage to the product and / or injury to the consumer.
Page 1/5

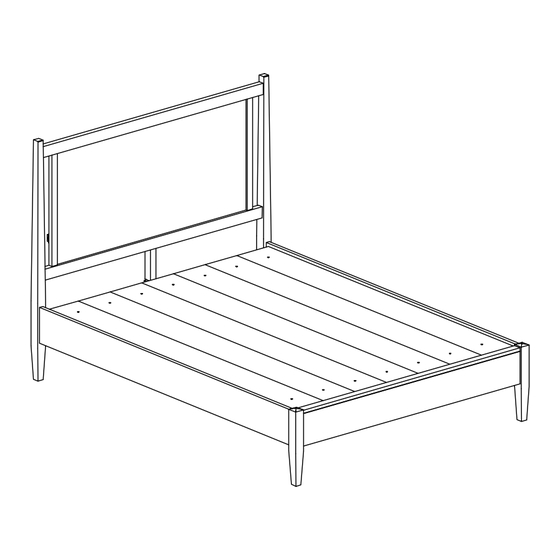

Queen Panel HB
Queen Rails w/ Decking
Queen Low Profile FB
UNIT SHOULD BE INSTALLED BY 2 OR MORE PERSONS.
I597-403-1
Quantity
Sketch
14 PCS
14 PCS
14 PCS
1 PC
Quantity
Sketch
8 PCS
8 PCS
8 PCS
8 PCS
1 PC
12 PCS
14 PCS
10 PCS
10 PCS
10 PCS
1 PC
FOR INDOOR USE ONLY
MADE IN VIETNAM
ASSEMBLY INSTRUCTIONS
R
TOOLS REQUIRED (NOT PROVIDED)
PHILLIPS SCREWDRIVER
All Beds need to be set up in the exact final
location so that after full assembly it will not
need to be moved. Moving the bed will cause
the support legs to move out of perpendicular
(90 degree), weaken the support system, and
may allow the bed to collapse.
COMPONENTS LIST: I597-412-1
Description
No.
1 Headboard
Left leg
2
Right leg
3
Wood Stretcher
4
Center Support Leg
5
COMPONENTS LIST: I597-402-1
Description
No.
1 Bed rails
Slats
2
Decking
3
Support Leg (for center rail)
4
5 Center rail
COMPONENTS LIST: I597-403-1
Description
No.
1 Footboard (FB)
Quantity
Sketch
1 PC
1 PC
1 PC
1 PC
1 PC
Quantity
Sketch
2 PCS
6 PCS
7 PCS
3 PCS
1 PC
Quantity
Sketch
1 PC
