Summary of Contents for TRUELOOK TrueDeter Fixed

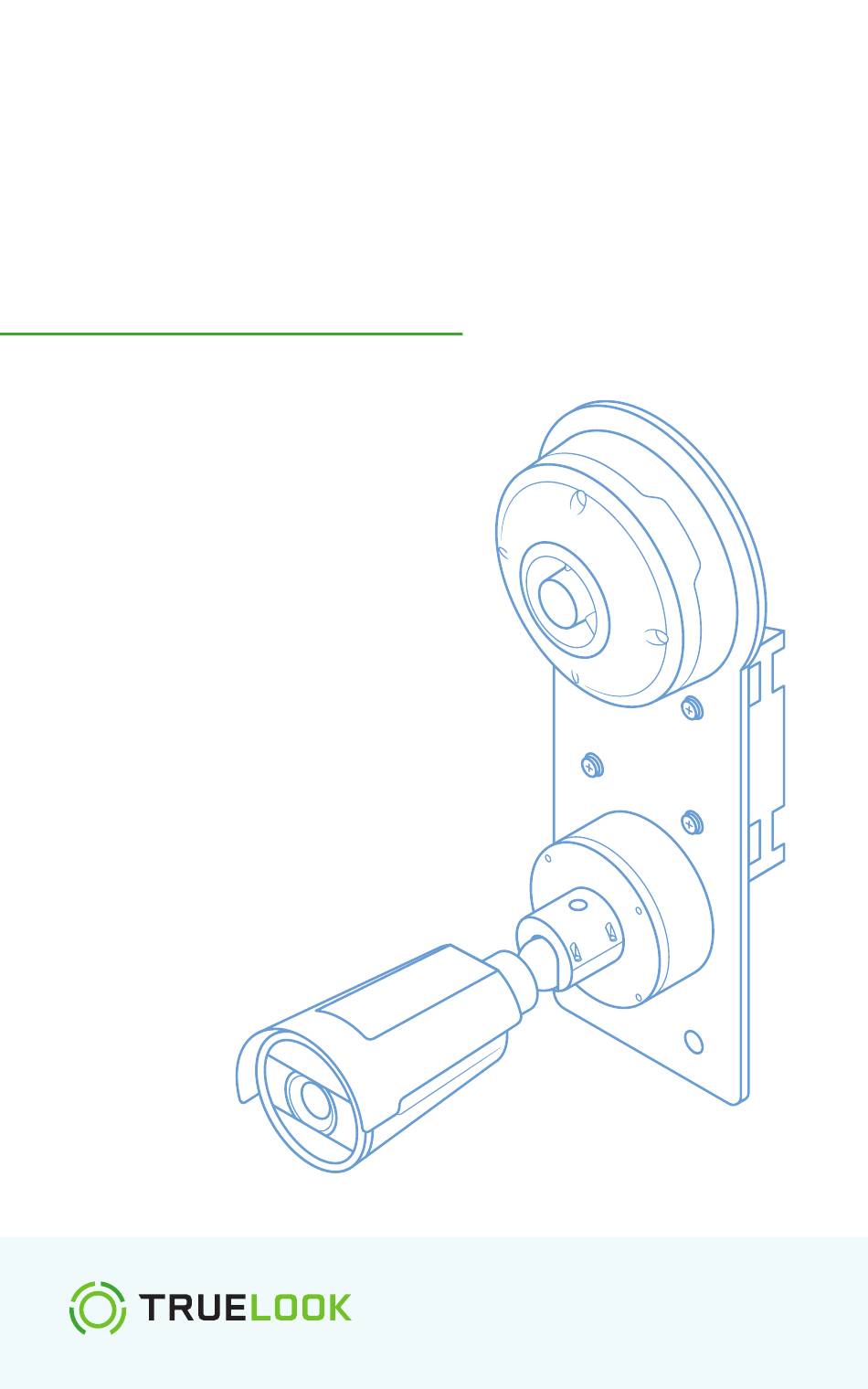

- Page 1 TrueDeter Fixed Installation Manual...
- Page 2 Getting Started Assembled Unit...
-
Page 3: Online Resources
Getting Started Unlimited Support If you have any questions or issues with your TrueLook system, please don’t hesitate to contact our Customer Support team. Phone 833-878-3566 (Option 2) Email support@truelook.com You can also submit a support request online at: support.truelook.com/contact-support... -
Page 4: Hardware Packing List
Getting Started Hardware Packing List Camera System [1x] Control Box [1x]... - Page 5 Getting Started Pole Mounting Hardware Steel Straps [4x] Wall Mounting Hardware L Brackets [4x] Mounting Feet [4x] Screws [4x] Flat Washers [4x] Lock Washers [4x] Nuts [4x] Assorted Hardware Allen Wrench [1x] Warning: This equipment contains flashing lights, which may induce epileptic seizures in at-risk individuals.
-
Page 6: Pole Mounting
Installation Pole Mounting Camera System Step 1 Thread steel straps through top and bottom of pole mount on back of plate. Step 2 Tighten each strap around pole using drill with 5/16 hex head driver bit (not included). - Page 7 Installation Step 3 Trim steel straps to desired length using tin snips (not included). Step 4 Loosen screw on camera neck with Allen wrench (included) to adjust camera angle. Tighten screw on camera neck with Allen wrench when desired angle is chosen.
- Page 8 Installation Control Box Step 1 Thread steel straps through pole mounting hardware on top and bottom of control box. For large diameter poles For small diameter poles...
- Page 9 Installation Step 2 Tighten each strap around pole using drill with 5/16 hex head driver bit. Step 3 Trim steel straps to desired length using tin snips.
-
Page 10: Wall Mounting
Installation Wall Mounting Camera System Step 1 Attach wall mounting hardware to sides of pole mount with screw, washer, lock washer, and nut, using drill with Phillips #2 bit (not included) on screws and pliers (not included) to hold nuts tight. - Page 11 Installation Step 2 Using hardware appropriate for your mounting surface, attach camera to wall. Step 3 Loosen screw on camera neck with Allen wrench (included) to adjust camera angle. Tighten screw on camera neck with Allen wrench when desired angle is chosen.
- Page 12 Installation Control Box Step 1 Remove pole mounting hardware from back of control box using drill with Phillips #2 bit.
- Page 13 Installation Step 2 Attach mounting feet to back of control box using same screws and drill with Phillips #2 bit. Tab on mounting foot nests within slot on control box. Step 3 Using hardware appropriate for your mounting surface, attach control box to wall.
- Page 14 Powering Connecting & Powering Step 1 Twist protective plug caps off bottom of control box. The caps should hang freely. Step 2 Connect camera system to control box by plugging in both connectors of braided cable coming from camera. Connectors go into either socket and should snap firmly in place.
- Page 15 Powering Step 3 Twist protective plug caps on connectors up into bottom of control box. This will create a watertight seal. Warning: Do not use tools to tighten cap. Cap should be snug, but will not be flush against the enclosure. Step 4 Connect control box to power.
-
Page 16: Verifying Camera Operation
10 minutes for it to come online. Then, use the link on the back of the manual to view the camera and verify its functionality. If you don’t see the camera in the TrueLook Platform, contact Customer Support for assistance. -
Page 17: Troubleshooting
Final Setup Troubleshooting If something seems wrong with the system, it may be necessary to troubleshoot. Camera Not Operating Properly Check that the camera cable connectors are securely fastened into the control box. Check that the power source is supplying power. If your system is still not functioning properly, please contact Customer Support for further assistance. - Page 18 For the most efficient response from our team, include the following in your email: Company name Project name Contact person for installation issues The following photographs: A. Your whole TrueLook solution: the camera, what it’s mounted to, and any accessories B. Close-ups of mounting C. Close-ups of connections...
- Page 19 Notes...
-
Page 20: Accessing Your Camera
Accessing Your Camera © TrueLook Construction Cameras MAN100629 Manual-TrueDeter Fixed TRU 24019-10 D3...
