- Page 1 1080p IR PTZ Camera with Strobes and Sirens Installation Manual v with Strobes and Sirens Installation Manual 1080p IR PTZ Camera with Strobes and Sirens Installation Manual...
-
Page 2: Online Resources
SUPPORT 24/7 Support Your purchase of this TrueLook system includes customer and technical support. If you have any questions regarding the use or configuration of this equipment and software, please don’t hesitate to contact us. Phone 833.878.3566 Email support@truelook.com Office... -
Page 3: Hardware Packing List
GETTING STARTED Hardware Packing List Camera & Siren System Control Box Rugged Hard Case 1080p IR PTZ Camera with Strobes and Sirens Installation Manual... - Page 4 GETTING STARTED Hardware Packing List Pole Mounting Hardware Wall Mounting Hardware L Brackets (4 pcs) Mounting Feet (4 pcs) Screws Flat Washers Lock Washers Nuts Solar units will also include panel, battery, and battery housing. These are shipped separately. 1080p IR PTZ Camera with Strobes and Sirens Installation Manual...
-
Page 5: Preparing For Installation

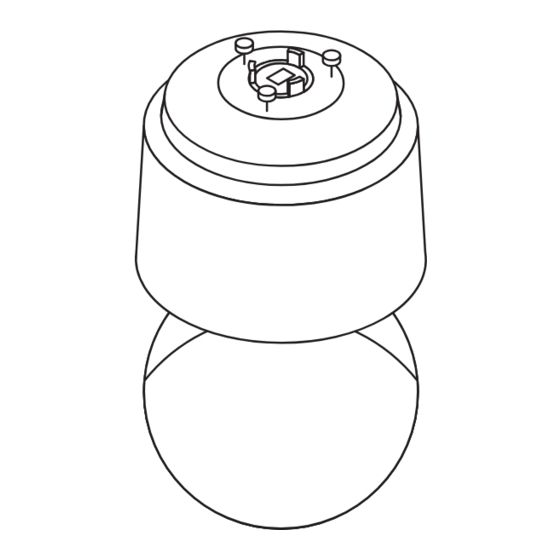

GETTING STARTED Preparing for Installation STEP 01 Remove plastic dome that covers camera by twisting dome to unalign notches and pulling off. Twist Remove STEP 02 Remove tape from camera and rotate camera to sit in center. Remove STEP 03 Reattach plastic dome by pushing dome back on and twisting to align notches. - Page 6 It is easier to troubleshoot an issue before it’s installed in its final location. app.truelook.cloud You may log in to your camera at using your unique username and password located on the back cover of this guide.
-
Page 7: Pole Mounting
MOUNTING Pole Mounting Camera STEP 01 Thread steel straps through top and bottom of pole mounting base on back of steel plate. 1080p IR PTZ Camera with Strobes and Sirens Installation Manual... - Page 8 MOUNTING Pole Mounting STEP 02 Tighten each strap around pole using drill with 5/16 hex head driver bit (not included). STEP 03 Trim steel straps to desired length using tin snips (not included). 1080p IR PTZ Camera with Strobes and Sirens Installation Manual...
- Page 9 MOUNTING Pole Mounting STEP 04 Attach safety tether hanging from camera pendant to hook on top of camera. STEP 05 Plug connector hanging from camera pendant into top of camera. Connector should snap firmly into place. 1080p IR PTZ Camera with Strobes and Sirens Installation Manual...
- Page 10 MOUNTING Pole Mounting STEP 06 Push camera up into pendant housing and rotate a quarter turn until it snaps into place, aligning with screw holes. STEP 07 Secure camera to pendant housing using T30 Torx screwdriver (not included). STEP 08 Remove protective plastic from camera.
- Page 11 MOUNTING Pole Mounting Control Box STEP 01 Thread steel straps through top and bottom of pole mounting hardware on top and bottom of control box. For large diameter poles For small diameter poles 1080p IR PTZ Camera with Strobes and Sirens Installation Manual...
- Page 12 MOUNTING Pole Mounting STEP 02 Tighten each strap around pole using drill with 5/16 hex head driver bit. STEP 03 Trim steel straps to desired length using tin snips. 1080p IR PTZ Camera with Strobes and Sirens Installation Manual...
-
Page 13: Wall Mounting
MOUNTING Wall Mounting Camera STEP 01 Attach wall mounting hardware to sides of pole mount with screw, washer, lock washer, and nut, using drill with Phillips #2 bit (not included) on screws and pliers (not included) to hold nuts tight. STEP 02 Using hardware appropriate for your mounting surface, attach mounting base to wall. - Page 14 MOUNTING Wall Mounting STEP 03 Attach safety tether hanging from camera pendant to hook on top of camera. STEP 04 Plug connector hanging from camera pendant into top of camera. Connector should snap firmly into place. 1080p IR PTZ Camera with Strobes and Sirens Installation Manual...
- Page 15 MOUNTING Wall Mounting STEP 05 Push camera up into pendant housing and rotate a quarter turn until it snaps into place, aligning with screw holes. STEP 06 Secure camera to pendant housing using T30 Torx screwdriver (not included). STEP 07 Remove protective plastic from camera.
- Page 16 MOUNTING Wall Mounting Control Box STEP 01 Remove pole mounting hardware from back of control box using drill with Phillips #2 bit. 1080p IR PTZ Camera with Strobes and Sirens Installation Manual...
- Page 17 MOUNTING Wall Mounting STEP 02 Attach mounting feet to back of control box using same screws and drill with Phillips #2 bit. Tab on mounting foot nests within slot on control box. STEP 03 Using hardware appropriate for your mounting surface, attach control box to wall.
- Page 18 CONNECT Connecting & Powering STEP 01 Twist protective plug caps off bottom of control box. The caps should hang freely. STEP 02 Connect camera and siren to control box by plugging in both connectors of braided cable coming from camera. Connectors go into either socket and should snap firmly in place.
- Page 19 CONNECT Connecting & Powering STEP 03 Twist protective plug caps on connectors up into bottom of control box. This will create a watertight seal. STEP 04 Connect control box to power. For 110v: Plug control box into standard 110v power outlet. Your camera will be online and ready to use within 10 minutes.
- Page 20 Once you’re done, simply snap a few pictures and email them to support@truelook.com. If we notice anything that we can help with, we’ll reach out. This will also help our support team quickly view your setup if you run into equipment issues at any point in the future.
- Page 21 Photograph Examples 1080p IR PTZ Camera with Strobes and Sirens Installation Manual...
- Page 22 Notes 1080p IR PTZ Camera with Strobes and Sirens Installation Manual...
- Page 23 Notes 1080p IR PTZ Camera with Strobes and Sirens Installation Manual...
- Page 24 Your Unique Login 23019-12D3 © Copyright 2023 TrueLook Construction Cameras MAN100338 Manual-Strobe-Siren-PTZ...
