ENVIO ina Series Quick Installation Manual

Luna Series | IESS-PTZ308M-PRO
IESS-PTZ308M-PRO

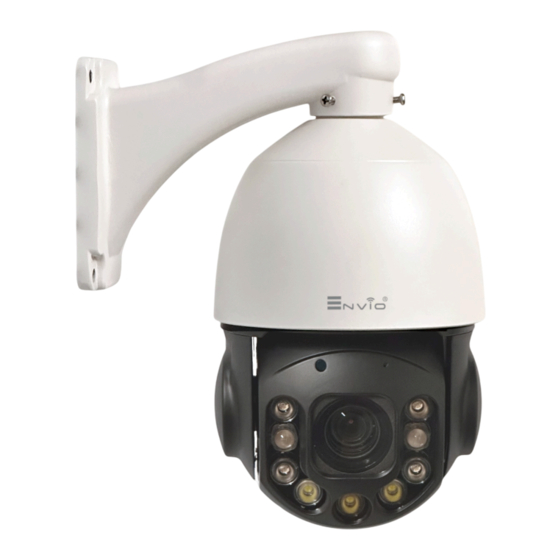

8MP 4K UHD Speed Dome Double Light 30X Two Way Audio MicroSd Network Camera Sony Sensor
Technical Specification
Embedded RTOS design, dual-core 32-bit DSP, pure hard compression,
System
watchdog ,(NT98566)
Image Sensor 3840(H)×2160(V),1/2.8" Black light illumination Sony IMX415 CMOS Sensor
Video compression H265AI/H265+ (Compatible with H265/H264)
Minimum Illumination color 0.0001Lux@F1.2, black/white 0.0001Lux@F1.2
Leds Distance 100m
Day/Night Mode IR/Full Color/Smart Alert
LEDs 4 IR Power Lesd and 5 Warm White Power Leds
Lens Type Motorized Varifocal
Focal Length 4.7mm-94mm (30X)
Angle of View 68,5°-4,2°
Rotation Range Pan: 360°; Tilt:90°
Focus Control Automatic
Resolution 3840x2160
Main stream: 8MP 3840*2160@15fps；5MP 2880*1616@25fps；4MP
2560*1440@25fps；2MP 1920*1080@25fps;
Video Output
Sub-stream: 800*448@25fps;
Record MicroSd Buid in (128Gb Max)
Interface 1*RJ45 10/100M adaptive port;RTSP/FTP/DHCP/NTP/UPnP
ONVIF 16.2
Mobile Monitor XMEYE/XMEYE PRO (iOS,Adroid)
Detect Human Detect /Video Analysis/Vehicle Detection
Noise Reduction 2D/3D
White Balance Auto / Manual
Audio Build-in Microphone/Speaker
Power Supply 12V DC ±30% / POE IEEE802.3af/3at
Power Consumation Max 15W (Leds on)
IP Protection IP65
Housing Metal (Alluminium)
Dimensions 222mm×136mm
1. Warnings and precautions
Dear Customer, thank you for choosing one of our products whose correct use guarantees solutions of the highest quality
and reliability over time. This manual provides instructions for using the product.
2. Connections
Connect the camera to the router and insert the power cable (12V at least 3A), or with POE (IEEE.802.3af/3at)
3. Installation
Speed Dome cameras are equipped with a wall mounting bracket, specially designed to allow the passage of cables inside
and protect them from tampering attempts. The fixing base has a side slot for cable exit, if the cables come from outside.
www.enviosecurity.com The bracket must be fixed to the wall in a stable manner.
Main Features
•
1 / 2.8" Black Light Illumination Sony Stravis Sensor
• 8 Megapixel (3840x2160)
•
Zoom 30X
• Maximum Double Light Led Distance more than 100m
•
Human Detect/Vehicle Detect/Videoanalysis
• Onvif 16.2
• H265AI/H265+ (Compatible with H265/H264)
•
4 High Power IR Leds + 5 High Power Warm White
Leds
•
MicroSd Build in (128Gb Max)
• Two Way Audio
•
DC12V/ POE IEEE802.3af/3at
4. Configuration
Connect the camera to the router and insert the power cable (12V at least 3A). It is possible to power the camera via POE
(IEEE.802.3af/3at). Download the "Device Manager" software from the website www.enviosecurity.com and install it on your PC.
Once the software is open, press the "IP Search" button (1). Select the IP address shown by the software (2), and change the IP
address of the camera (3), taking care to enter an IP address having the same subnet as your router, enter the relevant network
mask and IP address of the gateway.
Finally, press the "Modify" button (4) to save the settings. The software will display a "modification successful" message.
5. Login
Open your Internet browser (such as Chrome, Edge, Opera, Firefox etc.).
In the address bar of your browser, enter the IP address of the camera http://192.168.1.10. Allow you to download the
Envio VideoPlayTool plugin. Install it and refresh the page.
Enter your login credentials:
user: admin
password: (no password
For the complete manual visit the web page www.enviosecurity.com
