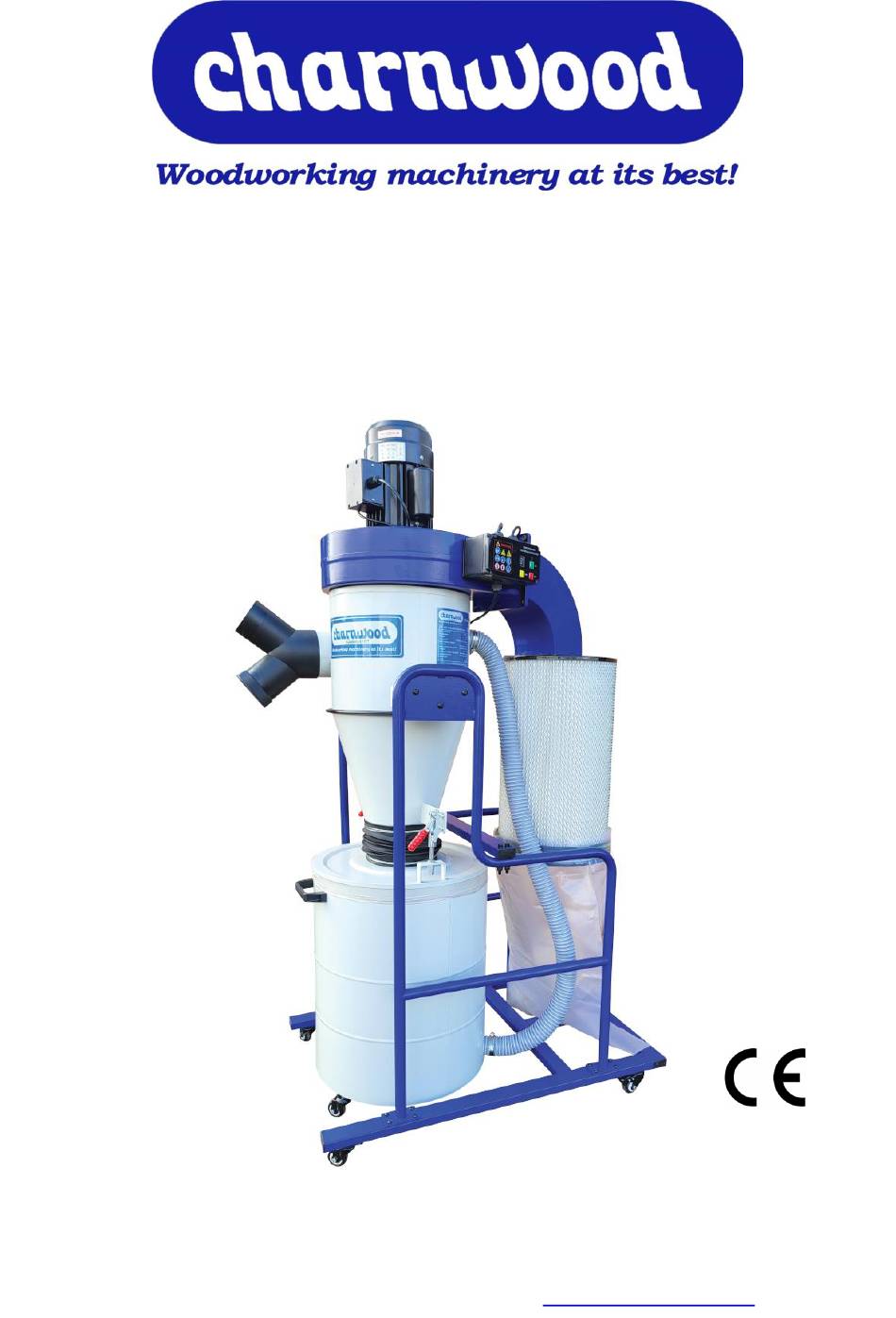

- Page 1 2HP CYCLONE DUST EXTRACTOR OWNERS MANUAL MODEL: C300R Charnwood Machinery Ltd, Cedar Court, Walker Road, Bardon Hill, Leicestershire, LE67 1TU Tel. 01530 516 926 email: sales@charnwood.net website: www.charnwood.net...
-
Page 2: General Safety Rules

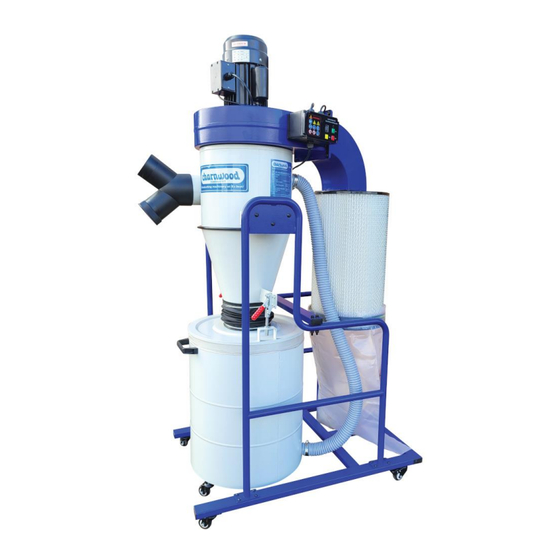

GENERAL SAFETY RULES WARNING: Do not attempt to operate the machine until you have read thoroughly and understood completely all instructions, rules, etc. contained in this manual. Failure to comply may result in accidents involving fire, electric shock, or serious personal injury. Keep this owner's manual and review frequently for continuous safe operation. - Page 3 Overview Of C300R Cyclone Dust Extractor On/Off Switch Countdown Timer Air Inlets Filter Cleaning handle Cartridge Filter Drum Lid Locking Levers Drum Level Filter Collection bag Inspection Window Collection Drum Negative Pressure Hose C300R Specification Motor Power 1500w (2hp) / 240v / 50hz...
- Page 4 Rating Description Light Trade: Suitable for professional woodworkers where the machine will not be in daily use. Mid-range machines with a heavier build and more power. Typically used by 2 or 3 people within a small business or also for the dedicated hobbyist with a larger budget. It is expected to be used up to the machines maximum limit with occasional long work periods.
- Page 5 Assembly Frame Assembly Attach the 4 Castors with mounting plates, to the Base, using 16 of the M6 x 15mm dome head bolts and washers. There are 2 lockable castors which should be fitted to the open end of the Base.
- Page 6 Drum Assembly Install 3 castors to the bottom of the collection drum, adding a thin nut to each threaded shaft. The thin nuts can be used to adjust the height of the castor. Install the handle to the side of the drum using 2 of the M8 x 20mm bolts, with washers and nyloc nuts.
- Page 7 Place the Drum Lid on top of the Drum. Then fit the Flexible hose securing with a hose clamp. Fit the second hose clamp over the flexible hose and then the Cyclone Funnel. Align the Locking levers so the threaded stud goes through the brackets on the Drum Lid.
- Page 8 Attach the 90 Degree Elbow to the Impellor Housing with Rubber Gasket in between the 2 parts. Secure it with 8 of the M8 x 16mm bolts. Mount the On/Off switch box onto 3 of the bolts just fitted. Secure with 3 of the M8 Nuts.
- Page 9 Negative Pressure Tube Assembly Place a 50mm Hose Clamp over one end of the Flexible Hose. Secure it to the inlet on the Cyclone Body. Place a 50mm Hose Clamp over the other end of the Flexible Hose. Secure it to the outlet in the Dust Collection Drum The function of the negative pressure hose is to suck the plastic bag to the...
- Page 10 Setting Up Sealing the Drum Lid The 2 red clamp levers are use to raise and lower the drum lid. When in the lowered position there needs to be a good seal between the Drum and the Drum Lid. Lower the 2 clamps and check the seal. If there is a gap, adjust the upper and lower nuts on the threaded stud to adjust the height of the lid.
- Page 11 Using The Cyclone Starting the Cyclone When connected to a power supply, the green LED will be illuminated on the control box. Press ‘On’ and wait around 15 seconds to allow the airflow to build up before producing any dust. Press ‘Off’...
- Page 12 Emptying The Filter Collection Bag Some fine dust particle will be collected in the cartridge filter collection bag. Since the bag is transparent it can be monitored easily and should be emptied when it is 50% full. Undo the bag strap and remove it. Empty or replace the collection bag.
-
Page 13: Maintenance
Maintenance Filter Cleaning To ensure the filter stays unclogged without any deterioration in performance the filter includes an internal cleaning device. Gently rotating the handle, moves the internal paddle which cleans the inside of the filter and prevents clogging. How Often Should It Be Cleaned? To maintain optimum performance, we recommend: Every time the extractor is turned off, or every 15 minutes during... -
Page 14: Troubleshooting
Your local refuse amenity will have a separate collection area for EEE goods Declaration of Conformity for CE Marking Charnwood Declare that Cyclone Dust Extractor, Model C300R Conforms with the following Directives: Machinery Directive 2006/42/EC EMC Directive 2014/30/EU And further conforms to the machinery example for which the EC type examination Certificate No. - Page 15 C300R Parts Drawing...
- Page 16 Filter Cleaning Handle Motor Capacitor 50uf,450V Remote Handset Drum Collection Bag 800 x 1075mm Updated July 2024 Charnwood Machinery Ltd, Cedar Court, Walker Road, Hilltop Industrial Estate, Bardon Hill, Leicestershire, LE67 1TU, England Tel. 01530 516 926 email: sales@charnwood.net website: www.charnwood.net...
