Breathing gas pathways, their parts and accessories are validated for use with specific sleep apnea breathing
therapy equipment, here the sleep apnea breathing therapy equipment is the Néa device.
▪
Incompatible parts or accessories can result in degraded performance.
▪
The small-bore connectors of the beathing gas pathway used must be compliant with ISO 80369-1:2018.
▪
Tubes and masks generally have a useful life of one year. For the exact duration, please refer to the accessory
manuals.

Views of the device

1 Touch screen
2 Ramp button
3 On/off button
4 Side cover
5 Air outlet
6 Air inlet grid
7 SD card slot
8 USB-C connector
9 Power connector
10 Heated tube connector
11 Side cover / tank unlock button
12 Hot plate unlock button
13 Heated humidifier 'Néa H2O' :
13a - Hot plate
13b - Tank cover
13c - Tank (overmolded)

Meaning of symbols

Néa
Manuel patient NEA Anglais

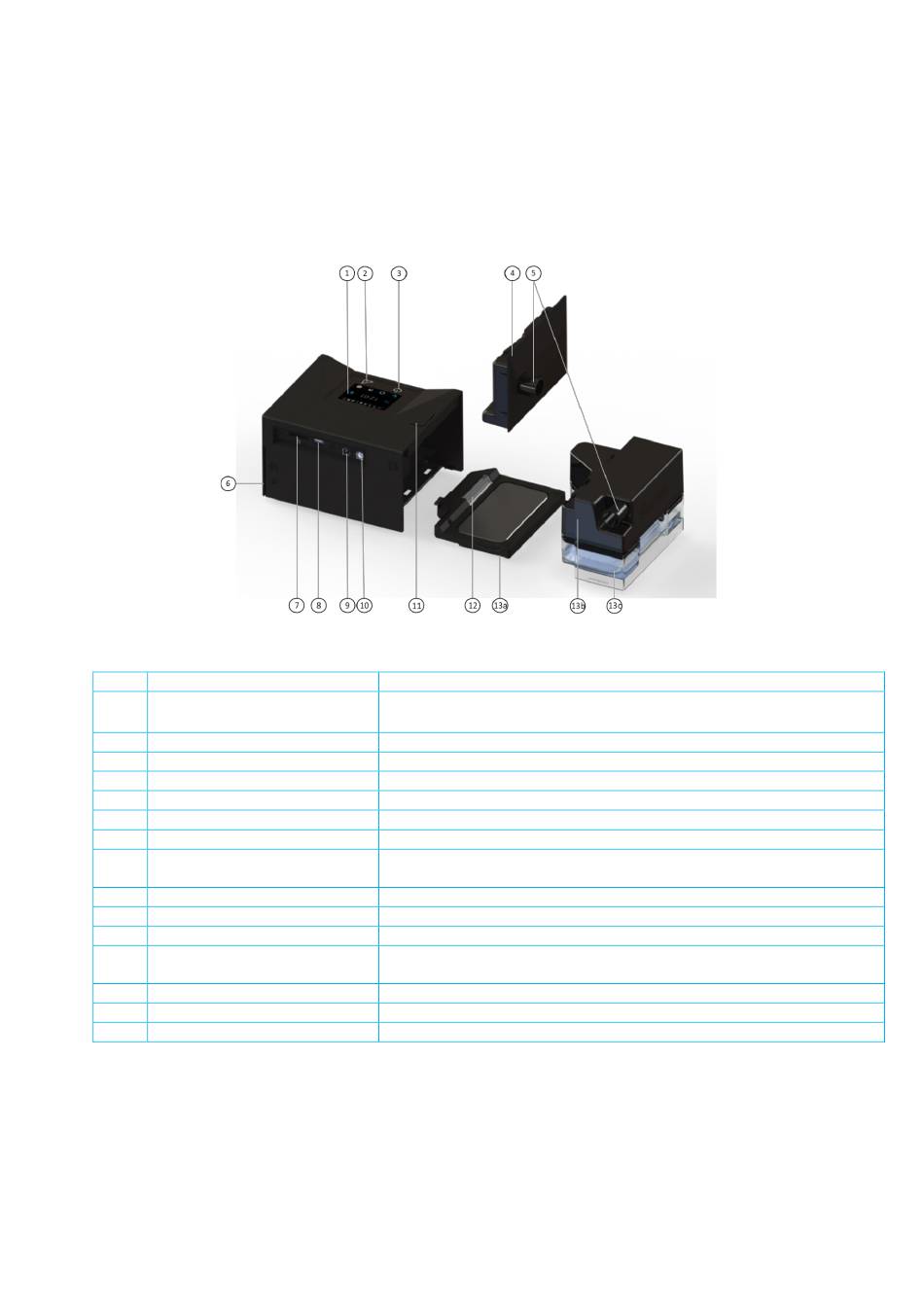

Figure 1 : Views of the device
Allows to view information and access settings.
To deactivate or activate the ramp function when the device is in
operation.
Turns the device on or off.
Used to replace the heated humidifier 'Néa H2O' (13).
Connector for connecting the tube.
Compartment for washable air inlet filter and fine filter (optional)
SD card slot.
Allows connection via USB, for use by the doctor or homecare provider.
Allows the device to be powered by its power supply or by cigarette
lighter.
For connecting the heated tube cable
To unlock the side cover or tank and detach it from the device
Button for detaching the heated plate from the device.
Used to humidify inhaled air.
Once installed, it replaces the side cover (4).
Base used to heat the water contained in the tank
Allows to close the tank
Element to fill with water
