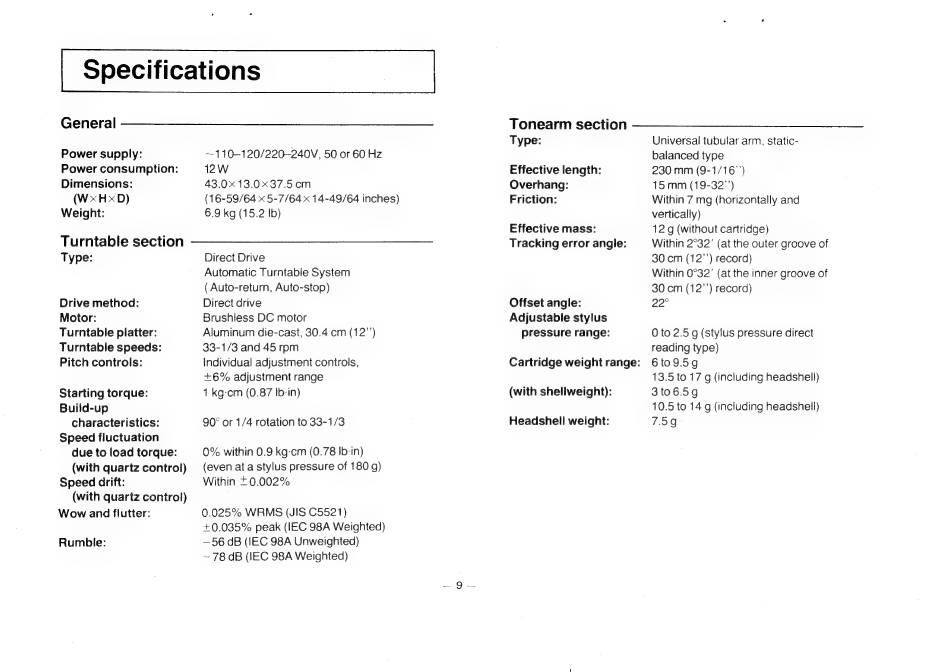

Specifications
General
Power supply:
Power consumption: 12W
Dimensions: 43.0 13.037.5cm
(WxHxD)
Weight: 6.9 kg (15.2 Ib)
Turntable section
Type: Direct Drive
Automatic Turntable System
( Auto-return, Auto-stop)
Drive method: Direct drive
Motor: Brushless DC motor
Turntable platter:
Turntable speeds:
Pitch controls:
33-1/3 and 45 rom
Individual adjustment controls,
+6% adjustment range
Starting torque: 1 kg-cm (0.87 Ib-in)
Build-up
characteristics:
Speed fluctuation
due to load torque:
90° or 1/4 rotation to 33-1/3
0% within 0.9 kg-cm (0.78 Ib-in)
(with quartz control) (even at a stylus pressure of 180 g)
Speed drift: Within =0.002%
(with quartz contro!)
Wow and flutter: 0.025% WRMS (JIS C5521)
+0.035% peak (IEC 98A Weighted)
—56 dB (IEC 98A Unweighted)
— 78 dB (IEC 98A Weighted)
Rumble:
~110-120/220-240V, 50 or 60 Hz
(16-59/64 x 5-7/64 x 14-49/64 inches)
Aluminum die-cast, 30.4 cm (12"')
Tonearm section
Type:
Effective length:
Overhang:
Friction:
Effective mass:
Tracking error angle:
Offset angle:
Adjustable stylus
pressure range:
Cartridge weight range:
(with shellweight):
Headshell weight:
Universal tubular arm, static-
balanced type
230 mm (9-1/16"')
15mm (19-32"')
Within 7 mg (horizontally and
vertically)
12 g (without cartridge)
Within 2°32' (at the outer groove of
30 cm (12"') record)
Within 0°32' (at the inner groove of
30 cm (12"') record)
22°
0 to 2.5 g (stylus pressure direct
reading type)
6 to9.5g
13.5 to 17 g (including headshell)
3to6.5g
10.5 to 14 g (including headshell)
7.59
