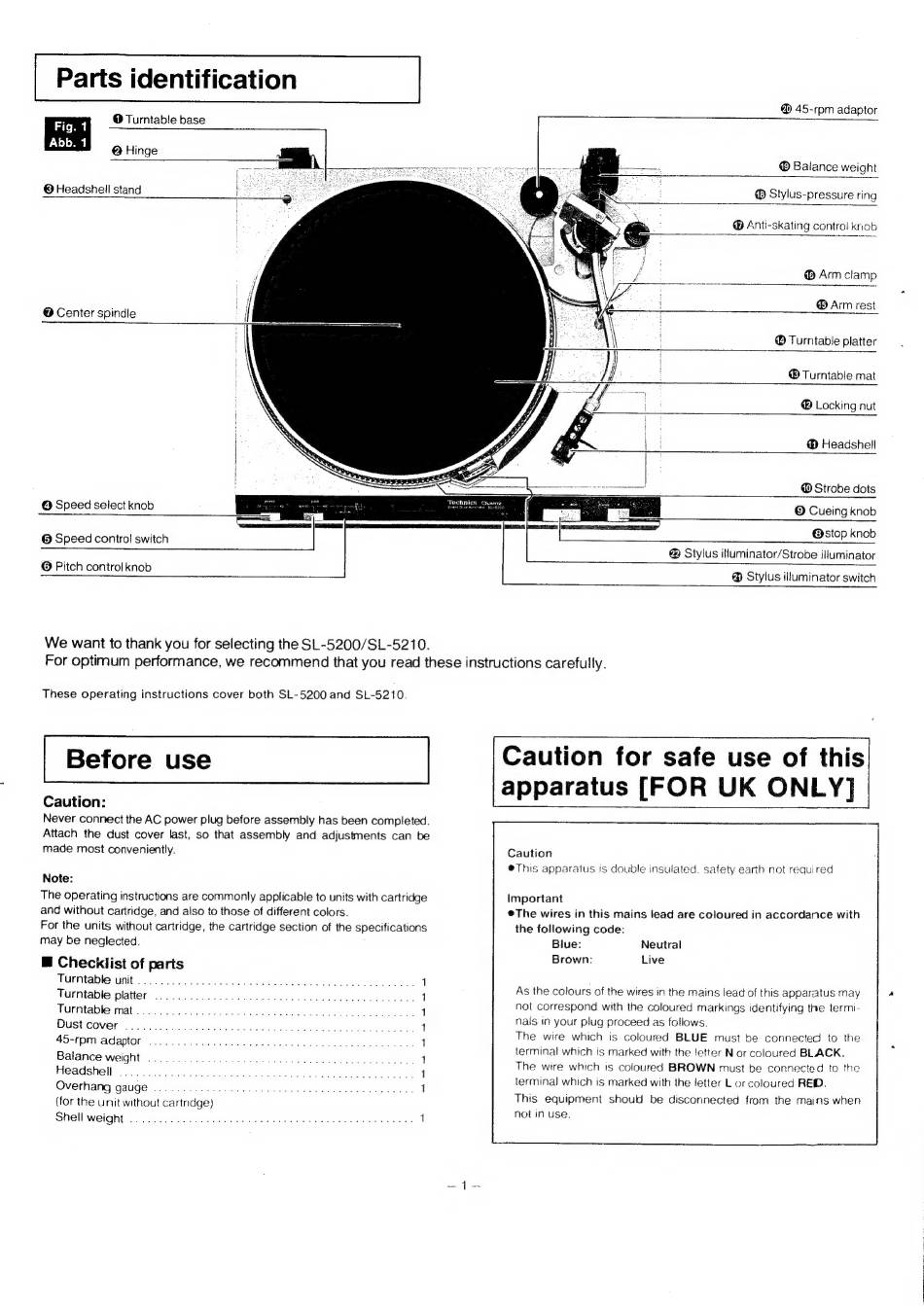

Parts identification
Fig. 1
Abb. 1
© Headshell stand
@ Turntable base
@ Hinge
@ Center spindle
@ Speed select knob
@ Speed control switch
@ Pitch control knob
We want to thank you for selecting the SL-5200/SL-5210.
@ 45-rpm adaptor
® Balance weight
® Stylus-pressure ring
® Arm clamp
® Arm rest
® Turntable platter
® Turntable mat
® Locking nut
@ Headshell
@ Strobe dots
© Cueing knob
@stop knob
® Stylus itluminator/Strobe illuminator
® Stylus illuminator switch
For optimum performance, we recommend that you read these instructions carefully.
These operating instructions cover both SL-5200 and SL-5210
Before use
Caution:
Never connect the AC power plug before assembly has been completed.
Attach the dust cover last, so that assembly and adjustments can be
made most conveniently.
Note:
The operating instructions are commonly applicable to units with cartridge
and without cartridge, and also to those of different colors.
For the units without cartridge, the cartridge section of the specifications
may be neglected.
@ Checklist of parts
Turntable unit 00000.
c cece e neces 1
Turntable platter
Turntable mat 000.0 ccc eee
Dust cover
45-rpm adaptor
Balance weight
Headshell
Overhang gauge
(for the unit without cartridge)
Shell weight
Caution for safe use of this
apparatus [FOR UK ONLY]
Caution
@This apparatus Is double insulated. safety earth not required
Important
©The wires in this mains lead are coloured in accordance with
the following code:
Biue:
Brown:
Neutral
Live
As the colours of the wires in the mains lead of this apparatus may
not correspond with the coloured markings identifying the termi-
nals in your plug proceed as foliows.
The wire which is coloured BLUE must be connected to the
terminal which is marked with the letter N or coloured BLACK.
The wire which 1s coloured BROWN must be connected to the
terminal which is marked with the letter L or coloured RED.
This equipment shoud be disconnected from the mains when
not in use.
