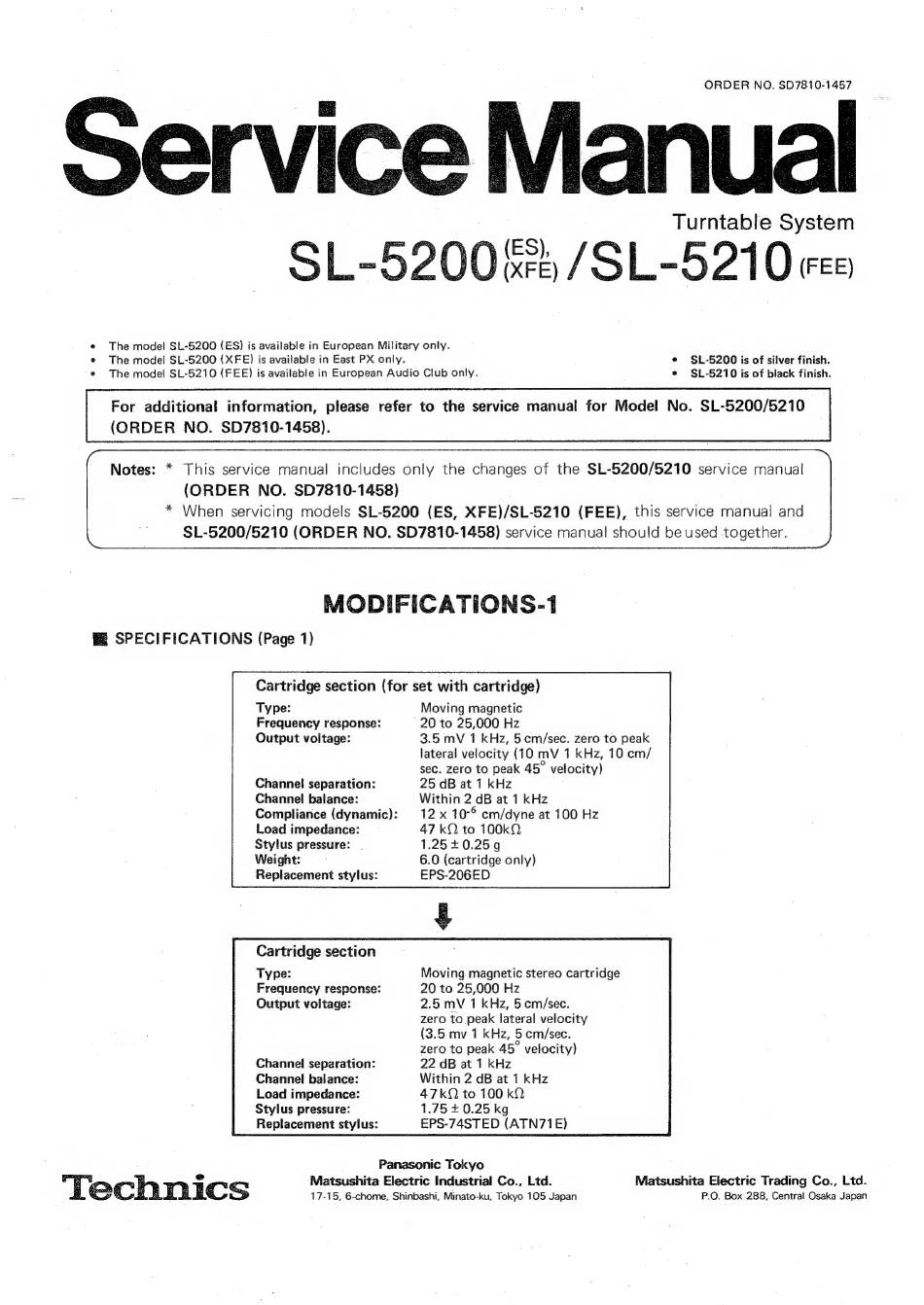

Technics SL-5200ES Service Manual

ORDER NO. SD7810-1457

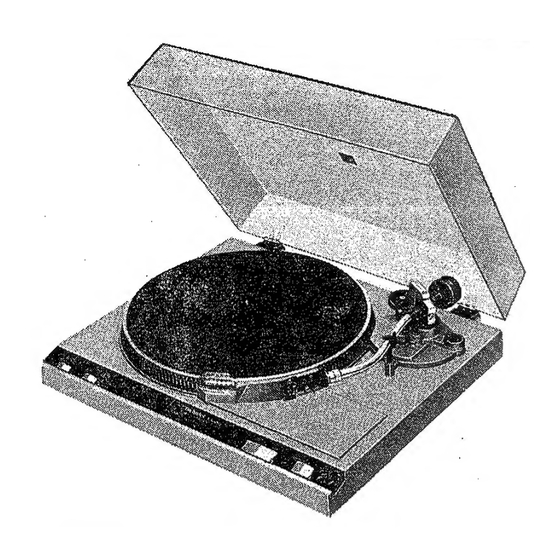

Turntable System
SL-5200 ket /SL-5210 cree
e The model SL-5200 (ES) is available in European Military only.
The model SL-5200 (XfFE) is available in East PX only. ® $§L-5200 is of silver finish.
® The model SL-5210 (FEE) is available in European Audio Club only. e SL-5210 is of black finish.
For additional information, please refer to the service manual for Model No. SL-5200/5210
(ORDER NO. SD7810-1458).
Notes: * This service manual includes only the changes of the SL-5200/5210 service manual
(ORDER NO. $D7810-1458)
* When servicing models SL-5200 (ES, XFE)/SL-5210 (FEE), this service manual and
SL-5200/5210 (ORDER NO. SD7810-1458) service manual should be used together.
MODIFICATIONS-1
f SPECIFICATIONS (Page 1)
Cartridge section (for set with cartridge)
Type: Moving magnetic
Frequency response: 20 to 25,000 Hz
Output voitage: 3.5 mV 1 kHz, 5 cm/sec. zero to peak
lateral velocity (10 mV 1 kHz, 10 cm/
sec. zero to peak 45° velocity)
Channel separation: 25 dB at 1 kHz
Channel balance: Within 2 dB at 1 kHz
Compliance (dynamic): 12 x 10° cm/dyne at 100 Hz
Load impedance: 47 kD, to 100k),
Stylus pressure: 1.2540.25g
Weight: 6.0 (cartridge only)
Replacement stylus: EPS-206ED
Cartridge section
Type: Moving magnetic stereo cartridge
Frequency response: 20 to 25,000 Hz
Output voltage: 2.5 mV 1 kHz, 5.cm/sec.
zero to peak lateral velocity
(3.5 mv 1 kHz, 5 cm/sec.
zero to peak 45° velocity)
Channel separation: 22 dB at 1 kHz
Channel balance: Within 2 dB at 1 kHz
Load impedance: 47kQ to 100 kO.
Stylus pressure: 1.75 + 0.25 kg
Replacement stylus: EPS-74STED (ATN71E)
