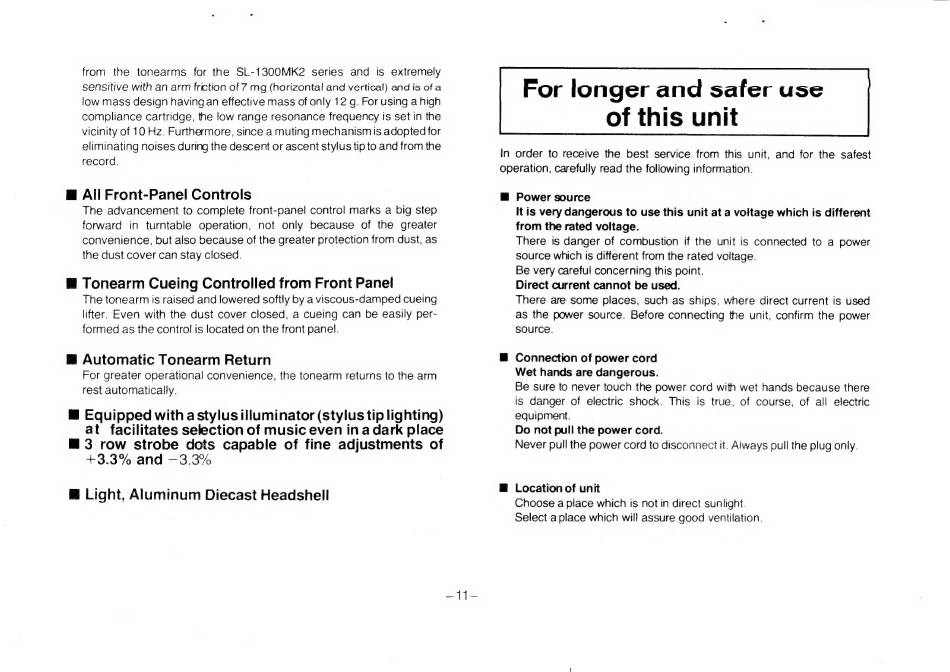

Technics SL-5200 Operating Instructions Manual page 22

from the tonearms for the SL-1300MK2 series and is extremely
sensitive with an arm friction of 7 mg (horizontal and vertical) and is ofa
low mass design having an effective mass of only 12 g. For using a high
compliance cartridge, the low range resonance frequency is set in the
vicinity of 10 Hz. Furthermore, since a muting mechanism is adopted for
eliminating noises during the descent or ascent stylus tip to and from the
record.
@ All Front-Panel Controls
The advancement to complete front-panel control marks a big step
forward in turntable operation, not only because of the greater
convenience, but also because of the greater protection from dust, as
the dust cover can stay closed.
@ Tonearm Cueing Controlled from Front Panel
The tonearm is raised and lowered softly by a viscous-damped cueing
lifter. Even with the dust cover closed, a cueing can be easily per-
formed as the control is located on the front panel.
@ Automatic Tonearm Return
For greater operational convenience, the tonearm returns to the arm
rest automatically.
@ Equipped with a stylus illuminator (stylus tip lighting)
at facilitates selection of music even ina dark place
@ 3 row strobe dots capable of fine adjustments of
+3.3% and —3.3%
@ Light, Aluminum Diecast Headshell
at fe
For longer and safer use
of this unit
In order to receive the best service from this unit, and for the safest
operation, carefully read the following information.
@ Power source
It is very dangerous to use this unit at a voltage which is different
from the rated voltage.
There is danger of combustion if the unit is connected to a power
source which is different from the rated voltage.
Be very careful concerning this point.
Direct current cannot be used.
There are some places, such as ships, where direct current is used
as the power source. Before connecting the unit, confirm the power
source.
@ Connection of power cord
Wet hands are dangerous.
Be sure to never touch the power cord with wet hands because there
is danger of electric shock. This is true, of course, of all electric
equipment.
Do not pull the power cord.
Never pull the power cord to disconnect it. Always pull the plug only.
@ Location of unit
Choose a place which is not in direct sunlight.
Select a place which will assure good ventilation.
