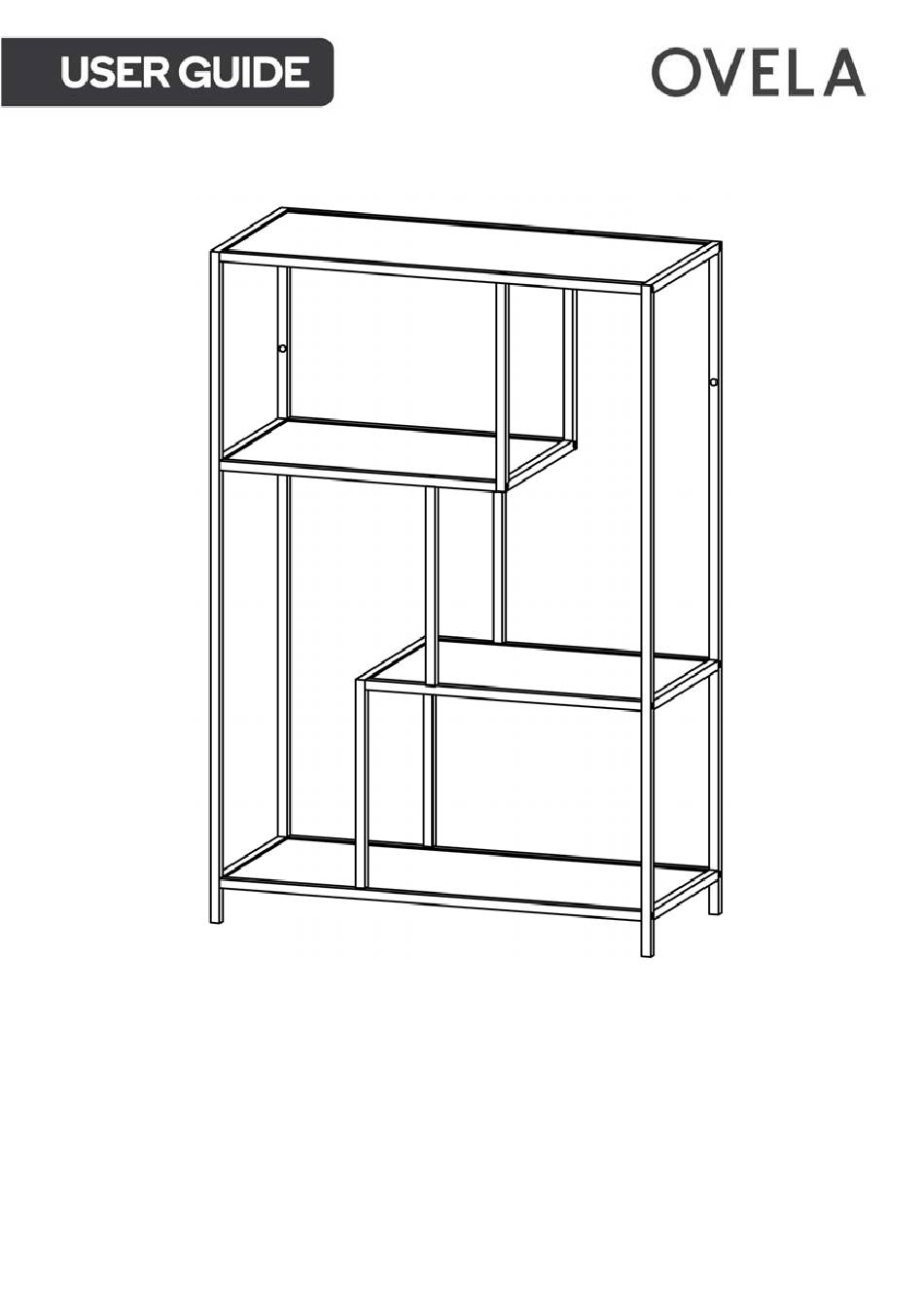

- Page 1 SEAFORD 3 SHELF BOOKCASE OVSEAF3SBA...
- Page 3 COMPONENTS Lay all components out on a clean floor and ensure all parts are included. If any pieces are missing, check all packaging thoroughly, then contact help.Kogan.com for assistance. 30min 2 people required Screwdriver required...
- Page 4 1 (x1) 2 (x1) 3 (x1) 4 (x1) 5 (x1) 6 (x1) 7 (x1) 8 (x4) 9 (x2) 10 (x1) 11 (x2) 12 (x) A Screw (M4x12mm) (x20) B Screw (M4x15mm) (x24) C 4mm Allen key (x1)
- Page 5 ASSEMBLY Step 1: B Screw (M4x15mm) (x8) C 4mm Allen key...
- Page 6 Step 2: B Screw (M4x15mm) (x8) C 4mm Allen key C x 1 B x 8...
- Page 7 Step 3: B Screw (M4x15mm) (x8) C 4mm Allen key C x 1 B x 8...
- Page 8 Step 4: Tighten all the M4x15mm Screws (B) using the Allen key. 100% (x24)
- Page 9 Step 5: XX=YY A Screw (M4x12mm) (x20)
- Page 10 TOPPLING FURNITURE WARNING: • It is strongly recommended that this product is permanently fixed to the wall. • The pack only contains screws for assembling product. • Please seek professional advice if you are in doubt of what hardware to use. •...
- Page 11 Completed!
- Page 12 Need more information? We hope that this user guide has given you the assistance needed for a simple set-up. For the most up-to-date guide for your product, as well as any additional assistance you may require, head online to help.kogan.com...
