InFocus IN3114 User Manual page 6

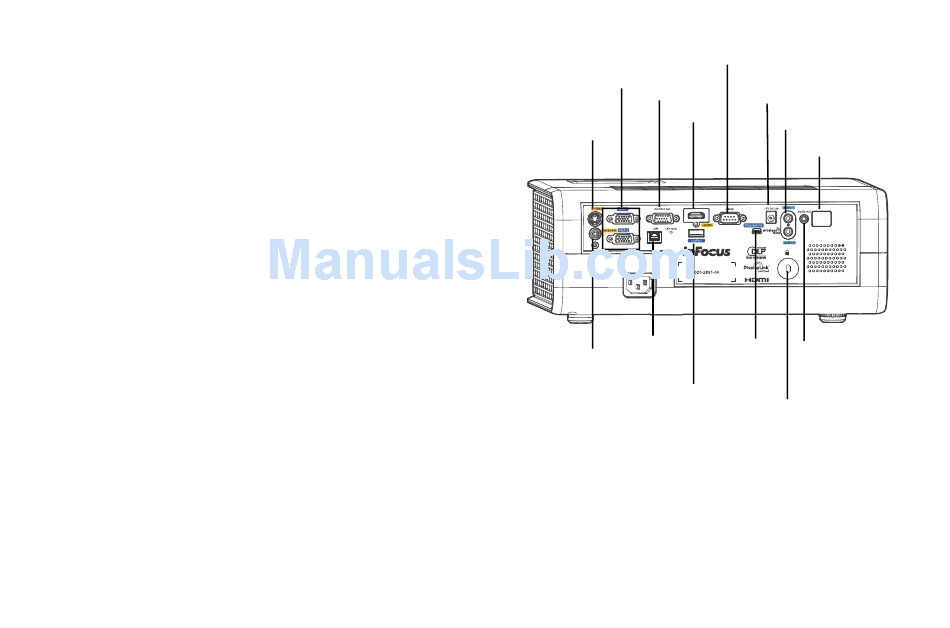

Connector panel
The projector provides both computer and video connection options,
including:
• VGA computer (2)
• HDMI (1)
• S-video
• Composite video
• Separate audio inputs for video and computer
• USB DisplayLink connector, for computer audio/video input. This
USB connection also provides power out for the DisplayLink Wireless
Adapter (and mouse control when used with the optional Commander
2 remote).
The projector also provides the following connectors:
• Monitor out, to provide an image on your desktop computer as well as
on the projection screen.
• LAN port for network control and web server.
• LitePort, for connecting a USB flash drive containing JPEG images.
• Audio out, to provide sound for external speakers.
• 5 volt DC output
• RS-232 connector for serial control. Command control codes are
available on our support website at www.infocus.com/support.
NOTE: Only VGA video is sent to the Monitor out connector.
5 volt DC output
The coaxial 6.4mm x 2.2mm jack provides a constant 5 volt, 2 amp DC
output when the projector is on, and will also provide power when the
projector is powered off, if Network and DisplayLink items in the Always-
On Functions submenu are set to Yes. It is designed to provide power to an
InFocus LiteShow II wireless device or InFocus DisplayLink Extender
device.
VGA
Monitor out
S-video
LAN
Composite
video
5
RS-232
5V DC
output
HDMI
Audio in
IR Sensor
Displaylink
Audio out
connector
Liteport
Security lock
