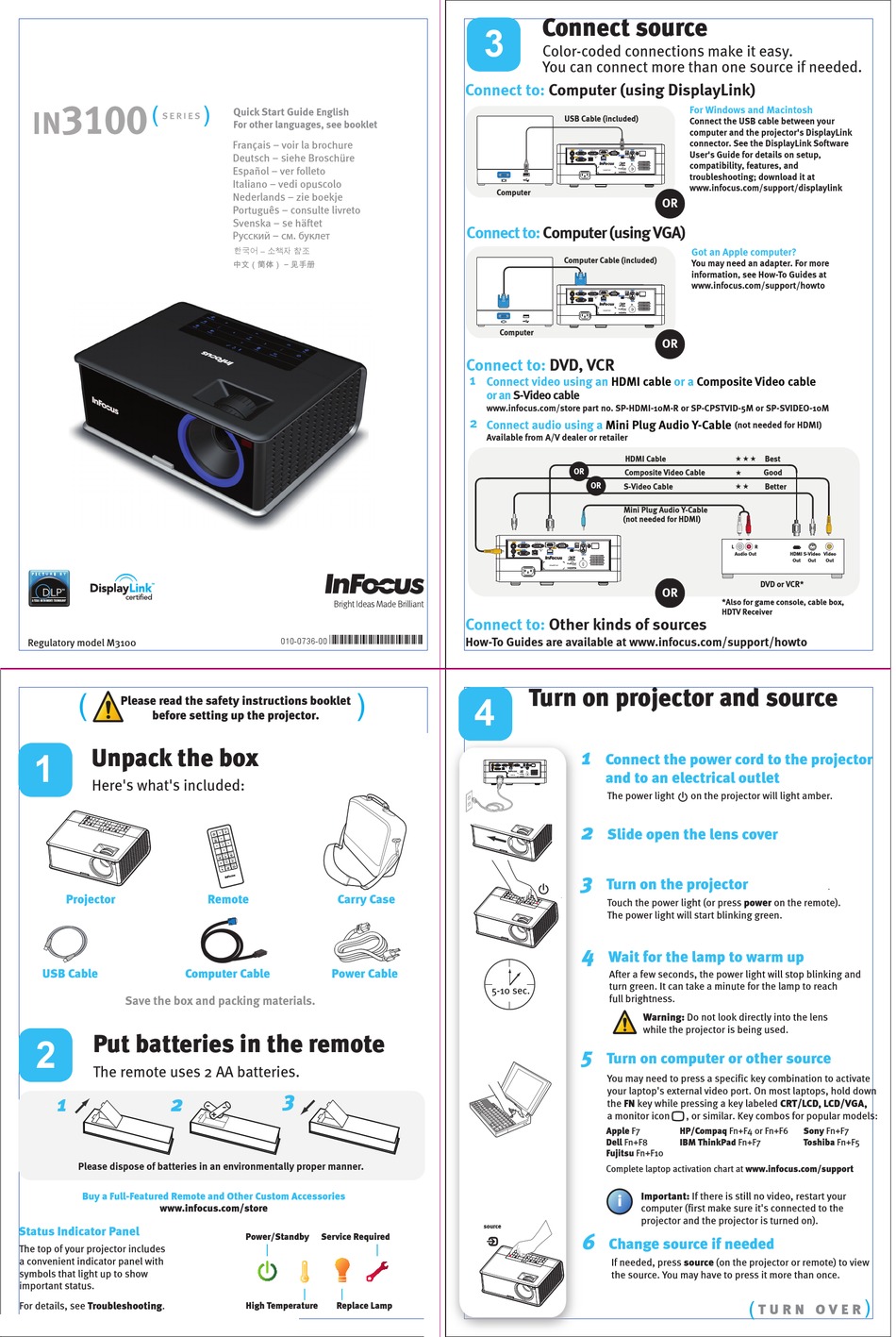

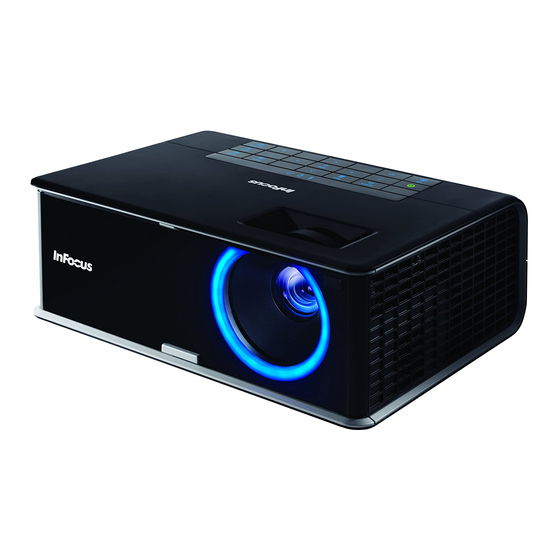

InFocus IN3114 Quick Start Manual

Regulatory model M3100
Please read the safety instructions booklet
!
before setting up the projector.
Unpack the box
1
Here's what's included:
Projector
USB Cable Computer Cable
Save the box and packing materials.
Put batteries in the remote
2
The remote uses 2 AA batteries.
1 2
Please dispose of batteries in an environmentally proper manner.
Buy a Full-Featured Remote and Other Custom Accessories
www.infocus.com/store
Status Indicator Panel
The top of your projector includes
a convenient indicator panel with
symbols that light up to show
important status.
For details, see Troubleshooting.
Quick Start Guide English
For other languages, see booklet
Français – voir la brochure
Deutsch – siehe Broschüre
Español – ver folleto
Italiano – vedi opuscolo
Nederlands – zie boekje
Português – consulte livreto
Svenska – se häftet
Русский – см. буклет
한국어 – 소책자 참조
–
*010-0736-00*
010-0736-00
Remote Carry Case
Power Cable
3
Power/Standby Service Required
High Temperature Replace Lamp
Connect source
3
Color-coded connections make it easy.
You can connect more than one source if needed.
Connect to: Computer (using DisplayLink)
USB Cable (included)
Computer
Connect to: Computer (using VGA)
Computer Cable (included)
Computer
Connect to: DVD, VCR
1
Connect video using an HDMI cable
or an S-Video cable
www.infocus.com/store part no. SP-HDMI-10M-R or SP-CPSTVID-5M or SP-SVIDEO-10M
2
Connect audio using a Mini Plug Audio Y-Cable
Available from A/V dealer or retailer
HDMI Cable
OR
Composite Video Cable
OR
S-Video Cable
Mini Plug Audio Y-Cable
(not needed for HDMI)
Connect to: Other kinds of sources
How-To Guides are available at www.infocus.com/support/howto
Turn on projector and source
4
1
Connect the power cord to the projector
and to an electrical outlet
The power light
2
Slide open the lens cover
3

Turn on the projector

Touch the power light (or press power on the remote).
The power light will start blinking green.
4
Wait for the lamp to warm up
After a few seconds, the power light will stop blinking and
turn green. It can take a minute for the lamp to reach
5-10 sec.
full brightness.
5
Turn on computer or other source
You may need to press a specific key combination to activate
your laptop's external video port. On most laptops, hold down
the FN key while pressing a key labeled CRT/LCD, LCD/VGA,
a monitor icon
Apple F7
Dell Fn+F8
Fujitsu Fn+F10
Complete laptop activation chart at www.infocus.com/support
i
source
6
Change source if needed
If needed, press source (on the projector or remote) to view
the source. You may have to press it more than once.
For Windows and Macintosh
Connect the USB cable between your
computer and the projector's DisplayLink
connector. See the DisplayLink Software
User's Guide for details on setup,
compatibility, features, and
troubleshooting; download it at
www.infocus.com/support/displaylink
OR
Got an Apple computer?
You may need an adapter. For more
information, see How-To Guides at
www.infocus.com/support/howto
OR
or a Composite Video cable
(not needed for HDMI)
 Best
Good

Better

L R
Audio Out HDMI S-Video
Out Out
DVD or VCR*
OR
*Also for game console, cable box,
HDTV Receiver
on the projector will light amber.
Warning: Do not look directly into the lens
while the projector is being used.
, or similar. Key combos for popular models:
HP/Compaq Fn+F4 or Fn+F6 Sony Fn+F7
IBM ThinkPad Fn+F7 Toshiba Fn+F5
Important: If there is still no video, restart your
computer (first make sure it's connected to the
projector and the projector is turned on).
T U R N O V E R
Video
Out
