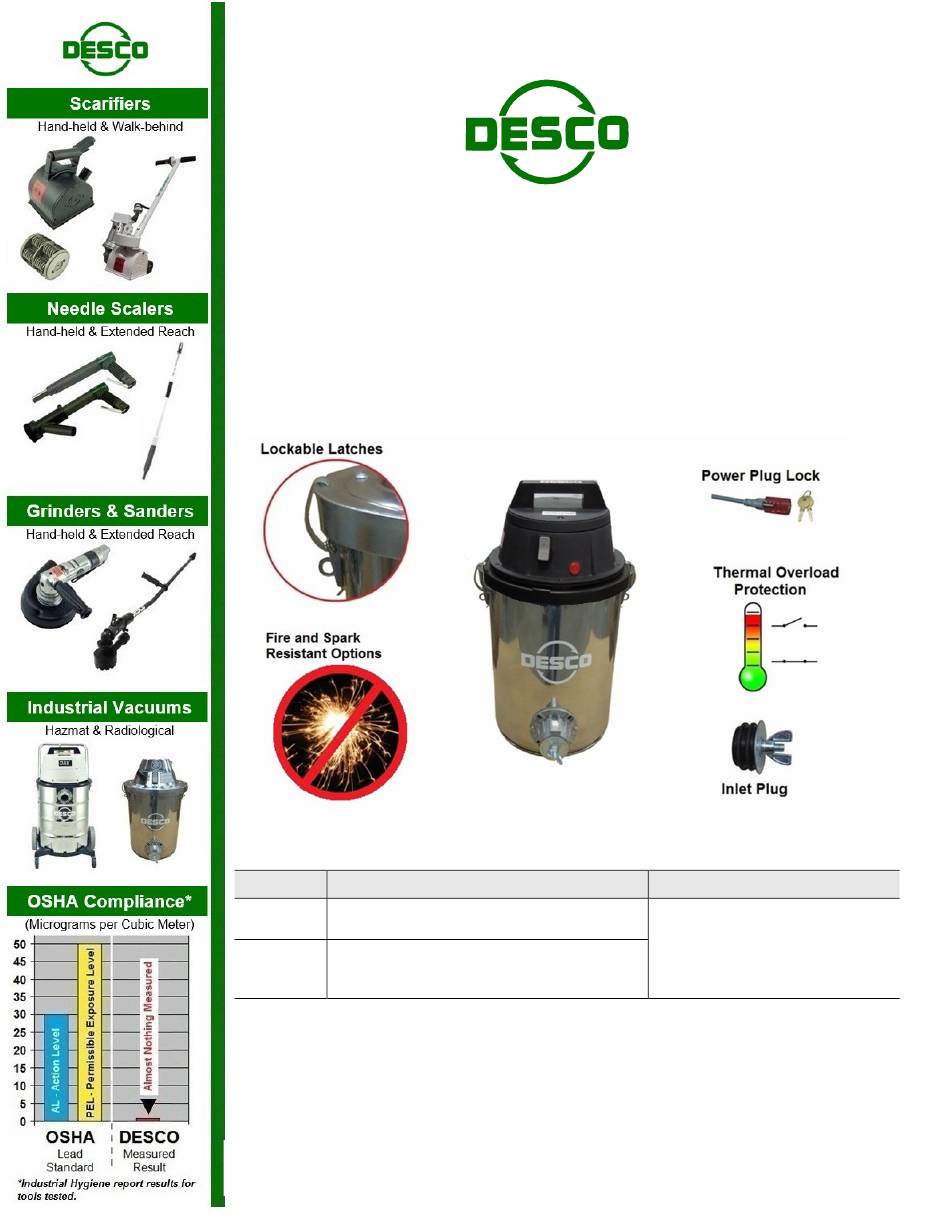

340.9031

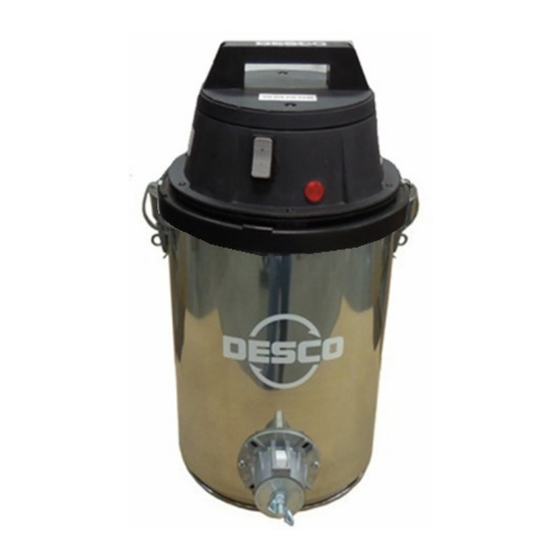

RP-Vac I, 6 Gallon, HEPA, Stainless Steel
Tank, and lockable latches.
340.9041
RP-Vac II, 6 Gallon, HEPA, Stainless Steel
Tank, lockable latches, thermal overload
protection, power plug lock and inlet plug.
23031 Arroyo Vista ● Rancho Santa Margarita, CA 92688
949.858.7400 ● 949.858.9141 fax ● 800.337.2648 toll free
www.descomfg.com ● info@descomfg.com
4-Desco_Vacuum-Electric-06Gal-RP-VAC-HEPA-Composite-Feb2023_Manual.PDF
February 2023
RP-VAC
Radiological Protection Vacuum
RP-VAC Configurations
Description
DESCO Mfg. Co., Inc.
with HEPA Filtration
Accessories Furnished
10 hose, initial filters & bags.
Advertisement
Table of Contents
Related Manuals for Desco RP-VAC 340.9031
Summary of Contents for Desco RP-VAC 340.9031
- Page 1 RP-Vac II, 6 Gallon, HEPA, Stainless Steel Tank, lockable latches, thermal overload protection, power plug lock and inlet plug. DESCO Mfg. Co., Inc. 23031 Arroyo Vista ● Rancho Santa Margarita, CA 92688 949.858.7400 ● 949.858.9141 fax ● 800.337.2648 toll free www.descomfg.com ●...
-
Page 2: Table Of Contents
Contents 1.0 GENERAL INFORMATION ......................1 1.1 I ........................... 1 NTRODUCTION 1.2 T ....................... 1 ECHNICAL PECIFICATIONS 1.3 A ..........................1 CCESSORIES 1.4 C .......................... 2 ONSUMABLES 1.5 P ................. 3 ROVISIONING OF ACUUM ONSUMABLES 1.6 C ................3 RITICAL ILTRATION AND ACUUM FFICIENCY... -
Page 3: General Information
Innovative Solutions 1.0 General Information Introduction This manual is furnished with each new DESCO RP-VAC. This provides the necessary operating and preventive maintenance instructions. Operators must read and understand this manual before operating or servicing this machine. This machine was designed to give you excellent performance and efficiency. For best results and minimal cost, please follow the general guidelines below: ... -
Page 4: Consumables
DESCO Innovative Solutions Consumables Image Part Description (Pictured in assembly sequence) 340.110025 HEPA Filter 340.110027 Pre-Filter Sleeve 340.805041 Cloth Bag Filter Paper Filter Protector 340.761177PKG (10 pk) 340.384003PKG Collection Bag (10 pk) Liner/Disposal Bag 340.802206PKG (10 pk) (Optional) Page 2 RP-VAC I &... -
Page 5: Provisioning Of Vacuum Consumables
DESCO Innovative Solutions Provisioning of Vacuum Consumables Below are guidelines designed to give an idea of how many consumable items should be on hand to keep a vacuum system running efficiently. Actual consumable requirements vary widely due to the number of variables involved, including: tank size, debris volume, and particle size. -
Page 6: Safety
DESCO Innovative Solutions 2.0 Safety PLEASE READ AND FOLLOW ALL WARNINGS Read Operating Instructions Always become familiar with all the instructions and warnings before operating any machine or power tool. Hazardous Material and Safety Safety is your primary concern when working with or near hazardous material (HAZMAT). -
Page 7: Warning - Reduce Risk Of Personal Injury
DESCO Innovative Solutions WARNING – Reduce Risk of Personal Injury Use only as described in this manual. Use only manufacturer’s recommended attachments. Do not use with damaged cord or plug. If appliance is not working as it should, has been dropped, damaged, left outdoors, or dropped into water, return it to a service center. -
Page 8: Operating Instructions
DESCO Innovative Solutions 3.0 Operating Instructions Pre-Operation 3.1.1 Inspection Physical Inspection – Carefully inspect the vacuum head and tank for physical damage that would affect safety or performance. For example, inspect: 1) tank for punctures, 2) head/tank gasket for proper seal, 3) tank latches are securely holding vacuum head on tank. -
Page 9: Operation
DESCO Innovative Solutions Operation 3.2.1 Power On/Off Power to the vacuum is controlled with a rocker type switch. Select the ON or OFF status by pressing the corresponding part of the switch as illustrated below. 3.2.2 Power Sequence Note: This paragraph applies only when the vacuum is used in conjunction with a tool with a dust collection system. -
Page 10: Maintenance
Loss of vacuum air flow Filter(s) clogged Check & replace filters as needed. See paragraph 1.7 for further information. Other malfunction Contact your Desco representative for evaluation and repair assistance. Motor will not run No power Check power source: 1) insure... -
Page 11: Schematics
DESCO Innovative Solutions 6.0 Schematics Vacuum Head Assembly Page 9 RP-VAC I & II – Radiological Protection Vacuum, w/HEPA February 2023... - Page 12 DESCO Innovative Solutions Vacuum Head Assembly – Cont’d. Item Part No. Qty. Description 340.110025 Filter-HEPA 340.110027 Prefilter Sleeve 340.290017 Molded Vac Mtr Gasket 340.290031 Lid Gasket 294/6 Diecut 340.290032 Dome Seal 296 340.380001-4 Vac Motor 120V (ECM) w/ Wires 340.380005 Carbon Brush Replacement (ECM) 340.380028...
-
Page 13: Tank Assembly
DESCO Innovative Solutions Tank Assembly Part Description 3 550.390002 NSS, see item 23 4 550.390001 NSS, see item 23 5 550.712824 SCR-MC 10-24 X .75 TRUSS HD STL ZINC 9 550.712638 NUT HEX 10-24 SS NYLOC 10 550.712764 WSR #10 SS 11 550.711503...
