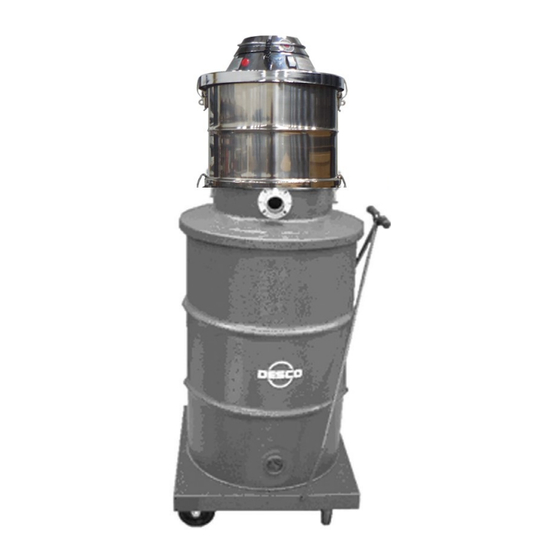

15-30-55 Gallon Electric Vacuums
Part
340.39105.15
15 Gal, Stainless Steel
341.839105.15
15 Gal, Stainless Steel
342.839105.15
15 Gal, Stainless Steel
340.39105.30
30 Gal, Steel, Painted
341.839105.30
30 Gal, Steel, Painted
342.839105.30
30 Gal, Steel, Painted
340.39105.55
55 Gal, Steel, Painted
341.839105.55
55 Gal, Steel, Painted
342.839105.55
55 Gal, Steel, Painted
23031 Arroyo Vista ● Rancho Santa Margarita, CA 92688
949.858.7400 ● 949.858.9141 fax ● 800.337.2648 toll free
www.descomfg.com ● info@descomfg.com
4-Desco_Vacuum-Electric-15-30-55Gal-RPvacHEPA-Dec2023_Manual.PDF
December 2023
RP-Vac II
Wet/Dry, HEPA, and Wet/Dry w/HEPA
RP-VAC Vacuum Configurations
Tank
Filtration
DESCO Mfg. Co., Inc.
Pickup
None
Wet or Dry (no filter)
HEPA
Dry only
HEPA
Wet or Dry w/HEPA
None
Wet or Dry (no filter)
HEPA
Dry only
HEPA
Wet or Dry w/HEPA
None
Wet or Dry (no filter)
HEPA
Dry only
HEPA
Wet or Dry
Advertisement
Table of Contents
Related Manuals for Desco RP-Vac II
Summary of Contents for Desco RP-Vac II

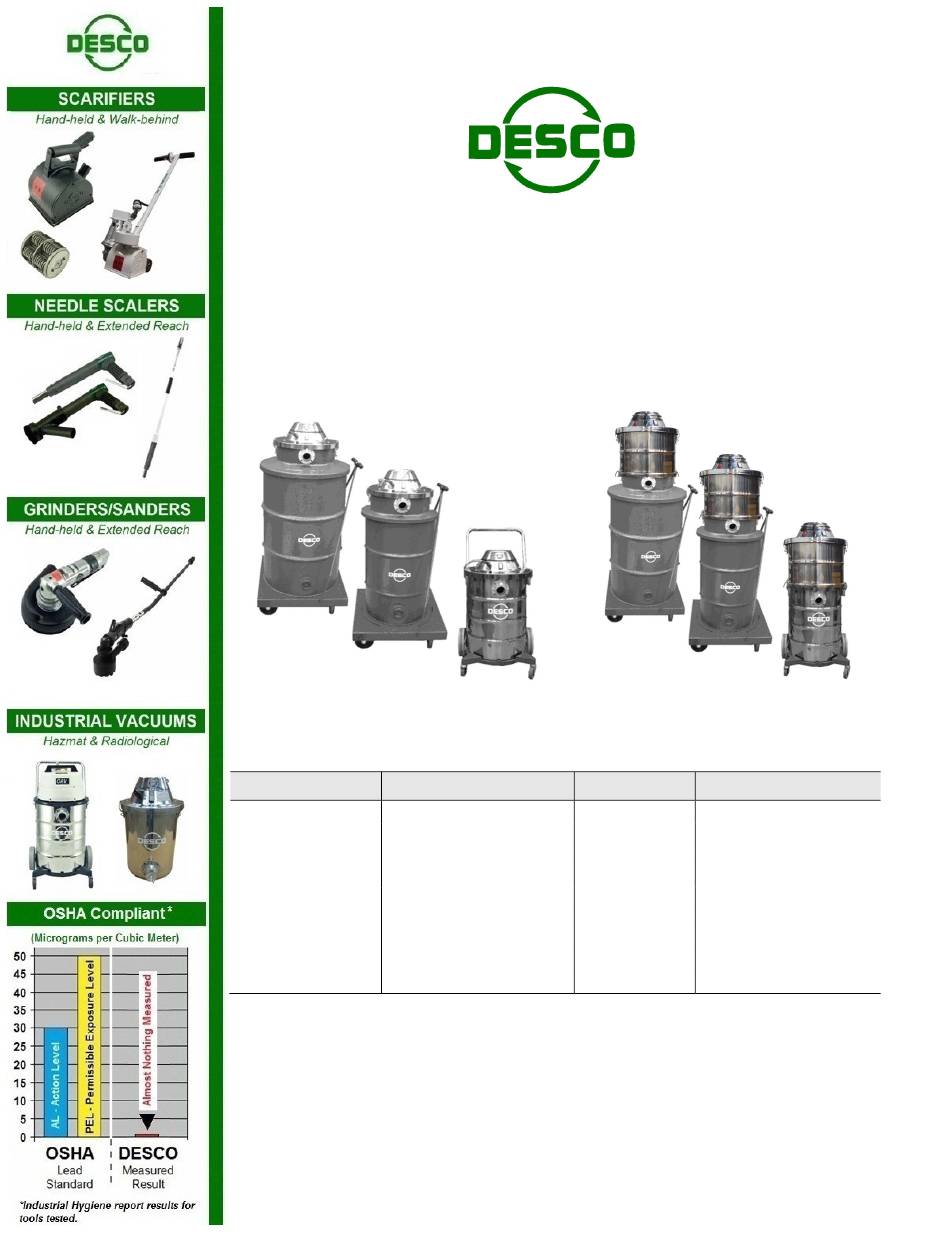

- Page 1 55 Gal, Steel, Painted HEPA Dry only 342.839105.55 55 Gal, Steel, Painted HEPA Wet or Dry DESCO Mfg. Co., Inc. 23031 Arroyo Vista ● Rancho Santa Margarita, CA 92688 949.858.7400 ● 949.858.9141 fax ● 800.337.2648 toll free www.descomfg.com ● info@descomfg.com 4-Desco_Vacuum-Electric-15-30-55Gal-RPvacHEPA-Dec2023_Manual.PDF December 2023...
-
Page 2: Table Of Contents
Contents 1.0 GENERAL INFORMATION ......................1 1.1 I ........................... 1 NTRODUCTION 1.2 T ....................... 1 ECHNICAL PECIFICATIONS 1.3 A ..........................1 CCESSORIES 1.4 C ........................2 ONFIGURATIONS 1.5 C .......................... 3 ONSUMABLES 1.6 P ................. 4 ROVISIONING OF ACUUM ONSUMABLES 1.7 C ................ -
Page 3: General Information
Innovative Solutions 1.0 General Information Introduction This manual is furnished with each new DESCO Radiological Protection Vacuum (RP-VAC). This provides the necessary operating and preventive maintenance instructions. Operators must read and understand this manual before operating or servicing this machine. -
Page 4: Configurations
3. Wet/Dry w/filter Wet or Dry Physical Configuration 1. Wet/Dry 2. Critical Filtration 3. Wet/Dry w/Filter Pictured w/Float Ball Shut-off Pictured w/HEPA filter Pictured w/Ball shut-off & Filter RP-Vac II – 15-30-55 Gallon, Wet/Dry, HEPA, and Wet/Dry w/HEPA Page 2 December 2023... -
Page 5: Consumables
Drum Liner (Optional) (Optional, dry only) 15 gal – 340.760598PKG (10 pk) 15 gal W/D-HEPA – n/a 30 gal – n/a 55 gal – n/a Collection Bag RP-Vac II – 15-30-55 Gallon, Wet/Dry, HEPA, and Wet/Dry w/HEPA Page 3 December 2023... -
Page 6: Provisioning Of Vacuum Consumables
Change when compromised: punctured, visibly contaminated or air flow is restricted. Always change. Never clean and reuse. When replaced, stages 1, 2, 3 and 4 should also be replaced. RP-Vac II – 15-30-55 Gallon, Wet/Dry, HEPA, and Wet/Dry w/HEPA Page 4 December 2023... -
Page 7: Safety
Risk of explosion is possible if operated near explosive materials or vapors. Do not operate this equipment near flammable materials such as solvents, thinners, fuels or grain dust. RP-Vac II – 15-30-55 Gallon, Wet/Dry, HEPA, and Wet/Dry w/HEPA Page 5 December 2023... -
Page 8: Warning - Reduce Risk Of Fire, Electric Shock, Or Injury
Do not use to pick up flammable or combustible liquids such as gasoline or use in areas where they may be present. Connect to a properly grounded outlet only. See grounding instructions. SAVE THESE INSTRUCTIONS RP-Vac II – 15-30-55 Gallon, Wet/Dry, HEPA, and Wet/Dry w/HEPA Page 6 December 2023... -
Page 9: Operating Instructions
No adapter should be used with this appliance. RP-Vac II – 15-30-55 Gallon, Wet/Dry, HEPA, and Wet/Dry w/HEPA Page 7 December 2023... -
Page 10: Operation
(CFM). The key factor affecting airflow is filter maintenance. Dirty filters reduce air flow. See paragraph 1.7 for filtration stages and maintenance steps. RP-Vac II – 15-30-55 Gallon, Wet/Dry, HEPA, and Wet/Dry w/HEPA Page 8 December 2023... -
Page 11: Maintenance
Loss of vacuum air flow Filter(s) clogged Check & replace filters as needed. See paragraph 1.7 for further information. Other malfunction Contact your Desco representative for evaluation and repair assistance. RP-Vac II – 15-30-55 Gallon, Wet/Dry, HEPA, and Wet/Dry w/HEPA Page 9 December 2023... -
Page 12: Schematics
340.805037 Pkg Drum Liner 30 Gallon 340.805046 Pkg Drum Liner 55 Gallon 340.C90007-80 30 Gallon Drum 340.900015 55 Gallon Drum 340.900048 Dolly Cart Comp 30/55 Gallon RP-Vac II – 15-30-55 Gallon, Wet/Dry, HEPA, and Wet/Dry w/HEPA Page 10 December 2023... -
Page 13: Lid Assembly - Hepa Configuration
DESCO Innovative Solutions Lid Assembly – HEPA Configuration RP-Vac II – 15-30-55 Gallon, Wet/Dry, HEPA, and Wet/Dry w/HEPA Page 11 December 2023... - Page 14 GASKET 3.5 X 4.5 X .37 340.831626 GASKET 4 X 7.37 X .250 340.831652 SPACER-.264 X .344 X .750 ALM 340.832070 CONNECTOR 340.833237 STRAIN RELIEF W/ NUT RP-Vac II – 15-30-55 Gallon, Wet/Dry, HEPA, and Wet/Dry w/HEPA Page 12 December 2023...
-
Page 15: Lid Assembly - Wet/Dry Configuration
DESCO Innovative Solutions Lid Assembly – Wet/Dry Configuration RP-Vac II – 15-30-55 Gallon, Wet/Dry, HEPA, and Wet/Dry w/HEPA Page 13 December 2023... - Page 16 Nut-Hex 1/4-20 SS Nyloc 340.711505 WSR-Flat 1/4 340.711803 Cotter Pin 340.760904 Snub Bushing 340.715069 Decal, Check Filters 340.740088 Vac Light 340.740116 Ground Wire 340.760212 Vac Sensor Tube RP-Vac II – 15-30-55 Gallon, Wet/Dry, HEPA, and Wet/Dry w/HEPA Page 14 December 2023...
-
Page 17: Tank Assembly - 15 Gallon
DESCO Innovative Solutions Tank Assembly – 15 Gallon RP-Vac II – 15-30-55 Gallon, Wet/Dry, HEPA, and Wet/Dry w/HEPA Page 15 December 2023... - Page 18 Washer-Wave .52 x .87 x .01 340.900040 Wheel 340.130032 Cap, Retainer 340.711591 Washer-Rubber 340.711505 Washer-Flat 340.711202 Blt-HH 1/4-20 X .50 340.711594 Washer-Flat .88 x .03 NI 340.390110 Intake Assy Aluminum RP-Vac II – 15-30-55 Gallon, Wet/Dry, HEPA, and Wet/Dry w/HEPA Page 16 December 2023...
-
Page 19: Tank Assembly - 30 & 55 Gallon
Tank 55 Gal. PTD Less Handles 340.900047 Dump Valve 340.900031POL Handle, Tank Polished 340.711203 BLT, HH 1/4-20 x .62 340.711591 Washer, Rubber 340.711505 WSR, Flat 1/4 RP-Vac II – 15-30-55 Gallon, Wet/Dry, HEPA, and Wet/Dry w/HEPA Page 17 December 2023... -
Page 20: Adapter Assembly
Rivet-Tube .19 x .28 NI PL 340.711503 WSR-Flat #10 340.711543 WSR-Helical #10 340.712638 Nut Hex 10/24 SS Nyloc 340.711502 WSR-Flat #8 340.711542 WSR-Helical #8 340.711304 Nut-Hex 8-32 STPL RP-Vac II – 15-30-55 Gallon, Wet/Dry, HEPA, and Wet/Dry w/HEPA Page 18 December 2023... -
Page 21: Dolly Assembly
Spring, torsion RH 340.900081 Spring LH 340.711642 Rollpin 340.761050 Caster, rigid 5" 340.761049 Caster, swivel 5" 340.711545 WSR, helical Spr Loc 5/16 340.711379 Nut-Flanged Wizz 5/16-18 RP-Vac II – 15-30-55 Gallon, Wet/Dry, HEPA, and Wet/Dry w/HEPA Page 19 December 2023... -
Page 22: Bag Assembly
DESCO Innovative Solutions Bag Assembly Part Description 340.760131 Molded bag ring 340.750097 Bag frame 340.805054 Cloth bag only 340.805058 Bag assy. complete RP-Vac II – 15-30-55 Gallon, Wet/Dry, HEPA, and Wet/Dry w/HEPA Page 20 December 2023...
