Vacuum, Electric, 06 Gallon, RP-VAC, (340.903-4), Jun2016, Manual.PDF
June 2016
Part
340.903
RP-Vac I, 6 Gallon, ULPA, Stainless Steel
Tank, and lockable latches.
340.904
RP-Vac II, 6 Gallon, ULPA, Stainless Steel
Tank, lockable latches, thermal overload
protection, power plug lock and inlet plug.
23031 Arroyo Vista ● Rancho Santa Margarita, CA 92688
949.858.7400 ● 949.858.9141 fax ● 800.337.2648 toll free
www.descomfg.com ● info@descomfg.com
RP-VAC
Radiological Protection Vacuum
RP-VAC Configurations
Description
DESCO Mfg. Co., Inc.
with ULPA Filtration
Accessories Furnished
10' hose, initial filters & bags.
Advertisement
Table of Contents
Related Manuals for Desco RP-VAC 340.903
Summary of Contents for Desco RP-VAC 340.903

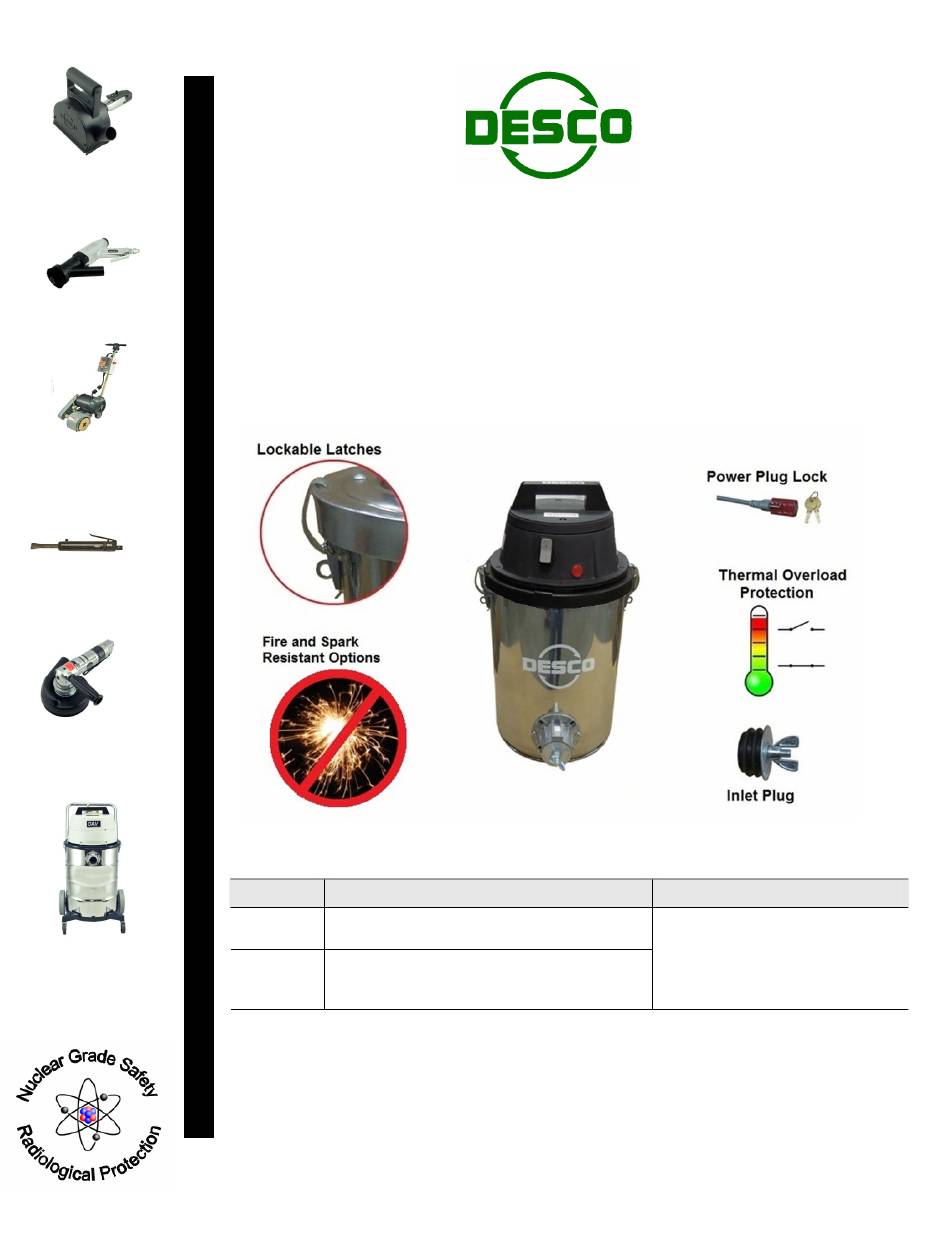

- Page 1 RP-Vac II, 6 Gallon, ULPA, Stainless Steel Vacuums Tank, lockable latches, thermal overload protection, power plug lock and inlet plug. DESCO Mfg. Co., Inc. 23031 Arroyo Vista ● Rancho Santa Margarita, CA 92688 949.858.7400 ● 949.858.9141 fax ● 800.337.2648 toll free www.descomfg.com ● info@descomfg.com Vacuum, Electric, 06 Gallon, RP-VAC, (340.903-4), Jun2016, Manual.PDF...
-
Page 2: Table Of Contents
Contents GENERAL INFORMATION ..................... 1 ........................1 NTRODUCTION ....................1 ECHNICAL PECIFICATIONS ........................1 CCESSORIES ........................2 ONSUMABLES ................3 ROVISIONING OF ACUUM ONSUMABLES ..............3 RITICAL ILTRATION AND ACUUM FFICIENCY ..............3 ILTRATION TAGES AND AINTENANCE TEPS SAFETY ........................... 4 ................... -
Page 3: General Information
Innovative Solutions 1.0 General Information Introduction This manual is furnished with each new DESCO RP-VAC. This provides the necessary operating and preventive maintenance instructions. Operators must read and understand this manual before operating or servicing this machine. This machine was designed to give you excellent performance and efficiency. For best results and minimal cost, please follow the general guidelines below: •... -
Page 4: Consumables
DESCO Innovative Solutions Consumables Image Part Description (Pictured in assembly sequence) 340.110029 UPLA Filter (Pictured with pre-filter sleeve. Included with ULPA filter.) 340.110030PKG Pre-Filter Sleeve (6 pk) 340.805041 Cloth Bag Filter Paper Filter Protector 340.761177PKG (10 pk) 340.384003PKG Collection Bag (10 pk) Liner/Disposal Bag (10 340.802206PKG... -
Page 5: Provisioning Of Vacuum Consumables
DESCO Innovative Solutions Provisioning of Vacuum Consumables Below are guidelines designed to give an idea of how many consumable items should be on hand to keep a vacuum system running efficiently. Actual consumable requirements vary widely due to the number of variables involved, including: tank size, debris volume, and particle size. -
Page 6: Safety
DESCO Innovative Solutions 2.0 Safety PLEASE READ AND FOLLOW ALL WARNINGS Read Operating Instructions Always become familiar with all the instructions and warnings before operating any machine or power tool. Hazardous Material and Safety Safety is your primary concern when working with or near hazardous material (HAZMAT). -
Page 7: Warning - Reduce Risk Of Fire, Electric Shock, Or Injury
DESCO Innovative Solutions WARNING – Reduce Risk of fire, Electric Shock, or Injury • Do not leave appliance when plugged in. Unplug from outlet when not in use and before servicing. • To avoid electrical shock, do not expose to rain, store indoors. -
Page 8: Operating Instructions
DESCO Innovative Solutions 3.0 Operating Instructions Pre-Operation 3.1.1 Inspection • Physical Inspection – Carefully inspect the vacuum head and tank for physical damage that would affect safety or performance. For example, inspect: 1) tank for punctures, 2) head/tank gasket for proper seal, 3) tank latches are securely holding vacuum head on tank. -
Page 9: Operation
DESCO Innovative Solutions Operation 3.2.1 Power On/Off Power to the vacuum is controlled with a rocker type switch. Select the ON or OFF status by pressing the corresponding part of the switch as illustrated below. 3.2.2 Power Sequence Note: This paragraph applies only when the vacuum is used in conjunction with a tool with a dust collection system. -
Page 10: Maintenance
Loss of vacuum air flow Filter(s) clogged Check & replace filters as needed. See paragraph 1.7 for further information. Other malfunction Contact your Desco representative for evaluation and repair assistance. Motor will not run No power Check power source: 1) insure... -
Page 11: Schematics
DESCO Innovative Solutions 6.0 Schematics Vacuum Head Assembly RP-VAC I & II – Radiological Protection Vacuum, w/ULPA Page 9 June 2016... - Page 12 DESCO Innovative Solutions Vacuum Head Assembly – Cont’d. Item Part No. Qty. Description 340.110029 Filter-ULPA, X829 Series 340.110030PKG Prefilter Sleeve, 829/839, Pkg of 6 340.290017 Molded Vac Mtr Gasket 340.290031 Lid Gasket 294/6 Diecut 340.290032 Dome Seal 296 340.380001-4 Vac Motor 120V (ECM) w/ Wires 340.380054...
-
Page 13: Tank Assembly
DESCO Innovative Solutions Tank Assembly Part Description 3 550.390002 SPRING-RETURN (390001) 4 550.390001 MLDED TRIGGER W/ 2 PINS 5 550.712824 SCR-MC 10-24 X .75 TRUSS HD STL ZINC 9 550.712638 NUT HEX 10-24 SS NYLOC 10 550.712764 WSR #10 SS 11 550.711503... -
Page 14: Bag Assembly
DESCO Innovative Solutions Bag Assembly Item Part Number Description 340.711909 Rivet Pop .19x.44 AL 340.712764 Washer #10 SS 340.760244MCH Plastic Bag Frame w/Hole 340.760406PLT Bag Frame 6 gal Plated OPTIONAL 340.805040 Bag, Cloth Bag Only 6G 340.800056 Bag Assy. w/Frame 6gal RP-VAC I &...
