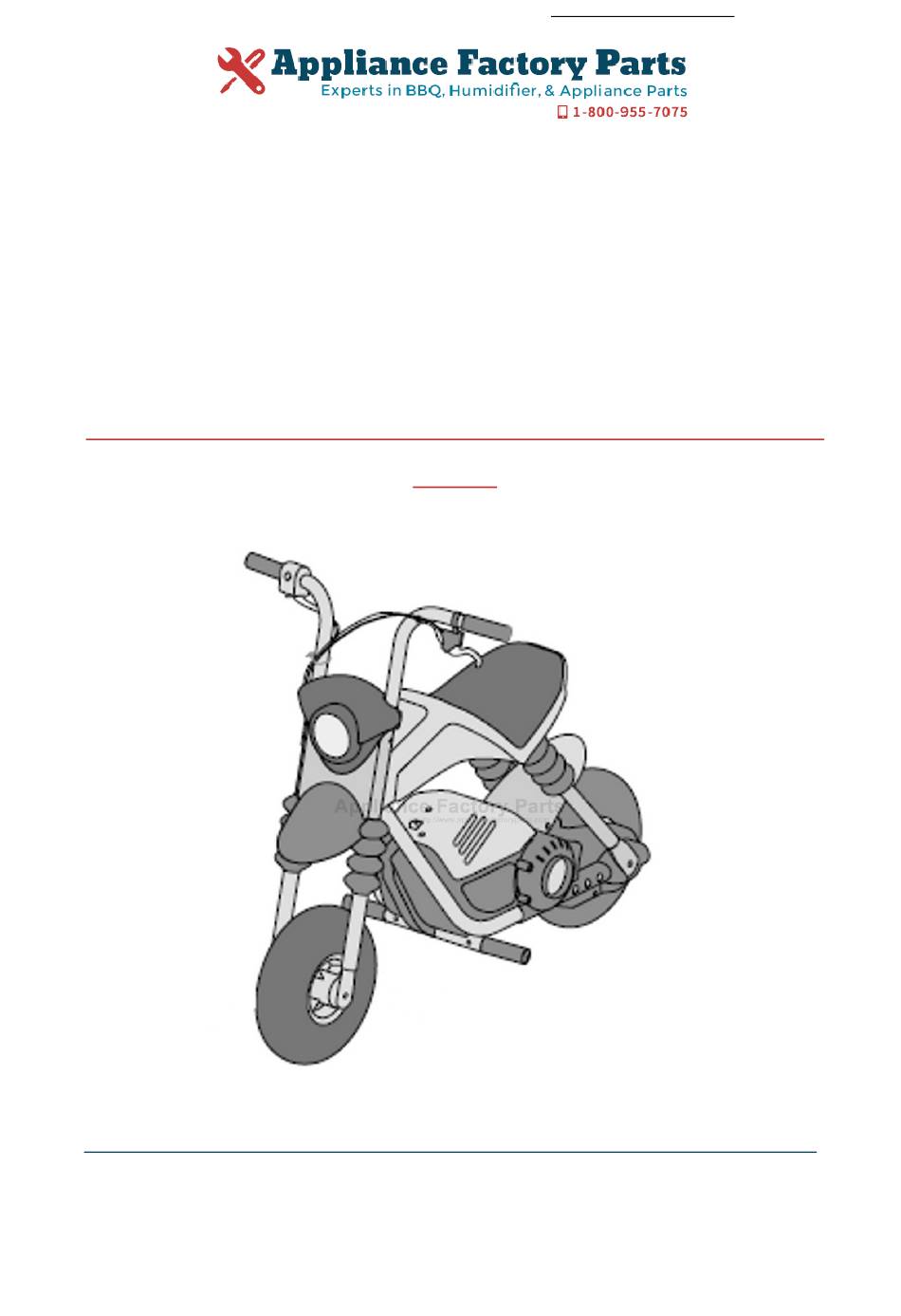

This Owner's Manual is provided and hosted by Appliance Factory Parts.
FISHER PRICE 73535
Owner's Manual
Shop genuine replacement parts for FISHER PRICE
73535
Find Your FISHER PRICE Ride On Parts - Select From 999 Models
-------- Manual continues below --------

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the POWER WHEELS 73535 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Fisher-Price POWER WHEELS 73535

Summary of Contents for Fisher-Price POWER WHEELS 73535

  • Page 1 This Owner's Manual is provided and hosted by Appliance Factory Parts. FISHER PRICE 73535 Owner's Manual Shop genuine replacement parts for FISHER PRICE 73535 Find Your FISHER PRICE Ride On Parts - Select From 999 Models -------- Manual continues below --------...
  • Page 2 12 Volt Lead-Acid Rechargeable Battery and a Power Wheels ® 12 Volt Charger with Type “12V” Connector (both included). Fisher-Price, Power Wheels, and Power Wheels by Fisher-Price are U.S. trademarks of Mattel, Inc. Owner's Manual with Assembly Instructions For Model 73535...

  • Page 3: Table Of Contents

    • Use the mini-bike ONLY outdoors. Most interior necesita asistencia llame gratis 1-800-348-0755 para flooring can be damaged by riding this mini-bike indoors. los Estados Unidos. Tenemos representantes que Fisher-Price ® will not be responsible for damage to hablan español para atender su llamada.

  • Page 4: Warnings And Cautions

    Warnings and Cautions ELECTRICAL HAZARD WARNING • Battery can fall out and injure a child if vehicle tips over. Always use battery clamp (cover). • PREVENT FIRE - Never modify the electrical system. Alterations could cause a fire resulting in serious injury and could also ruin the electrical system.

  • Page 5: Parts

    Parts • If you experience a problem with this product, or are missing a part, please call us at 1-800-348-0751, rather than return this product to the store. • Please identify all parts before assembly and save all packaging material until assembly is complete to ensure that no parts are discarded.

  • Page 6: Battery Charging

    Battery Charging ELECTRICAL HAZARD WARNING CAUTION • Battery can fall out and injure a child if Use the charger in dry locations only. mini-bike tips over. Always use battery clamp (cover). • PREVENT FIRE About Thermal Fuses - Never modify the electrical system. Your Power Wheels ®...
  • Page 7 Battery Charging IMPORTANT! • Your new battery must be charged for at least 18 hours before you use it in your mini-bike for the first time. We recommend that you start charging your battery before beginning assembly of your new mini-bike. Battery •...

  • Page 8: Assembly

    Assembly WARNING Children can be harmed by small parts, sharp edges and sharp points in the mini- bike’s unassembled state, or by electrical items. Care should be taken in unpacking and assembly of the mini-bike. Children should not handle parts, including the battery, or help in assembly of the mini-bike.
  • Page 9 Assembly Allen Wrench Adjustable Wrench • While holding the lock nut with an adjustable wrench (or a " wrench), tighten the bolt with the Allen wrench. Do not over-tighten. Rounded Edge • Check to be sure the handlebar is securely attached. Lift it and push it from side to side.
  • Page 10 Assembly Foot Peg Foot Peg Rounded Edge • While holding the lock nut with an adjustable wrench (or a " wrench), tighten the bolt with the Allen wrench. Do not over-tighten. • Check to be sure the foot peg is securely attached. "...
  • Page 11 Assembly Spacer Spacer Front Wheel • Fit a spacer into the hole on each side of the front wheel. " Lock Nut - 2 SHOWN ACTUAL SIZE • Attach the " lock nut to the end of the axle. While holding the lock nut with an adjustable wrench, tighten the axle with a "...

  • Page 12: Adjusting The Brake

    Adjusting the Brake IMPORTANT! Check to be sure the brake is adjusted properly and is tight. Please follow these instructions carefully before you use this mini-bike. No Gap No Gap ✔ ✔ Adjust Brake Adjust Brake • From the front of the handlebar, examine the brake •...

  • Page 13: Adjusting The Brakes

    Adjusting the Brakes Brake Lock Nut Adjustment Loosen Lock Nut Metal Bracket Knob Remove • Turn the lock nut counter-clockwise a few turns to loosen it. • Turn the brake adjustment knob counter-clockwise a few turns to close the gap. •...

  • Page 14: Label Decoration

    Label Decoration Proper label application will help to keep the labels looking their best! When applying labels, keep the following guidelines in mind: • Wash your hands before applying the labels. • Before applying the labels, wipe the surface of the mini-bike with a clean, dry cloth to remove any dust or oils. •...

  • Page 15: Battery Installation

    Battery Installation IMPORTANT! Use only a Power Wheels 12 volt battery. ® Use of any other battery will damage your mini-bike. Make sure that you charge the battery for at least 18 hours using the enclosed Power Wheels 12 volt charger before ®...

  • Page 16: Battery Care And Disposal

    Battery Care and Disposal Care Disposal • Your Power Wheels ® battery is a sealed lead-acid If a battery leak develops, avoid contact with the leaking battery. It must be recycled or disposed of in an acid and place the damaged battery in a plastic bag. See environmentally sound manner.

  • Page 17: Rules For Safe Riding

    Rules for Safe Riding IMPORTANT! Please carefully read the owner’s information in this manual and teach your child about proper mini-bike operation and rules for safe riding before allowing operation of this mini-bike. RIDING RULES Riding Rules WARNING Make sure children know and follow these rules for safe riding: Direct Adult Supervision Required 1.

  • Page 18: How To Operate Your Mini-Bike

    How to Operate Your Mini-Bike Throttle Button Brake Handle IMPORTANT! For a smooth start, place one foot on a foot peg and push off a few steps with the other foot. • Press the throttle button and then place your other foot on the other foot peg. •...

  • Page 19: Caring For Your Mini-Bike

    Caring For Your Mini-Bike • To prevent damage, do not use the mini-bike on wet surfaces or in wet weather. Never immerse any part of this product. Do not ride in mud. Mud can clog up the drive train system and possibly lead to the belt slipping off.

  • Page 20: Problems And Solutions Guide

    Problems and Solutions Guide IMPORTANT! If you experience a problem with your mini-bike, first check the Problems and Solutions Guide below. If you still experience a problem, please contact Power Wheels ® Consumer Relations, toll-free at 1-800-348-0751 between 8 AM and 6 PM (EST) Monday through Friday. Or, contact your local Power Wheels authorized service center.
  • Page 21 Problems and Solutions Guide Problem Possible Cause Solution Mini-bike was running but Loose wire or loose connectors Check all wires and connectors. Make sure the motor suddenly stopped harness connector is plugged into the battery, and that there are no loose wires around the motor. Low battery voltage;...
  • Page 22 Problems and Solutions Guide Problem Possible Cause Solution Mini-bike runs sluggishly Undercharged battery Charge the battery. A new battery should have been charged for at least 18 hours before using the mini-bike for the first time. After first-time use, recharge the battery for at least 14 hours after each use.

  • Page 23: Limited Warranty

    Limited Warranty *One year limited warranty from the date of purchase on the Power Wheels ® vehicle. Six month limited warranty on the 12 volt battery. For the original purchaser, this one year limited warranty covers the Power Wheels ® ride-on vehicle (purchased from Power Wheels ®...

  • Page 24: Authorized Service Centers

    Authorized Service Centers We are continually expanding our Authorized Service Center Network. Please check this listing for the independently owned and operated Authorized Service Center nearest you. If there is not one in your area, please call Power Wheels ® Consumer Relations at 1-800-348-0751.
  • Page 25 Authorized Service Centers INDIANA MAINE MINNESOTA EVANSVILLE - Electro Hygiene Co., 1614 S Kentucky, GREENE -MAC (Maine Accessibility Corp), BLAINE - Barness #1, 8701 Central Ave. NE, 55434, 47714, (812) 425-2671 87-89 Hillside Avenue, 04401, (207) 947-2357 (763) 780-7229 FT. WAYNE - Southside Vacuum Co. Inc., GREENE - Brule’s Auto Clinic &...
  • Page 26 Authorized Service Centers NEW YORK Electronics, 24090 Detroit Avenue, 44145, PUERTO RICO (216) 899-2040, (800) 331-7037 ALBANY - Lake Electronic Service, 1650 Central MAYAGUEZ - Cardona Appliance Service, Avenue, 12205, (518) 869-8424, (800) 585-3777 8 San Vicente Street, 00680, (787) 832-8366 DAYTON - Layer Electric, 603 South Ludlow Street, 45402, (937) 224-9608 BAYSHORE, L.I.
  • Page 27 Authorized Service Centers SAN ANTONIO - Texas Shaver & Appliances, WASHINGTON WISCONSIN 8121 Callaghan Road, 78230, (210) 344-8577 ARLINGTON - Cordz Limited, 6516 211th Avenue, ELK MOUND - Epp Electronics, E9485-A County Road TEMPLE - Master Tech Repairs, 2819 West Avenue 98223, (360) 435-2471 EE, 54739, (715) 879-4634 North, 76504, (817) 773-8991...
  • Page 29 Authorized Service Center. For the location nearest you, refer to the Authorized Service Center list in this manual. ©2003 Mattel, Inc. All Rights Reserved. Fisher-Price, Inc., a subsidiary of Mattel, Inc., East Aurora, New York 14052 U.S.A. Printed in China 73535pr-0920...
