Varistors (ZNR Surge Absorber)
D type
E-S1
series

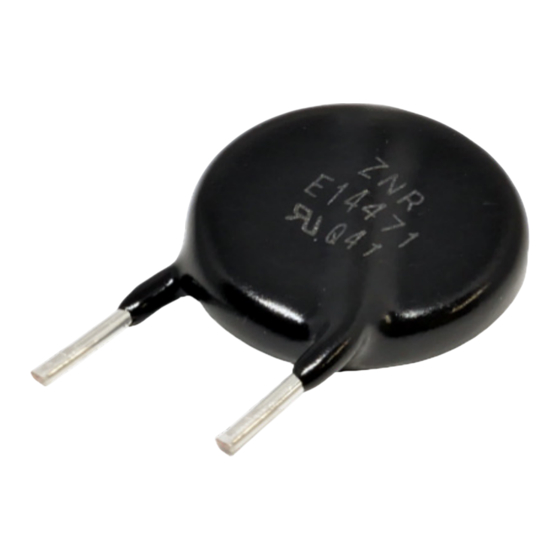

Varistors (ZNR Surge Absorber), Series E-S1, improves E series
products with high capability for absorbing transient overvoltage
in a compact size, suitable for surge protection at high
temperature.
Features
●Large withstanding surge current capability in compact sizes
●Withstanding surge current at max. 125 °C
●Large "Energy Handling Capability" absorbing transient overvoltages in compact sizes
●Wide range of varistor voltages
●RoHS compliant
Recommended applications
●Transistor, diode, IC, thyristor or triac semiconductor protection
●Surge protection in consumer electronic equipment
●Surge protection in communication, measuring or controller electronics
●Surge protection in electronic home appliances, gas or petroleum appliances
Applicable standards
●UL1449 (VZCA2/UL, VZCA8/C-UL)
●VDE IEC61051-1，-2，-2-2，IEC60950-1 Annex.Q，IEC62368-1 G8.1
●CQC (GB/T10193, GB/T10194, GB4943.1)
Refer to "Standard Products" , and "Application Note for Safety Standards" , for the details.
■As for handling precautions and minimum quantity / Packing unit
please see related information.
Explanation of part numbers
1 2
Ｅ Ｒ Ｚ
Product code
Code Series
E11 E11-S1
E14 E14-S1
Design and specifications are each subject to change without notice. Ask factory for the current technical specifications before purchase and/or use.
Should a safety concern arise regarding this product, please be sure to contact us immediately.
3 4 5
E
Lead configuration
Code
Configuration
A Straight Lead
6 7 8
A
Norminal varistor voltage
Packaging
The first two digits are significant
Bulk figures and the third one denotes the
number of zeros following.
9 10 11
S
Code Design
S1 Long lead type
SC Lead cut type
12
1
