STEERING ELEMENTS
The main control elements are the steering panel and the steering console; their description is
below.
A
Battery ignition switch
B
Rotation dircetion switch (400 V network)
C
Emergency shutdown button
D
Indicator lights for phase control (power supply from the network)
E
Indicator light for activation/charging of the battery (green)
F
Indicator light indicating the system's readiness for operation (green)
G
Indicator light confirming the 400V network connection
H
Indicator light indicating the activation of air fans
I
Indicator light indicating the activation of the oil cooler fan

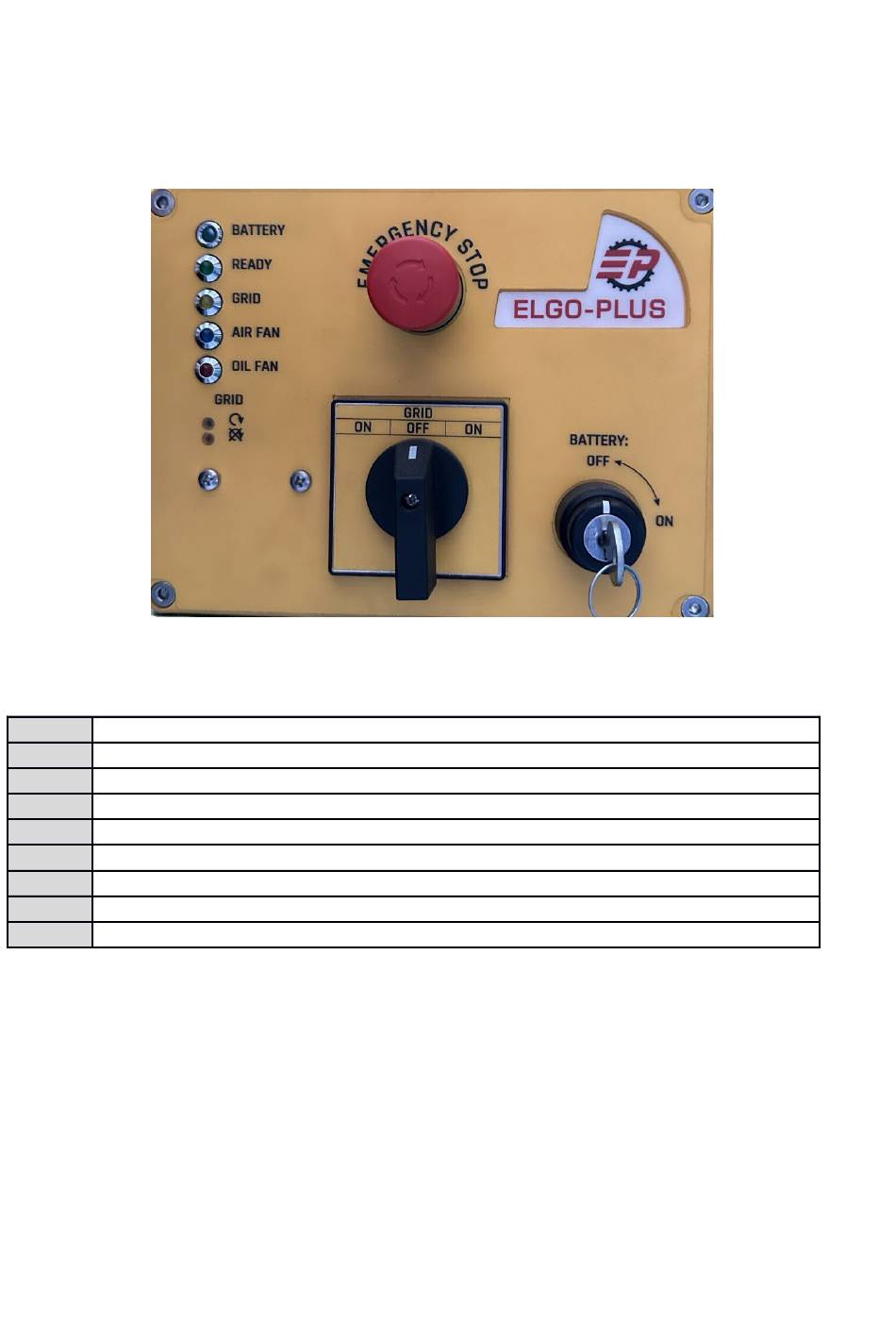

PIC.4.1. STEERING PANEL
