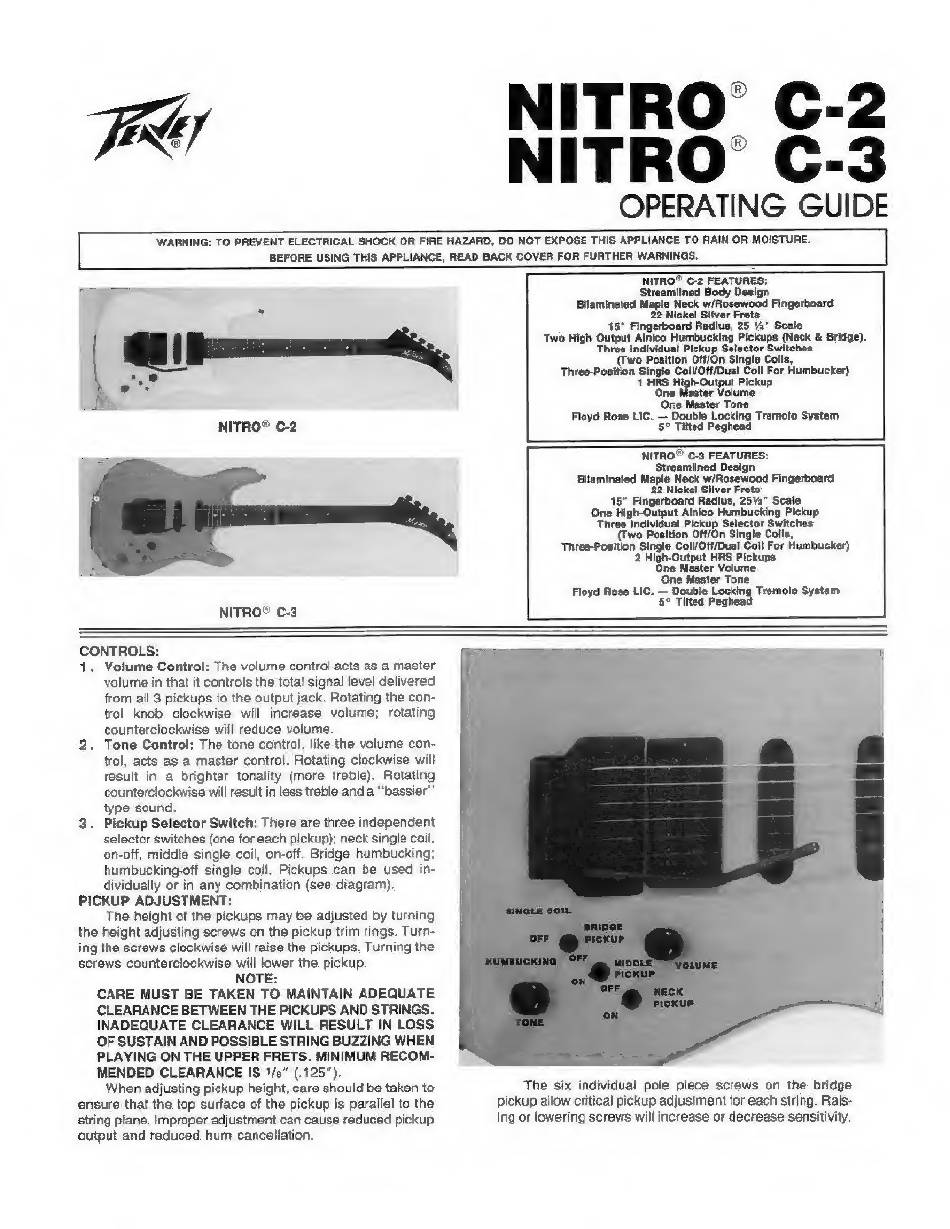

OPERATING GUIDE
E
NITRO" 2 FEATURES:
Streamlined Body Design
Bilaminated Maple Neck w/Rosewood Fingerboard
22 Nickel Sliver Frets
45° Fingerboard Radius, 25 14" Scale
Two High Output Alnica Humbucking Pickups (Neck & Bridge).
Three Individual Pickup Selector Switches
'(wo Position Oft/On Single Coils,
ry
'Three Position Single Col/Oft/Dual Coll For Humbucker)
°
1 HRS High-Output Pickup
'One Master Volume
F l o y d Rose Lic. "ouble Losking
T r e m o l o Sy
l o y d
Rose LIC. ~ Double Locking Tremolo System
NITRO® €-2
ki
3° Tiled Peghead
NITRO® C-3
CONTROLS:
1. Volume Control: The volume control acts as a master
volume in that it controls the total signal level delivered
from all 3 pickups to the output jack. Rotating the con-
trol knob clockwise will increase volume; rotating
counterclockwise will reduce volume,
2. Tone Control: The tone control, like the volume con-
trol, acts as a master control. Rotating clockwise will
result in a brighter tonality (more treble).
Rotating
counterclockwise will result in less treble and a "bassier"
type sound.
3. Pickup Selector Switch: There are three independent
selector switches (one for each pickup}; neck single coil,
on-off, middle single coil, on-off. Bridge humbucking;
humbucking-off single coil. Pickups can be used in-
dividually or in any combination (see diagram).
PICKUP ADJUSTMENT:
The height of the pickups may be adjusted by turning
the height adjusting screws on the pickup trim rings. Turn-
ing the screws clockwise will raise the pickups. Turning the
screws counterclockwise will lower tha pickup.
NOTE:
CARE MUST BE TAKEN TO MAINTAIN ADEQUATE
CLEARANCE BETWEEN THE PICKUPS AND STRINGS.
INADEQUATE CLEARANCE WILL RESULT IN LOSS
OF SUSTAIN AND POSSIBLE STRING BUZZING WHEN
PLAYING ON THE UPPER FRETS. MINIMUM RECOM-
MENDED CLEARANCE IS 1/6" (.125"),
output and reduced hum cancellation.
