Pro-Form 22.0 User Manual page 9

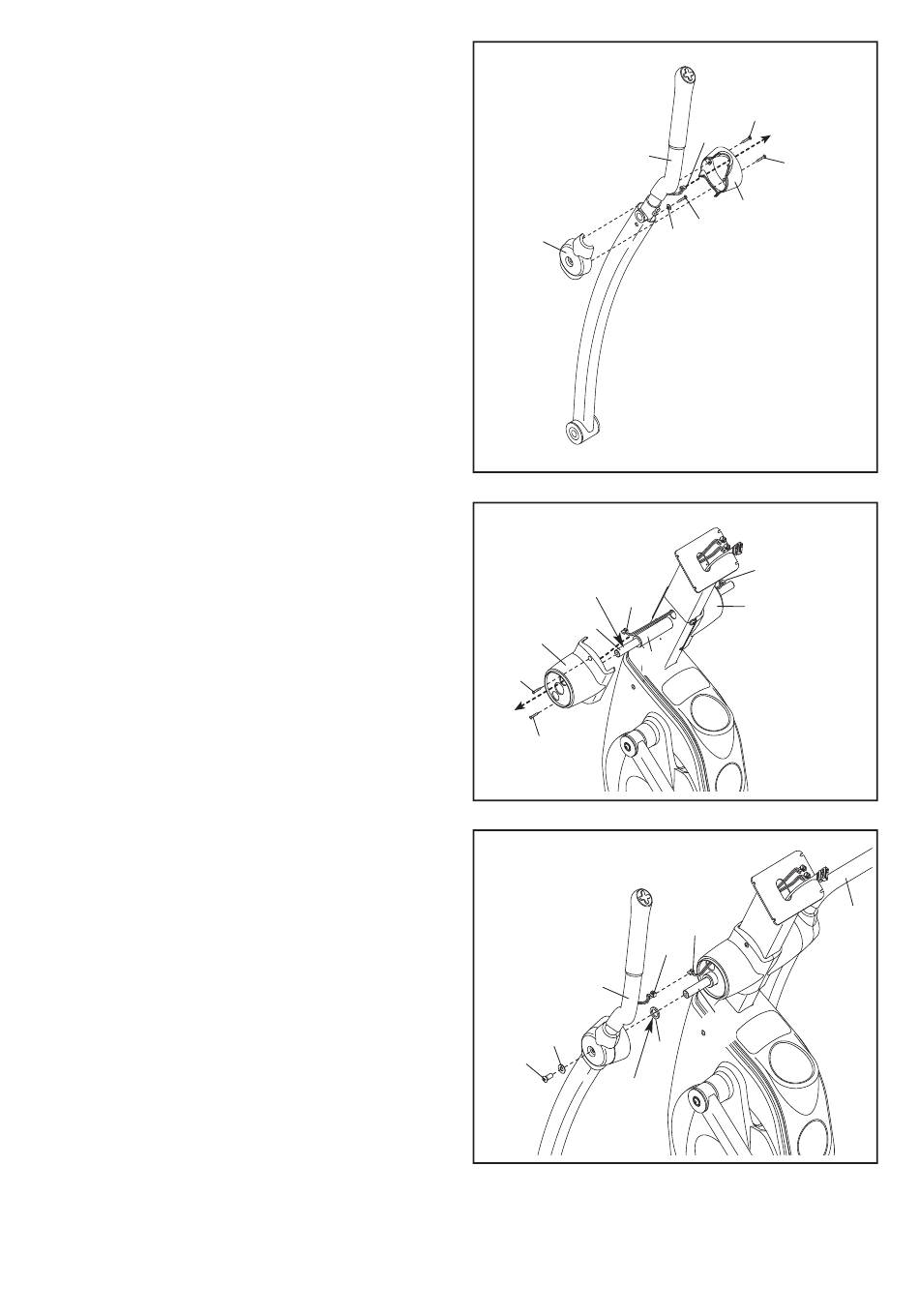

8. Position an Inner Handlebar Cover (18) and an
Outer Handlebar Cover (19) around the Left
Handlebar (8) as shown. Then, pull the Left
Handlebar Wire (108) out of the Left Handlebar
and insert it through the Inner Handlebar Cover.
Attach the Inner and Outer Handlebar
Covers (18, 19) with three M4 x 16mm Self-tap-
ping Screws (79) and an M4 x 13mm Washer
(93). Start all three Self-tapping Screws before
tightening any of them. Avoid pinching the
Left Handlebar Wire (108) during this step.
Repeat this step for the Right Handlebar and
the Right Handlebar Wire (not shown).
9. Apply a generous amount of grease to the Pivot
Axle (65) and insert it into the Frame (2).
Pull the Left Controller Wire (110) through the left
Frame Cover (17), and then pull the Right
Controller Wire (111) through the right Frame
Cover.
Attach each Frame Cover (17) to the Frame (2)
with two M4 x 16mm Screws (86). Avoid pinch-
ing the Controller Wires (110, 111) during this
step.
10. Connect the Left Handlebar Wire (108) to the
Left Controller Wire (110). Insert the excess wire
into the Left Handlebar (8).
Apply a small amount of grease to both sides of
a Wave Washer (98). Slide the Wave Washer
onto the left side of the Pivot Axle (65). Next,
slide the Left Handlebar (8) onto the Pivot Axle
as shown. Attach the Left Handlebar with an
M10 x 23mm Shoulder Screw (80) and an
M10 x 20mm x 1mm Washer (81). Avoid pinch-
ing the wires during this step.
Repeat this step for the Right Handlebar (9).
