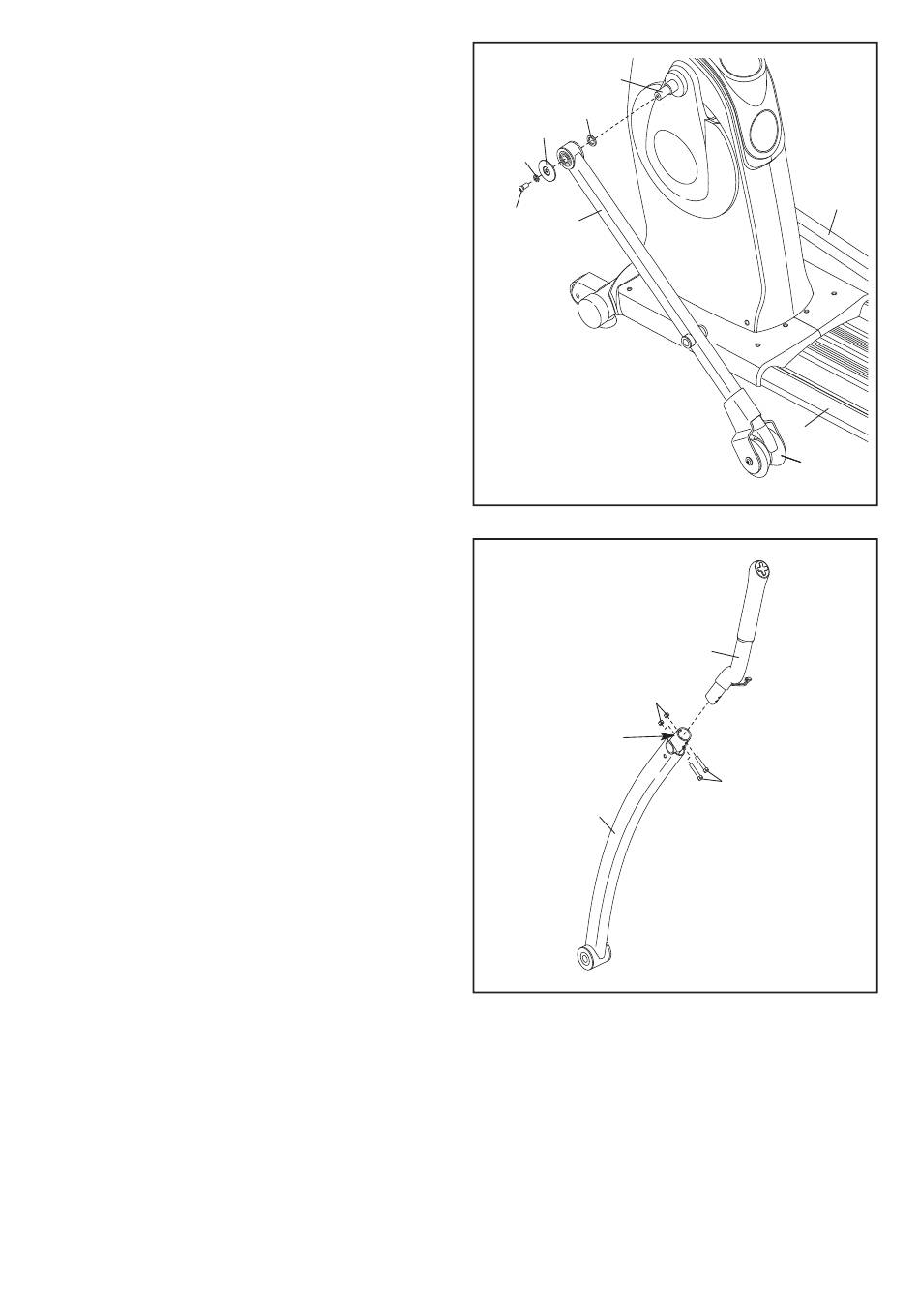

6. Orient the Left Roller Leg (12), which is marked
with a "Left" sticker, near the left Crank Arm (36)
as shown.
Apply a small amount of the included grease to
both sides of a Wave Washer (98). Slide the
Wave Washer onto the end of the left Crank
Arm (36). Next, slide the Left Roller Leg (12)
onto the Crank Arm and set the Roller (22) on
the Base (1). Attach the Left Roller Leg with an
M10 x 23mm Shoulder Screw (80), an
M10 x 20mm x 1.5mm Washer (84), and a
Crank Axle Cap (30).
Repeat this step to attach the Right Roller
Leg (21) to the right Crank Arm (not shown).
7. Identify the Left Handlebar (8), which is marked
with a "Left" sticker. Insert the Left Handlebar into
one of the Handlebar Legs (11) as shown.
Attach the Left Handlebar (8) with two
M8 x 42mm Bolts (71) and two M8 Nylon
Locknuts (96). Make sure that the Nylon
Locknuts are inside the hexagonal holes.
Assemble the Right Handlebar and the other
Handlebar Leg (not shown) in the same way.
All manuals and user guides at all-guides.com
8
6
36
98
30
84
80
12
7
96
Hexagonal
Holes
11
21
1
22
8
71
