Summary of Contents for Microframe Corporation 6300 Series

  • Page 1 Microframe A6330 Display In Stock Used and in Excellent Condition Open Web Page https://www.artisantg.com/90279-1 A l l t r a d e m a r k s , b r a n d n a m e s , a n d b r a n d s a p p e a r i n g h e r e i n a r e t h e p r o p e r t y o f t h e i r r e s p e c t i v e o w n e r s . •...
  • Page 2 SERIES 6300 INSTALLATION & SPECIFICATION GUIDE Microframe Corporation 604 South 12th Street Broken Arrow, OK 74012 Local: 918-258-4839 Toll Free: 800-635-3811 Website: www.microframecorp.com E-mail: support@microframecorp.com Manual No. A6300-7010 Revision Date: 10/2020 Control: 2.0 A6300-7010 *A6300-7010*...
  • Page 3 Your Microframe System is warranted against failure due to defects in workmanship or material for a period of one (1) year from the date of purchase. Microframe Corporation will repair or replace any defective unit. Obvious abuse or mishandling of the unit is NOT covered by this warranty.
  • Page 4: Table Of Contents

    Slave Display Options Setting the Programmable Options Options Table Summary Options Definitions Appendix to Model 6300 Specifications Slave Display Wiring Diagram General Troubleshooting Chart Stand-Alone Displays Wireless Displays Microframe Corporation 604 South 12 Street Broken Arrow, OK 74012 800-635-3811 www.microframecorp.com Series 6300...
  • Page 5: Parts List

    To connect the power adapter wire to the wall mounted transformer, first loosen the screw- down terminals on the power adapter. Next, slide one spade connector under each terminal and tighten each screw onto the spade connectors. Microframe Corporation 604 South 12 Street...
  • Page 6 Press “Input 1” button to start or stop the display. Press “Input 2” button to stop and reset the display to zero. Count direction is determined by the programmed mode. Microframe Corporation 604 South 12 Street Broken Arrow, OK 74012 800-635-3811 www.microframecorp.com...
  • Page 7: Quick Settings

    1. Using the remote control, press [MENU] “168” [ENTER]. This will set the display at a default Takt interval of 15 seconds. 2. Type the number followed by [ENTER] to set count. 3. Press [DOWN] to START or STOP the Takt time. Microframe Corporation 604 South 12 Street Broken Arrow, OK 74012 800-635-3811 www.microframecorp.com...
  • Page 8: Clock Detailed Instructions

    As date: [MENU] "232" [ENTER]. Use this only when the master display is also showing date. • Set time units displayed STU seconds: [MENU] "411" [ENTER]. LTU hours: [MENU] "423" [ENTER]. Microframe Corporation 604 South 12 Street Broken Arrow, OK 74012 800-635-3811 www.microframecorp.com...
  • Page 9: Count Up/Down Timer Detailed Instructions

    Press [ENTER] to accept changes. • Chime Time 2 Using the remote control, press [MENU] “15” [ENTER]. Follow the same steps as for chime 1. Microframe Corporation 604 South 12 Street Broken Arrow, OK 74012 800-635-3811 www.microframecorp.com...
  • Page 10 Set interval unit displayed: Press [MENU] “24x” [ENTER], where “x” is the interval unit selected • Set time units displayed: STU hours: [MENU] “411” [ENTER]. LTU hours: [MENU] "423" [ENTER]. Microframe Corporation 604 South 12 Street Broken Arrow, OK 74012 800-635-3811 www.microframecorp.com...
  • Page 11: Counter Detailed Instructions

    See the "Slave Display Options" section for more information about using multiple displays. • Set slave mode: [MENU] "213" [ENTER]. • Set display format as count: [MENU] “233” [ENTER]. Microframe Corporation 604 South 12 Street Broken Arrow, OK 74012 800-635-3811 www.microframecorp.com...
  • Page 12: Takt Time Detailed Instructions

    See the "Slave Display Options" section for more information about using multiple displays. • Set slave mode: [MENU] "213" [ENTER]. • Set display format as count: [MENU] “233” [ENTER]. Microframe Corporation 604 South 12 Street Broken Arrow, OK 74012 800-635-3811 www.microframecorp.com...
  • Page 13: Slave Display Options

    Using the remote control, press [MENU] "213" [ENTER]. The display is now in slave mode. Overview The 6300 Series displays allow multiple displays to work together. The primary display is referred to as the "master" display. Other displays controlled by the master are referred to as "slave" displays. All of the operating modes for the 6300 Series support slave displays.
  • Page 14: Setting The Programmable Options

    This will tell the display how to behave. Overview The 6300 Series Display has been designed to allow the user to control almost every aspect of the display’s behavior. In order to change the behavior of the display you change the value of a specific parameter in the display's memory.
  • Page 15: Options Table Summary

    6.8.0 Address 0 4.5.2 2 digit display 6.8.1 to 6.8.9 Address 1 to 9 4.5.3 3 digit display 4.5.4 4 digit display 4.5.6 6 digit display Microframe Corporation 604 South 12 Street Broken Arrow, OK 74012 800-635-3811 www.microframecorp.com Series 6300...
  • Page 16: Options Definitions

    NNNNNN [ENTER] HH=hours, MM=minutes, SS=seconds, DDDD=days N=quantity of the set interval unit 1.5 Set Chime 2 Time / Interval A second chime time/interval. Entry is the same as 1.4. Microframe Corporation 604 South 12 Street Broken Arrow, OK 74012 800-635-3811 www.microframecorp.com...
  • Page 17 [ENTER]. e.g. if you wrote down "12" in the last step, you will type in "52" [ENTER]. • Display brightness should now match. If not, repeat steps above, using a different offset. Microframe Corporation 604 South 12 Street Broken Arrow, OK 74012 800-635-3811 www.microframecorp.com...
  • Page 18 On Rollover event will be triggered. Triggering this event modifies your time! With this in mind, you are free to change this setting even while the display is running. For safety, set this option to days before changing the display format to interval. Microframe Corporation 604 South 12 Street...
  • Page 19 Note: Some input prompts can only display all of the information on a 6-digit display. Smaller displays will show only the right hand portion of the prompt. Microframe Corporation 604 South 12...
  • Page 20 Load the default countdown time and continue counting down • 5.2.3 Count Up Start counting up from zero • 5.2.4 Flash Zero Flashes zero until a button is pressed Microframe Corporation 604 South 12 Street Broken Arrow, OK 74012 800-635-3811 www.microframecorp.com Series 6300...
  • Page 21 6.3 Pushbutton/Voltage Sets whether the display should source 5V to monitor buttons, or if it should accept 5V (TTL level) from an external input. • 6.3.0 Push buttons Microframe Corporation 604 South 12 Street Broken Arrow, OK 74012 800-635-3811 www.microframecorp.com...
  • Page 22 This option is for our wireless displays. This adds the ability to set a keyfob address. This allows for independent keyfob/display systems to be used side-by-side. Note: pressing two keyfobs at the same time will still cause interference, because all keyfobs operate on the same frequency. Microframe Corporation 604 South 12 Street...
  • Page 23 SERIES 6300 Appendix to INSTALLATION & SPECIFICATION GUIDE Microframe Corporation 604 South 12 Street Broken Arrow, OK 74012 800-635-3811 www.microframecorp.com Series 6300...
  • Page 24 Slave Display Options Wiring Diagram Microframe Corporation 604 South 12 Street Broken Arrow, OK 74012 800-635-3811 www.microframecorp.com Series 6300...
  • Page 25: General Troubleshooting Chart

    Remote Control Troubleshooting Remote Locked Up Remove Batteries. Press [Menu] 3 Remote control buttons times. Insert batteries and check for stopped responding. operation. Batteries dead Replace batteries. Microframe Corporation 604 South 12 Street Broken Arrow, OK 74012 800-635-3811 www.microframecorp.com Series 6300...
  • Page 26: Appendix To Model 6300 Specifications

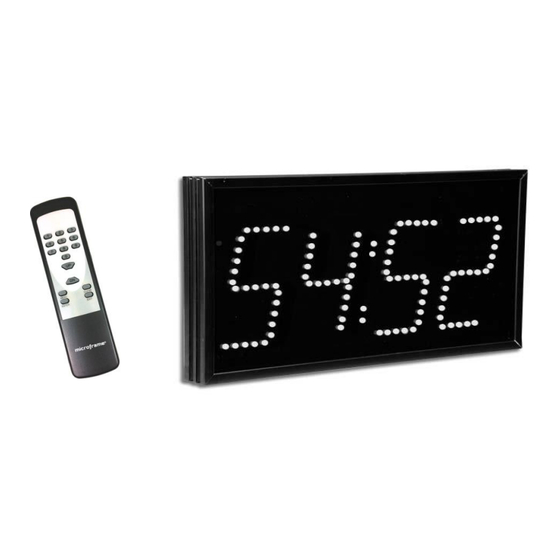

    Model 6300 Specifications Stand-Alone Displays Features The 6300 Series display is a 2, 3, 4, or 6-digit intelligent LED display with infrared capabilities. This display has two inputs for buttons or logic controls and a communica- tions link for communicating with other displays. Displays are powered by a 24-Volt AC adapter (included).
  • Page 27: Wireless Displays

    3.2 lbs 3.9 lbs 5.25 lbs Width "A" Dimension Inches 9.8" 13.2" 16.8" 24" Width "A" Dimension Centimeters 24.9 cm 33.5 cm 42.7 cm 61.4 cm Microframe Corporation 604 South 12 Street Broken Arrow, OK 74012 800-635-3811 www.microframecorp.com Series 6300...
