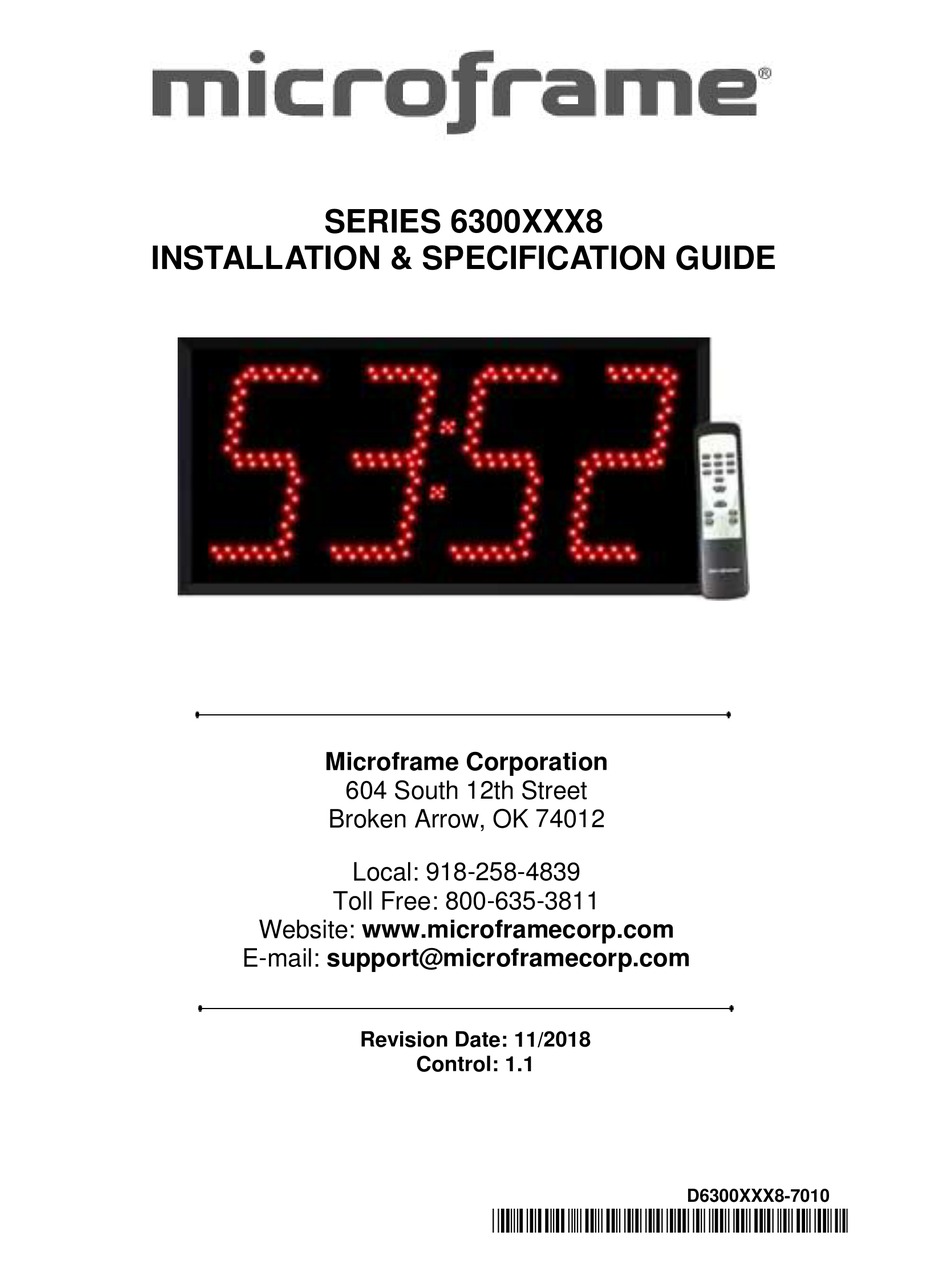

- Page 1 SERIES 6300XXX8 INSTALLATION & SPECIFICATION GUIDE Microframe Corporation 604 South 12th Street Broken Arrow, OK 74012 Local: 918-258-4839 Toll Free: 800-635-3811 Website: www.microframecorp.com E-mail: support@microframecorp.com Revision Date: 11/2018 Control: 1.1 D6300XXX8-7010 *D6300XXX8-7010*...
- Page 2 Your Microframe System is warranted against failure due to defects in workmanship or material for a period of one (1) year from the date of purchase. Microframe Corporation will repair or replace any defective unit. Obvious abuse or mishandling of the unit is NOT covered by this warranty.
-
Page 3: Table Of Contents
Takt Time Detailed Instructions Slave Display Options Setting the Programmable Options Options Table Summary Options Definitions Appendix Wiring Diagram General Troubleshooting Chart 6300XXX8 Specifications 6300XXXW Specifications Microframe Corporation 604 South 12 Street Broken Arrow, OK 74012 800-635-3811 www.microframecorp.com Series 6300XXX8... -
Page 4: Parts List
To connect the power adapter wire to the wall mounted transformer, first loosen the screw-down terminals on the power adapter. Next, slide one spade connector under each terminal and tighten each screw onto the spade connectors. Microframe Corporation 604 South 12 Street... -
Page 5: Using Your Remote Or Push Buttons
Using the Push Buttons Press “Input 1” button to start or stop the timer. Press “Input 2” button to reset the timer. Count direction is determined by the programmed mode. Microframe Corporation 604 South 12 Street Broken Arrow, OK 74012 800-635-3811 www.microframecorp.com... -
Page 6: Quick Settings
1. Using the remote control, press [MENU] “168” [ENTER]. This will set the display at a default Takt interval of 15 seconds. 2. Type the number followed by [ENTER] to set count. 3. Press [DOWN] to START or STOP the Takt time. Microframe Corporation 604 South 12 Street Broken Arrow, OK 74012 800-635-3811 www.microframecorp.com... -
Page 7: Clock Detailed Instructions
As date: [MENU] "232" [ENTER]. Use this only when the master display is also showing date. • Set time units displayed STU seconds: [MENU] "411" [ENTER]. LTU hours: [MENU] "423" [ENTER]. Microframe Corporation 604 South 12 Street Broken Arrow, OK 74012 800-635-3811 www.microframecorp.com... -
Page 8: Count Up/Down Timer Detailed Instructions
Press [ENTER] to accept changes. • Chime Time 2 Using the remote control, press [MENU] “15” [ENTER]. Follow the same steps as for chime 1. Microframe Corporation 604 South 12 Street Broken Arrow, OK 74012 800-635-3811 www.microframecorp.com... - Page 9 Set interval unit displayed: Press [MENU] “24x” [ENTER], where “x” is the interval unit selected • Set time units displayed: STU hours: [MENU] “411” [ENTER]. LTU hours: [MENU] "423" [ENTER]. Microframe Corporation 604 South 12 Street Broken Arrow, OK 74012 800-635-3811 www.microframecorp.com...
-
Page 10: Counter Detailed Instructions
See the "Slave Display Options" section for more information about using multiple displays. • Set slave mode: [MENU] "213" [ENTER]. • Set display format as count: [MENU] “233” [ENTER]. Microframe Corporation 604 South 12 Street Broken Arrow, OK 74012 800-635-3811 www.microframecorp.com... -
Page 11: Takt Time Detailed Instructions
See the "Slave Display Options" section for more information about using multiple displays. • Set slave mode: [MENU] "213" [ENTER]. • Set display format as count: [MENU] “233” [ENTER]. Microframe Corporation 604 South 12 Street Broken Arrow, OK 74012 800-635-3811 www.microframecorp.com... -
Page 12: Slave Display Options
4.2. Largest Time Unit Displayed (LTU) (for 2.3.0 or 2.3.1) 4.3. Leading Zero Suppression 4.4. Colon Flash Rate 6.7. Remote Lockout See the Appendix for a Wiring diagram. Microframe Corporation 604 South 12 Street Broken Arrow, OK 74012 800-635-3811 www.microframecorp.com... -
Page 13: Setting The Programmable Options
To make the internal chime volume louder, increase the value in area 3.3. Press [MENU], “339” (for highest volume) [ENTER]. To make the display chime momentarily when it reaches zero in countdown mode, change area 5.3 to a value of 1. Press [MENU] "531" [ENTER]. Microframe Corporation 604 South 12 Street Broken Arrow, OK 74012 800-635-3811 www.microframecorp.com... -
Page 14: Options Table Summary
4.5.2 2 digit display 4.5.3 3 digit display 4.5.4 4 digit display 4.5.6 6 digit display ** = Option 6.3 Does not apply to this hardware. Please leave at 6.3.0! Microframe Corporation 604 South 12 Street Broken Arrow, OK 74012 800-635-3811 www.microframecorp.com... -
Page 15: Options Definitions
NNNNNN [ENTER] HH=hours, MM=minutes, SS=seconds, DDDD=days N=quantity of the set interval unit 1.5 Set Chime 2 Time / Interval A second chime time/interval. Entry is the same as 1.4. Microframe Corporation 604 South 12 Street Broken Arrow, OK 74012 800-635-3811 www.microframecorp.com... - Page 16 [ENTER]. e.g. if you wrote down "12" in the last step, you will type in "52" [ENTER]. • Display brightness should now match. If not, repeat steps above, using a different offset. Microframe Corporation 604 South 12 Street Broken Arrow, OK 74012 800-635-3811 www.microframecorp.com...
- Page 17 On Rollover event will be triggered. Triggering this event modifies your time! With this in mind, you are free to change this setting even while the display is running. For safety, set this option to days before changing the display format to interval. Microframe Corporation 604 South 12 Street...
- Page 18 Determines what to do when the count down time / interval (2.1.2) reaches zero. • 5.2.0 Stop Stays at zero • 5.2.1 Reload & Stop Load the default countdown time Microframe Corporation 604 South 12 Street Broken Arrow, OK 74012 800-635-3811 www.microframecorp.com Series 6300XXX8...
- Page 19 Alternately starts and stops timer • 6.2.4 Reset Resets timer • 6.2.5 Stop & Reset Stops Timer and Resets it • 6.2.6 Reset & Start Resets Timer and Starts it Microframe Corporation 604 South 12 Street Broken Arrow, OK 74012 800-635-3811 www.microframecorp.com Series 6300XXX8...
- Page 20 This option is for our wireless displays. This adds the ability to set a keyfob address. This allows for independent keyfob/display systems to be used side-by-side. Note: pressing two keyfobs at the same time will still cause interference, because all keyfobs operate on the same frequency. Microframe Corporation 604 South 12 Street...
-
Page 21: Appendix
SERIES 6300XXX8 APPENDIX Microframe Corporation 604 South 12 Street Broken Arrow, OK 74012 800-635-3811 www.microframecorp.com Series 6300XXX8... -
Page 22: Wiring Diagram
Wiring Diagram Microframe Corporation 604 South 12 Street Broken Arrow, OK 74012 800-635-3811 www.microframecorp.com Series 6300XXX8... -
Page 23: General Troubleshooting Chart
Remote Control Troubleshooting Remote Locked Up Remove Batteries. Press [Menu] 3 Remote control buttons times. Insert batteries and check for stopped responding. operation. Batteries dead Replace batteries. Microframe Corporation 604 South 12 Street Broken Arrow, OK 74012 800-635-3811 www.microframecorp.com Series 6300XXX8... -
Page 24: 6300Xxx8 Specifications
43.0 W Current @ 12VDC 2.48A 3.58A Current @ 24VAC 1.24A 1.79A Weight 6.0 lbs 8.1 lbs Width "A" Dimension Inches (Centimeters) 21.3 (54.1) 31.1 (79.0) Microframe Corporation 604 South 12 Street Broken Arrow, OK 74012 800-635-3811 www.microframecorp.com Series 6300XXX8...
