SERIES 3600
Wireless Visual-Paging®
Multi-Number Capable
INSTALLATION & SPECIFICATION GUIDE
Manual No. B3611-7010
Updated: 11/2019
Rev: 1.2
th
Microframe Corporation | 604 South 12
Street | Broken Arrow, OK 74012
Local:918-258-4839 | Toll Free: 800-635-3811
www.microframecorp.com
|
support@microframecorp.com
*B3611-7010*
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Microframe Corporation Visual-Pager 3600 Series
Summary of Contents for Microframe Corporation Visual-Pager 3600 Series

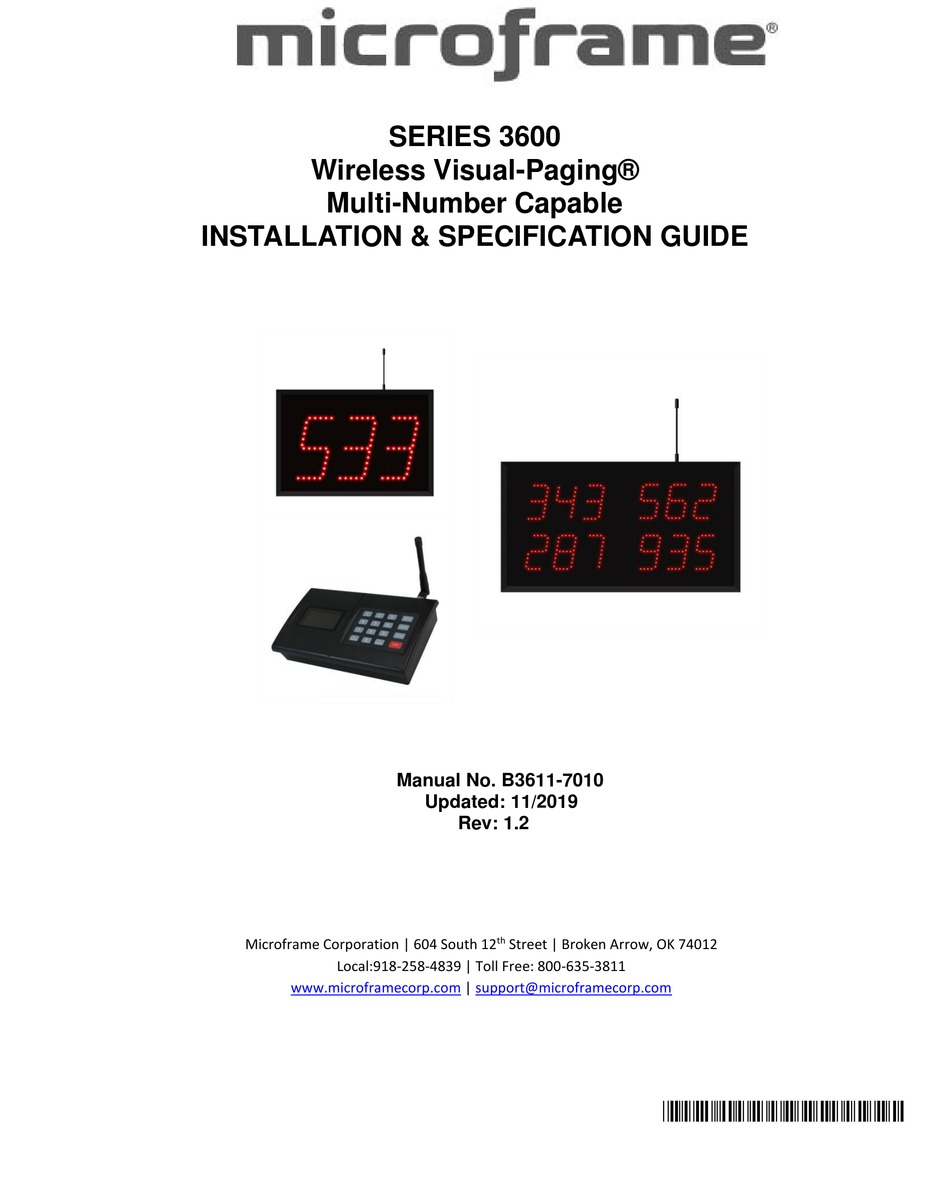

- Page 1 SERIES 3600 Wireless Visual-Paging® Multi-Number Capable INSTALLATION & SPECIFICATION GUIDE Manual No. B3611-7010 Updated: 11/2019 Rev: 1.2 Microframe Corporation | 604 South 12 Street | Broken Arrow, OK 74012 Local:918-258-4839 | Toll Free: 800-635-3811 www.microframecorp.com support@microframecorp.com *B3611-7010*...
- Page 2 Your Microframe System is warranted against failure due to defects in workmanship or material for a period of one (1) year from the date of purchase. Microframe Corporation will repair or replace any defective unit. Obvious abuse or mishandling of the unit is NOT covered by this warranty.
-
Page 3: Table Of Contents
Visual-Pager® Programming Instructions Multi-Number MultiPage Transmitter Transmitter Installation Transmitter Operation Transmitter Programming Options Transmitter Programming Instructions Troubleshooting Appendix A: Changing the Transmitter Type Model 3500 Specifications Model 3430 Specifications Model 3620 Specifications Multipage Transmitter Specifications Series 3600 Microframe Corporation www.microframecorp.com 1.800.635.3811... -
Page 4: Visual-Pager® Displays

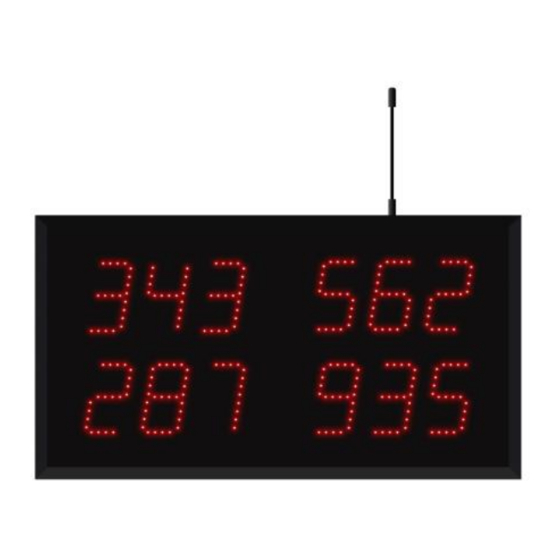

Number MultiPageTransmitter. The display has 2.5-inch tall digits viewable up to 80 feet and is encased in an extruded-aluminum case. Unlimited wireless displays may be incorporated, and each display includes its own power adapter. Series 3600 Microframe Corporation www.microframecorp.com 1.800.635.3811... -
Page 5: Visual-Pager® Installation, Operation, And Options
Table 14’s food needs to be picked up immediately. Chime Setting Determines the duration an external chime will sound. The chime is triggered the first time a new number is displayed. See programming instructions. Series 3600 Microframe Corporation www.microframecorp.com 1.800.635.3811... -
Page 6: Visual-Pager® Programming Instructions
Setting area 99 to a value of 98 will clear all numbers from the Visual-Pager® display. RESETTING DISPLAY TO FACTORY DEFAULTS Setting area 99 to a value of 99 will reset all program areas to factory defaults. Series 3600 Microframe Corporation www.microframecorp.com 1.800.635.3811... - Page 7 You should not have to repeat this step unless your paging system changes. Note: The display will accept this command only within the first 30 seconds after turn-on. Series 3600 Microframe Corporation www.microframecorp.com 1.800.635.3811...
-
Page 8: Multi-Number Multipage Transmitter
Compatible with Model 3520, 3530, 3620, and 3430 Visual-Pager® Displays. Size: 9” x 7.5” footprint Supplied with antenna, 12VDC power adapter, mounting wedge, and protective keypad cover. Baud rate: 512, 1200 Range: ¼ to ½ mile typical indoors, 2 miles maximum Series 3600 Microframe Corporation www.microframecorp.com 1.800.635.3811... -
Page 9: Transmitter Installation
The performance of your system will be effected by: foil backed wallboard, metal mesh, wire-reinforced glass, metal sheeting, large mirrors, suspended ceilings, elevator shafts, etc. These can all reflect and thereby reduce the signaling capability of the transmitter. Series 3600 Microframe Corporation www.microframecorp.com 1.800.635.3811... -
Page 10: Transmitter Operation
“2,” the transmitter display shows “Cancel: 12” for one second and disappears (see Figure 2). The number “12” will be removed from the transmitter screen and the Visual-Pager® display. Fig. 2 Series 3600 Microframe Corporation www.microframecorp.com 1.800.635.3811... -
Page 11: Transmitter Programming Options
To access these programming options for the transmitter, press [SETUP] on the keypad to enter programming mode. You may scroll through all seven options by using the [*] or [#] buttons. Settings shown are factory defaults. Series 3600 Microframe Corporation www.microframecorp.com 1.800.635.3811... -
Page 12: Transmitter Programming Instructions
Allows users to toggle the setting of the transmitter for use with 2-digit or 3-digit Visual-Pager® displays. * = The Base ID of a system can be thought of as a neighborhood with house addresses corresponding to pager numbers. Series 3600 Microframe Corporation www.microframecorp.com 1.800.635.3811... -
Page 13: Troubleshooting
2. One or more Option areas have become corrupted. It is recommended that you write down the correct settings, reset defaults, and then make any changes to settings that are necessary. (See Programming Options.) Please call Microframe if you need assistance at (800) 635-3811. We will be happy to help you. Series 3600 Microframe Corporation www.microframecorp.com 1.800.635.3811... -
Page 14: Appendix A: Changing The Transmitter Type
• Unplug power • While pressing “*”, 0, and “#” buttons, plug in power. • At the password prompt, type “0320” [Enter]. • Select 1) 3500 or 2) 3600. • Press [Enter] to save. Series 3600 Microframe Corporation www.microframecorp.com 1.800.635.3811... -
Page 15: Model 3500 Specifications
3.5 watts 4.6 watts 6.8 watts Weight 2.5 lbs 3.2 lbs 3.9 lbs 5.25 lbs Width "A" Dimension Inches 9.8" 13.2" 16.8” 24” Width "A" Dimension Centimeters 24.9 cm 33.5 cm 42.7 cm 61.4 cm Series 3600 Microframe Corporation www.microframecorp.com 1.800.635.3811... -
Page 16: Model 3430 Specifications
Number Capacity Twenty-five 3-Digit Numbers (rotating) Viewing Distance 80 Feet Indoors 16.8” x 9.1” x 1.5” Dimensions Weight 3.5 lbs Related Products Model 3611 MultiNumber Model 3530 Visual-Pager® Display MultiPage Transmitter Sold separately. Sold separately. Series 3600 Microframe Corporation www.microframecorp.com 1.800.635.3811... -
Page 17: Model 3620 Specifications
Number Capacity Thirty 2-Digit Numbers (rotating) Viewing Distance 80 Feet Indoors 16.8” x 9.1” x 1.5” Dimensions Weight 3.5 lbs Related Products Model 3611 MultiNumber Model 3520 Visual-Pager® Display MultiPage Transmitter Sold separately. Sold separately. Series 3600 Microframe Corporation www.microframecorp.com 1.800.635.3811... -
Page 18: Multipage Transmitter Specifications
WDC-ISTATION-N. Complies with Part 90 of FCC Rules. Coverage Area.………………………………….. Typically 1/2 miles indoors. Max 2 miles. Mounting……….…………………………………. Desk or Wall Mount Dimensions………………………………………. 9.5” x 6” x 2.5” (Excludes antenna) Max Numbers Shown on Display……………… Max Pagers in Re-Page Queue……………….. Series 3600 Microframe Corporation www.microframecorp.com 1.800.635.3811...
