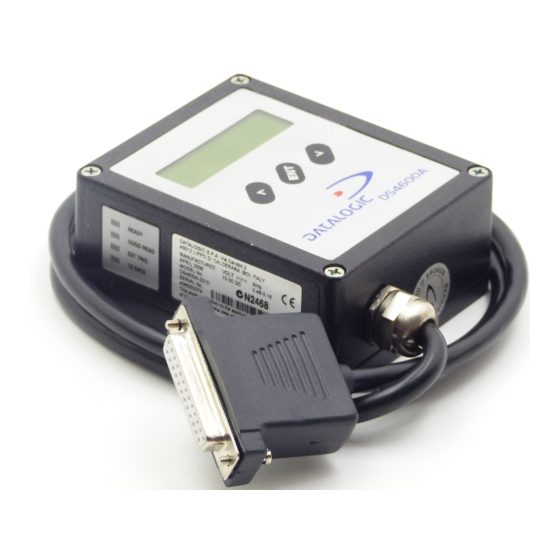

Datalogic Laser Barcode Reader DS4600A-2XX5 Quick Manual

General View:
1
11
DS4600A - 2XXX Models
5
10
8
9
Cable with 25-pin Connector
1
Laser Beam Output Window
2
Accessory Mounting Holes
3
Warning Label
4
5 Mounting Holes
Data TX LED
6
For further details on product installation, see the
complete Installation Manual available on the WinHost
CD included with this product.

Power Supply:

- This product is intended to be installed by Qualified
Personnel only.
- Models DS4600A-XXX0:
This device is intended to be supplied by a UL Listed
Direct Plug-in Power Unit marked "Class 2", rated 10-30
V minimum, 0.60 A.
This device may also be supplied by a UL Listed Power
Unit marked "Class 2" or LPS power source which
supplies power directly to the scanner via the 25-pin
connector.
- Model DS4600A-2XX5:
This device is intended to be supplied by a UL Listed
Direct Plug-in Power Unit marked "Class 2", rated 24 V
minimum, 0.50 A.
This device may also be supplied by a UL Listed Power
Unit marked "Class 2" or LPS power source which
supplies power directly to the scanner via the 25-pin
connector.

WEEE Compliance:

4
6
7
DS4600A - 3XXX Models
Figure A
External Trigger LED
7
8 Good Read LED
Ready LED
9
Warning and Classification Labels
10
Keypad
11
12 Display

Laser Safety:

12
The scanner is classified as a Class 2 laser
product according to EN 60825-1 regulations
and as a Class II laser product according to
CDRH regulations.
For installation, use and maintenance it is not
necessary to open the device.
There is a safety device which allows the
2
laser to be switched on only if the motor is
rotating above the threshold for its correct
3
scanning speed.
The laser beam can be switched off through a
software command (see also the WinHost
Help On-Line).
AVOID EXPOSURE
LASER LIGHT IS EMITTED
FROM THIS APERTURE
CAUTION-CLASS 3B
LASER LIGHT
2
WHEN OPEN
EXPOSURE TO BEAM
DATALOGIC S.p.A. Via Candini, 2
40012 LIPPO DI CALDERARA (BO) ITALY
Model No.
Volt
Manufactured
This product conforms to the applicable requirements of
21CFR1040 at the date of manufacture.
Warning and device class labels
The laser diode used in this device is classified
as a class 3B laser product according to EN
60825-1 regulations and as a Class IIIb laser
product according to CDRH regulations. As it is
not possible to apply a classification label on
the laser diode used in this device, the
following label is reproduced below.
Any violation of the optic parts in particular
can cause radiation up to the maximum level
of the laser diode (30 mW at 630 to 680 nm).
DS4600A QUICK GUIDE
AVOID
Serial No.
Amp.
LASER LIGHT
DO NOT STARE INTO BEAM
CLASS 2 LASER PRODUCT
MAXIMUM OUTPUT RADIATION 1 mW
EMITTED WAVE LENGTH 630~680 nm
TO EN 60825-1 (2001)
LASER LIGHT
AVOID EXPOSURE TO BEAM
CLASS 3B LASER PRODUCT
MAX. OUTPUT RADIATION 30 mW
EMITTED WAVE LENGTH 630~680 nm
TO EN 60825-1 (2001)
Laser diode class label
