INSTALLATION INSTRUCTIONS
BEFORE YOU BEGIN
All information is based on the latest product information available at the time of publication. Kohler Co. reserves
the right to make changes in product characteristics, packaging, or availability at any time without notice.
Please leave these instructions for the consumer. They contain important information.
NOTES:
1. Shut off the water supplies to the fitting.
2. Observe all local plumbing and building codes.
3. Shower arm 15396T-B, 15397T-B, 15398T-B & 15399T-B can be matched with square escutcheon 21776T
according to the needs.

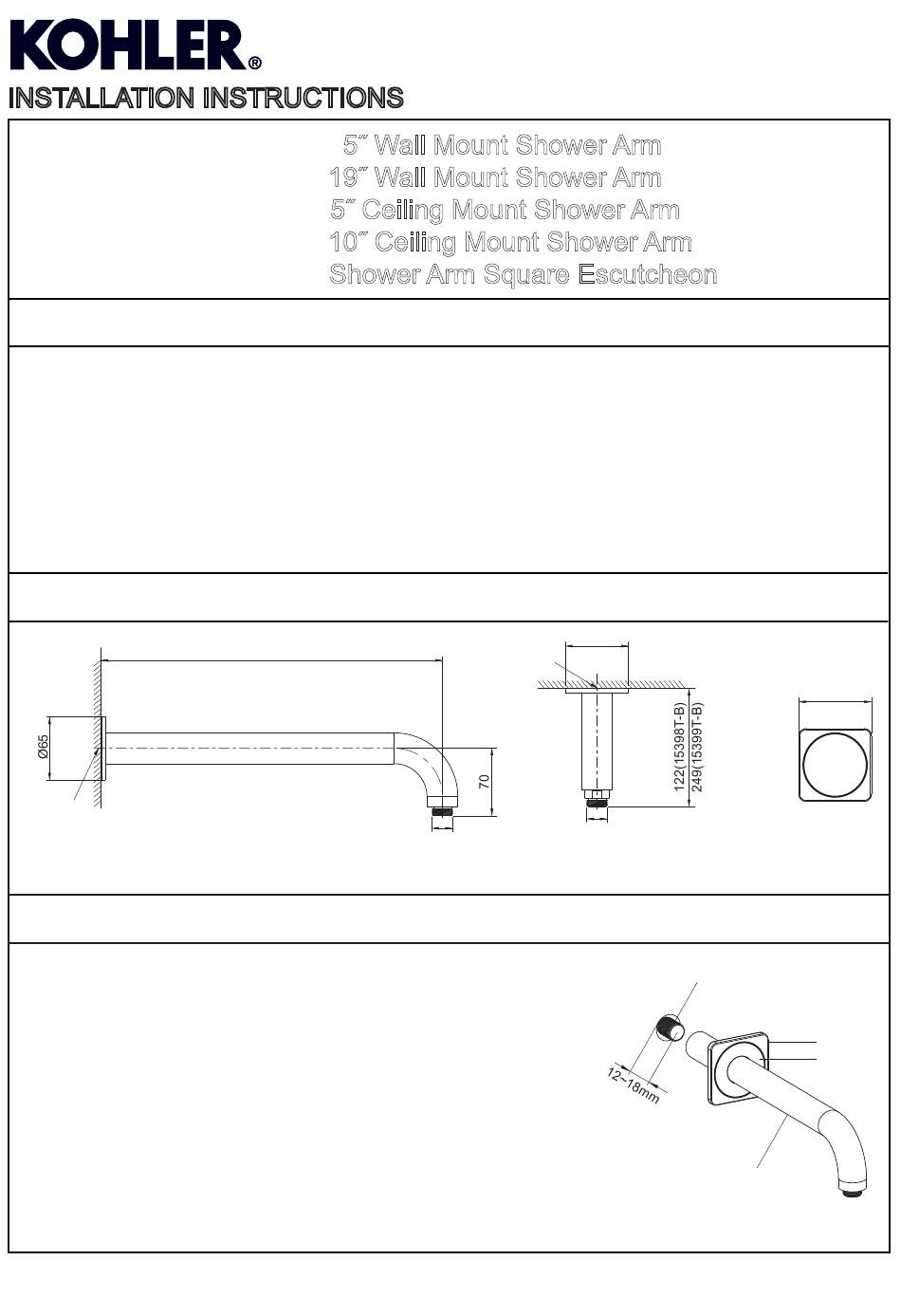

ROUGH-IN DIMENSIONS
Finished Wall
G1/2˝
15396T-B & 15397T-B
INSTALLATION
Only for 15396T-B & 15397T-B
Apply tape or sealant to the G1/2
˝ nipple to extend 12-18mm beyond the finished wall.
the G1/2
Slide the round escutcheon(3) onto the shower arm(2). If installing the
square escutcheon(4, 21776T), slide the square escutcheon to the round
escutcheon.
Thread the shower arm to the G1/2
the shower arm downwards. Push the escutcheon against the finished wall.
Flush both water supplies through the shower arm for about one minute to
remove debris.
1346136-2A-B
15396T-B 15˝ Wall Mount Shower Arm
15397T-B 19˝ Wall Mount Shower Arm
15398T-B 5˝ Ceiling Mount Shower Arm
15399T-B
10˝ Ceiling Mount Shower Arm
21776T
Shower Arm Square Escutcheon
352(15396T-B)
454(15397T-B)
˝ nipple(1, not provided) threads. Install
˝ nipple, tighten by strap wrench. Adjust
Ø65
G1/2˝
G1/2˝
G1/2˝
15398T-B & 15399T-B
Finished Wall
75×75
21776T
1
4
3
2
1
