Model #
3500d

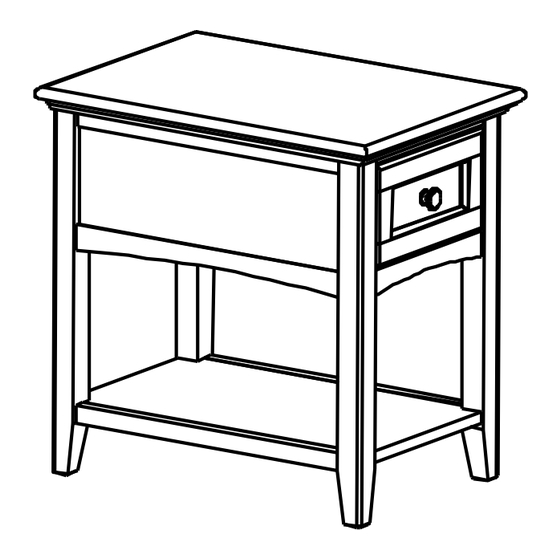

McKenzie Chair
Side Table
GAC = Glazed Antique Cherry finish
JAV = Java finish
PEC = Pecan finish
Assembly Instructions
Thank you for allowing us to help you furnish your
home. We are certain you will be delighted with
your new furniture for many years to come.
If you ever have questions about your furniture, please do not hesitate to contact us. In the unlikely event you need a
replacement part; we can make those parts available through an authorized Whittier Wood Furniture dealer. If you
cannot order replacement parts through your dealer, please contact our customer service department.
Customer Service: 800-653-3336 • Outside the U.S.: 541-687-0213
CUSTOMER SERVICE
Hours: Our friendly customer service staff can be reached:
Monday-Friday 8:00 a.m. to 5:00 p.m. (Pacific Time).
You may leave a message 24 hours a day, seven days a week.
Fax: 541-687-2060• Email: info@whittierwood.com
P.O. Box 2827
Eugene, OR 97402 USA
IMPORTANT NOTES:
For normal household use only. Not recommended for commercial use.
Do not climb, sit or stand on this piece of furniture.
Unload items before you move this unit.
Do not overload the drawer or shelf.
Drilling, sawing, sanding or machining wood products can expose you to
wood dust, a substance known to the state of California to cause cancer.
Avoid inhaling wood dust or use a dust mask or other safeguards for
personal protection.
For more information go to: www.p65warnings.ca.gov/wood
This product can expose you to chemicals, including formaldehyde,
which are known to the State of California to cause cancer.
For more information go to: www.p65warnings.ca.gov/furniture
DESIGN SUBJECT TO CHANGE WITHOUT NOTICE.
Production Code :
VN
WARNING
10/23
Advertisement
Related Manuals for Whittier Wood McKenzie 3500 Series
Summary of Contents for Whittier Wood McKenzie 3500 Series
- Page 1 If you ever have questions about your furniture, please do not hesitate to contact us. In the unlikely event you need a replacement part; we can make those parts available through an authorized Whittier Wood Furniture dealer. If you cannot order replacement parts through your dealer, please contact our customer service department.
-
Page 2: Parts List
3500d McKenzie Chair Side Table Parts List Please identify the parts and check that quantities received match those on this list. If you need to replace a part, refer to the following letter and part name. Part Description Quantity Case Assembly Top Assembly (attached) Shelf Assembly Drawer (inserted) - Page 3 3500d McKenzie Chair Side Table Assembly Instructions Tools Required: Phillips Screwdriver, 9/16" or Adjustable Wrench Tool Provided: Leveler Adjustment Key in the Zip bag taped to the Owner’s Manual and Safety Guide. Remove the Drawers (F) from the Case (Ac). To remove the drawers, pull up on the left side of the Drawer Release Lever while pushing down on the right Drawer Release Lever.
- Page 4 3500d McKenzie Chair Side Table Assembly Instructions Using the dowels as guides, insert the dowels in the Shelf (C) into the holes in the Legs (D). See Figure 3. While holding the shelf stable, place a Leg (D) against the Case and Shelf so that the Insert Nut aligns with the Corner Block and insert the Dowel in the Shelf into the hole in the leg.
- Page 5 3500d McKenzie Chair Side Table Assembly Instructions Turn the table upright and insert the Drawer. Fig. 5a Fig. 5 Loose Tight Place the table at its final destination. Use the Leveler Adjustment Key (ZG), found in the Zip bag taped to the Owner’s Manual and Safety Guide to rotate the Slotted Levelers (ZF) on the bottoms of the legs until the table is level.
