Tube Installation

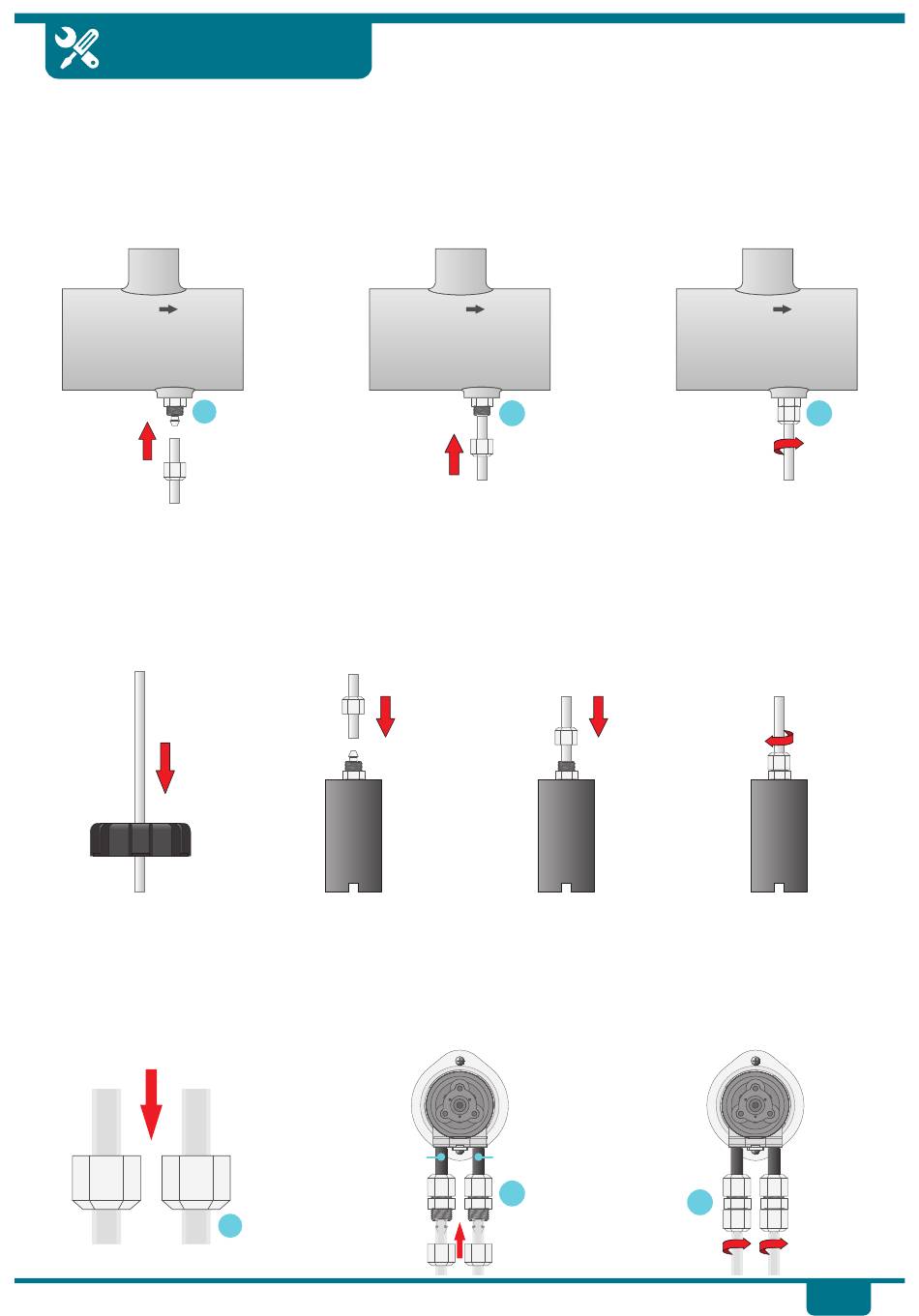

pH TEE TUBE INSTALLATION
u Remove the nut from the non return valve
on the Tee piece. Slip the Nut over the tube.
Push the tube firmly onto the tube fitting.
v
Flow
DRUM WEIGHT TUBE INSTALLATION
1. Push the end of the drum weight tube
through the drum lid that was supplied with
the pH Drive.
DOSING PUMP TUBE INSTALLATION
1. Cut Suction and Supply tubes to required
length from the single length of clear PVC
tube suppled with the pH Drive.
2. Fit compression nuts over the two tubes.
1
Suction tube
on left side
2
w Tighten the nut over the tube. Tighten firmly
with fingers. If the tubing can still be easily
pulled out, use a tool to tighten an extra 1/2
turn to ensure that it is securely fastened.
Flow
2
2. Fit the tube onto the drum weight tube
fitting in the same way as described in the
pH Tee Tube Installation section above and
illustration below.
3. Push Suction and Supply tubes onto dosing
pump fittings.
4. Tighten the nut over the tube. Tighten firmly
with fingers.
Delivery tube
on right side
3
Flow
3
4
