- Page 1 Drive Automatic pH Controller Instruction Manual Drive Ensure Acid is diluted, as per page 6 of these instructions. www.maytronics.com.au...
-
Page 2: Table Of Contents
GETTING TO KNOW YOUR pH DRIVE ........ -
Page 3: Cautions & Warnings
As for all pool equipment and chemicals, The pH Drive must be serviced only by an the pH Drive should be installed out of authorised service agent. Please contact reach of children. Children must not have... -
Page 4: Getting To Know Your Ph Drive

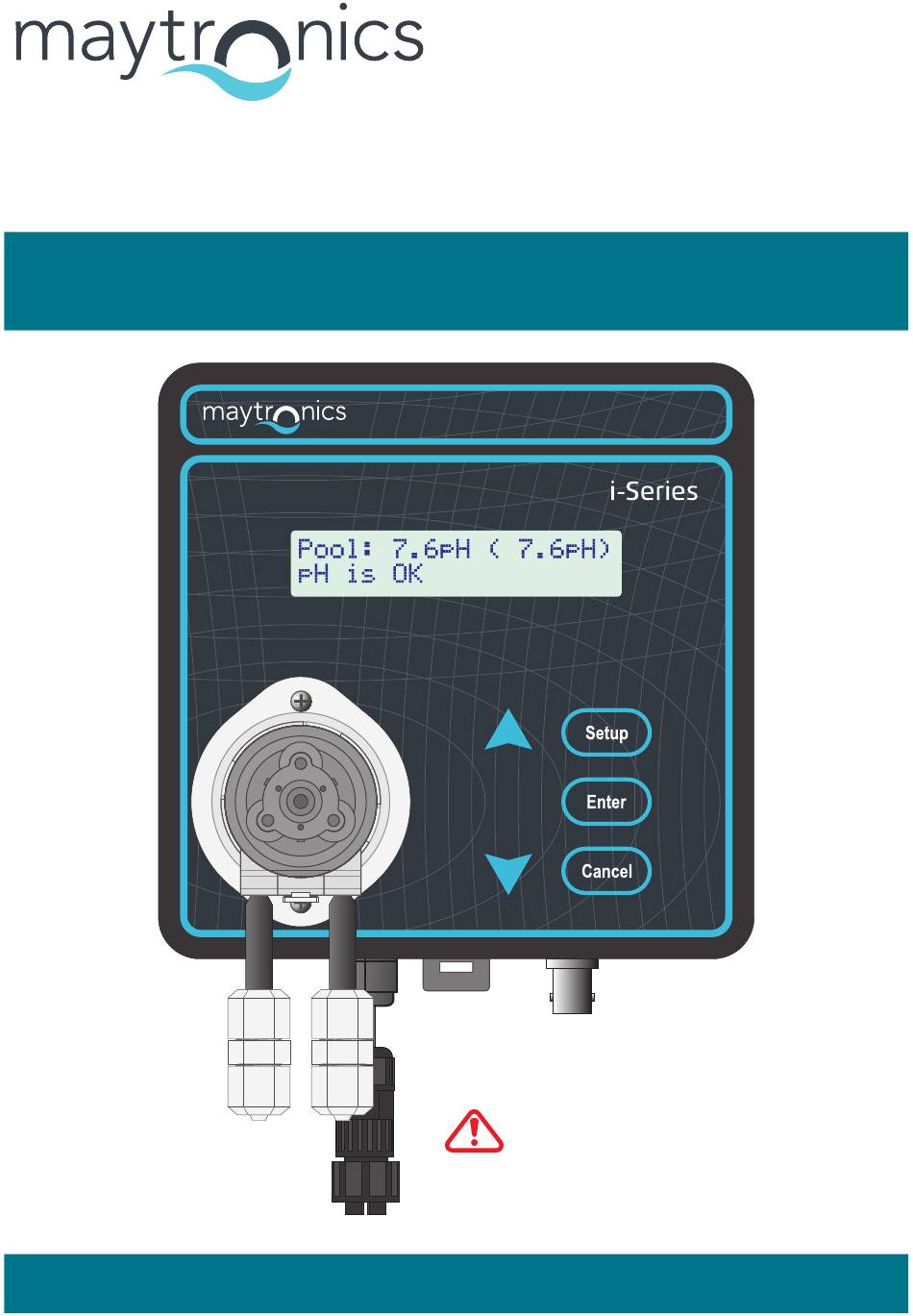

Drive Getting to know your pH Drive DISPLAY Drive User-friendly plain text menu and help system. KEYPAD Used for setup and maintenance of your pH Drive. DOSING PUMP High quality, low maintenance peristaltic dosing pump. POWER CONNECTOR IP65 Waterproof connector plugs... -
Page 5: Ph Drive Display
OK.........The current pH of the pool is within the Set Point. No dosing is required at this time. Adding Acid (or Base) ....The pH Drive is operating the dosing pump to add acid or base to correct the pH of the pool back to the Set Point. The default setup of the pH Drive is to add acid. -
Page 6: Acid Safety & Dilution
Alternatively, this section provides information on the safe handling and dilution of acid to use with your pH Drive. Please take the time to read and understand this section, to prevent injury or illness due to acid spillage. -
Page 7: Ph Tee Installation
Tee Installation Install the pH Tee first, so that the glue can set while you are installing the pH Drive unit itself. ! The pH Tee should be installed before an Pre-Installation Checklist Ozone venturi, Salt Chlorinator cell, Electro... -
Page 8: Ph Drive Installation
MOUNT pH DRIVE Hook the pH Drive mounting clip onto the top rail of the mounting plate. Pull the mounting clip down pull pushing the pH Drive against the bottom rail of the mounting plate. Allow the mounting clip to lock in place behind the bottom rail. -
Page 9: Tube Installation
3. Push Suction and Supply tubes onto dosing length from the single length of clear PVC pump fittings. tube suppled with the pH Drive. 4. Tighten the nut over the tube. Tighten firmly 2. Fit compression nuts over the two tubes. -
Page 10: Ph Sensor Installation
All installation steps are now complete. It is recommended that you use the Quick Dose function with 1 Litre of fresh water to test the system for leaks before using your pH Drive with acid. -
Page 11: Ph Drive Settings
! Press Enter to start dosing, or press Cancel to quit. ! The pH Drive counts down the litres as it doses. ! Every 4 minutes of dosing pump operation, the pH Drive will switch it off for 1 minute, to allow the squeeze tube... -
Page 12: Setting The Ph Set Point
! Press Enter to save the new setting, or press Cancel to quit without saving. NOTES If the pH Drive does not keep up with acid or base demand, and the Alarm sounds, increase the Pool Size setting by one step and check in 2 days. -
Page 13: Enabling Or Disabling The Ph Alert Function
Drive Settings Enabling or Disabling the pH Alert Function The pH Drive will sound an alarm and display an alert if the pH has been outside the set point for 4 hours or more. If this function is disabled, the alarm will never be triggered and the pH Drive may over dose acid or base. -
Page 14: Ph Sensor Calibration
DO NOT calibrate until the “X” changes to a “ü” The pH Drive can be calibrated in one of two ways: 1. Inline Calibration This is done by obtaining an accurate pH ! Press ‡... -
Page 15: Ph7.0 Buffer Calibration
4. Calibration Procedure 4. Calibration Procedure 4. Calibration Procedure ! Switch the pH Drive on by activating the ! Switch the pH Drive on by activating the ! Switch the pH Drive on by activating the ! Switch the pH Drive on by activating the... -
Page 16: Changing Pump Cassette
Drive ! Switch off the pH Drive and ensure that the ! Switch off the pH Drive and ensure that the ! Switch off the pH Drive and ensure that the ! Switch off the pH Drive and ensure that the... -
Page 17: Troubleshooting
Replace dosing pump cassette as needed (see page 16). IF YOU NEED TO RETURN YOUR pH DRIVE FOR SERVICE OR REPAIRS AT ANY TIME, PLEASE USE THE QUICK DOSE FUNCTION (PAGE 11) TO DOSE 1 LITRE OF FRESH WATER THROUGH THE SYSTEM BEFORE SENDING BACK. THIS WILL STOP ACID LEAKING FROM THE PUMP DURING TRANSPORT (WHICH WOULD DAMAGE YOUR UNIT OR THE PACKAGING, VOIDING WARRANTY), AND IS ALSO A SAFETY HAZARD FOR OUR TECHNICIANS. - Page 18 If problem persists, return the unit for repair. The pH Drive has not been able to obtain data from the pH input. Press Cancel to restart or switch the pH Drive off for 5 seconds, then...
-
Page 19: Warranty
Web ..... . . www.maytronics.com.au ABN......87 148 058 495...
