pH Drive

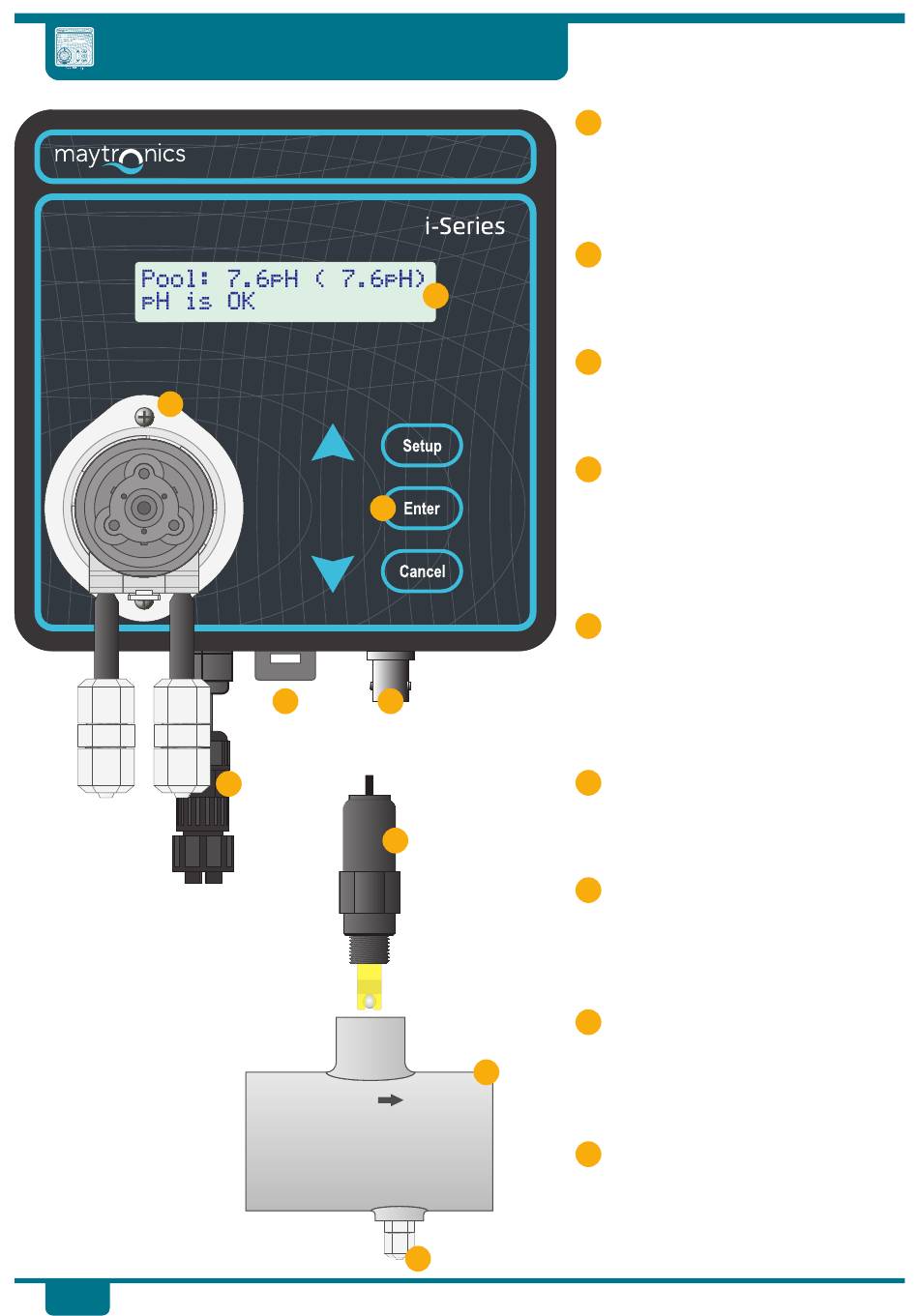

Getting to know your pH Drive

3
4
4
pH Drive
1
2
5 6
7
Flow
9
DISPLAY
1
User-friendly plain text menu and
help system.
KEYPAD
2
Used for setup and maintenance of
your pH Drive.
DOSING PUMP
3
High quality, low maintenance
peristaltic dosing pump.
POWER CONNECTOR
4
IP65 Waterproof connector plugs
into May t ronic s Ozone Sw im
systems that are equipped with the
matching outlet.
MOUNTING CLIP
5
Pull the clip downwards when
mounting the pH Drive to the
mounting rail, or to unclip when
removing.
pH SENSOR SOCKET
6
Connect the pH Sensor to the BNC
pH Sensor socket.
pH SENSOR
7
Commercial quality pH Sensor
screws into pH Tee to firm hand
tightness.
pH TEE
8
A single pH Tee for installing the pH
8
Sensor and non-return injection
valve.

NON-RETURN VALVE

9
High quality polypropylene non-
return injection valve.
