- Page 1 Drive i-Series Automatic pH Controller Instruction Manual Drive Ensure Acid is diluted, as per page 6 of these instructions. www.maytronics.com.au...
-
Page 2: Table Of Contents
The pH Drive is quite easy to operate, and this manual will explain each of the steps clearly. Troubleshooting and hints are also included to allow you to get the most from your unit. If you require assistance at any stage, please contact your Maytronics Authorised Dealer. Page CAUTIONS &... -
Page 3: Cautions & Warnings
Drive should be installed out of authorised service agent. Please contact reach of children. Children must not have your Maytronics Authorised Dealer for access to operating the pH Drive without detail s . Despite being low-voltage adult supervision. -
Page 4: Getting To Know Your Ph Drive

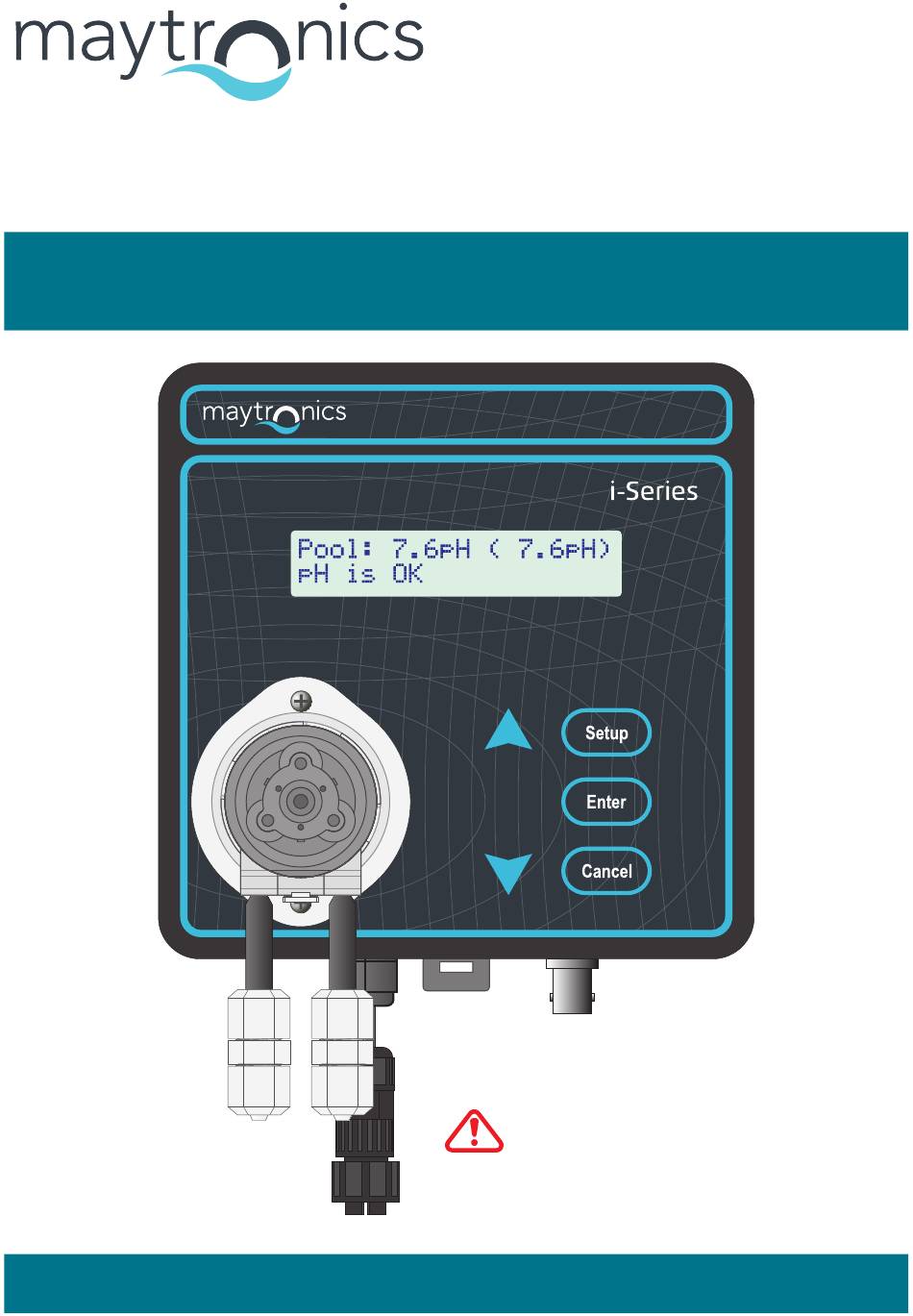

pH Drive Getting to know your pH Drive DISPLAY Drive User-friendly plain text menu and help system. KEYPAD Used for setup and maintenance of your pH Drive. DOSING PUMP High quality, low maintenance peristaltic dosing pump. POWER CONNECTOR IP65 Waterproof connector plugs into May t ronic s Ozone Sw im systems that are equipped with the matching outlet. -
Page 5: Ph Drive Display
pH Drive Display POOL pH This is the readout of the current pH of your pool. SET POINT The pH Drive maintains the pool pH at the programmed Set Point. INFORMATION LINE This is where pH Drive indicates helpful messages and warnings, so you know what’s happening at all times. -
Page 6: Acid Safety & Dilution
Acid Safety & Dilution Maytronics recommends using pre-diluted acid purchased from your reputable pool shop or service agent. Alternatively, this section provides information on the safe handling and dilution of acid to use with your pH Drive. Please take the time to read and understand this section, to prevent injury or illness due to acid spillage. -
Page 7: Ph Tee Installation
pH Tee Installation Install the pH Tee first, so that the glue can set while you are installing the pH Drive unit itself. ! The pH Tee should be installed before an Pre-Installation Checklist Ozone venturi, Salt Chlorinator cell, Electro ! You will require a saw suitable for cutting Oxidizing Cell or Liquid Chlorine injection PVC pipe, PVC Primer and PVC Glue. -
Page 8: Ph Drive Installation
pH Drive Installation Pre-Installation Checklist ! The pH Drive unit MUST be mounted Ensure that the pH Drive is protected from vertically, with the cables at the bottom, in direct sunlight and weather. Although the order to be weather resistant. Any water unit has a weather resistant design, ingress due to the unit being incorrectly damage from long term exposure is not... -
Page 9: Tube Installation
Tube Installation pH TEE TUBE INSTALLATION Remove the nut from the non return valve Tighten the nut over the tube. Tighten firmly on the Tee piece. Slip the Nut over the tube. with fingers. If the tubing can still be easily pulled out, use a tool to tighten an extra 1/2 Push the tube firmly onto the tube fitting. -
Page 10: Ph Sensor Installation
Connect Power Lead Drive Locate the pH Drive power socket on your Maytronics Ozone Swim system. Remove the dust cover. The keyway of the power socket is towards the front of the unit. Align the pH Drive plug with the keyway of the socket and push in. -
Page 11: Ph Drive Settings
pH Drive Settings ! Press Setup to enter the user-friendly menu system. ! Press ‡ and ˆ to scroll through menu choices, then press Enter to select the required option. ! Press Enter to save changes. ! Press Cancel to quit without saving changes at any screen. ! All setup screens time out if no key has been pressed for 30 seconds. -
Page 12: Setting The Ph Set Point
pH Drive Settings Setting the pH Set Point The default pH Set Point of 7.6 is suitable for most pool systems. You should only change this setting if advised by a pool professional. ! Press Setup to enter the user-friendly menu system, then press ‡... -
Page 13: Enabling Or Disabling The Ph Alert Function
pH Drive Settings Enabling or Disabling the pH Alert Function The pH Drive will sound an alarm and display an alert if the pH has been outside the set point for 4 hours or more. If this function is disabled, the alarm will never be triggered and the pH Drive may over dose acid or base. -
Page 14: Ph Sensor Calibration
pH Sensor Calibration The pH Drive will display a reminder to 2. Calibration Procedure calibrate the pH Sensor approximately every ! Press Setup to enter the user-friendly 12 months: menu system, then press ‡ and ˆ until Calibrate pH Sensor is selected. ! Press Enter to go to the Calibration screen. -
Page 15: Ph7.0 Buffer Calibration
pH Sensor Calibration pH7.0 Buffer Calibration 4. Calibration Procedure ! Switch the pH Drive on by activating the The pH Drive is powered from your Ozone pool pump output of the Ozone Swim unit. Swim unit. The pH Drive will need power for ! Press Setup to enter the user-friendly calibration, but with the pH Sensor removed menu system, then press ‡... -
Page 16: Changing Pump Cassette
Changing Pump Cassette The pH Drive monitors the running time of The pH Drive monitors the running time of The pH Drive monitors the running time of The pH Drive monitors the running time of The pH Drive monitors the running time of The pH Drive monitors the running time of The pH Drive monitors the running time of The pH Drive monitors the running time of... -
Page 17: Changing Pump Squeeze Tube
Changing Pump Squeeze Tube When the “Change Pump Cassette” reminder is displayed by the pH Drive, the Squeeze Tube may When the “Change Pump Cassette” reminder is displayed by the pH Drive, the Squeeze Tube may When the “Change Pump Cassette” reminder is displayed by the pH Drive, the Squeeze Tube may When the “Change Pump Cassette”... -
Page 18: Troubleshooting
Troubleshooting Symptom Possible Causes and Remedies Unstable or inaccurate pH Sensor is dirty. Disconnect pH Sensor from the pH Drive, then unscrew sensor from pH readings the pipe. Wipe the glass bulb with a soft tissue soaked with methylated spirits. Soak the tip of the sensor in diluted Hydrochloric acid (for example, from your pH Drive diluted acid drum). - Page 19 Troubleshooting Alert Messages Possible Causes and Remedies pH has been outside of Set Point for more than 4 hours of operation. Please refer to page 13 for a complete list of possible causes and remedies when the pH Alert message is flashing. The pH Drive will not attempt any further acid addition until the alarm is cleared.
-
Page 20: Warranty
Web ..... . . www.maytronics.com.au ABN......87 148 058 495...
