How to Remove the Battery

1. While the battery is attached to the PLANIX R1, take the R1
in one hand and grasp the base on the side opposite the
battery compartment.
2. Using the other hand, simultaneously press and hold both
battery door buttons (see Figure 4) using a finger and
thumb.
3. While pressing both battery door buttons, pull the battery
out of the battery compartment.
Note: It should only be possible for the battery to be removed by following the instructions above. If the
battery can be otherwise removed or falls out unexpectedly, it may be a sign that the battery or battery
compartment is damaged.

How to Replace the Battery

1. Remove the original battery from the 'PLANIX R1'
battery door by pulling the retaining tab away and
then pulling out the battery (see Figure 5).
2. Insert the new battery into the PLANIX R1 battery
cover so the retaining tab securely snaps it in place.

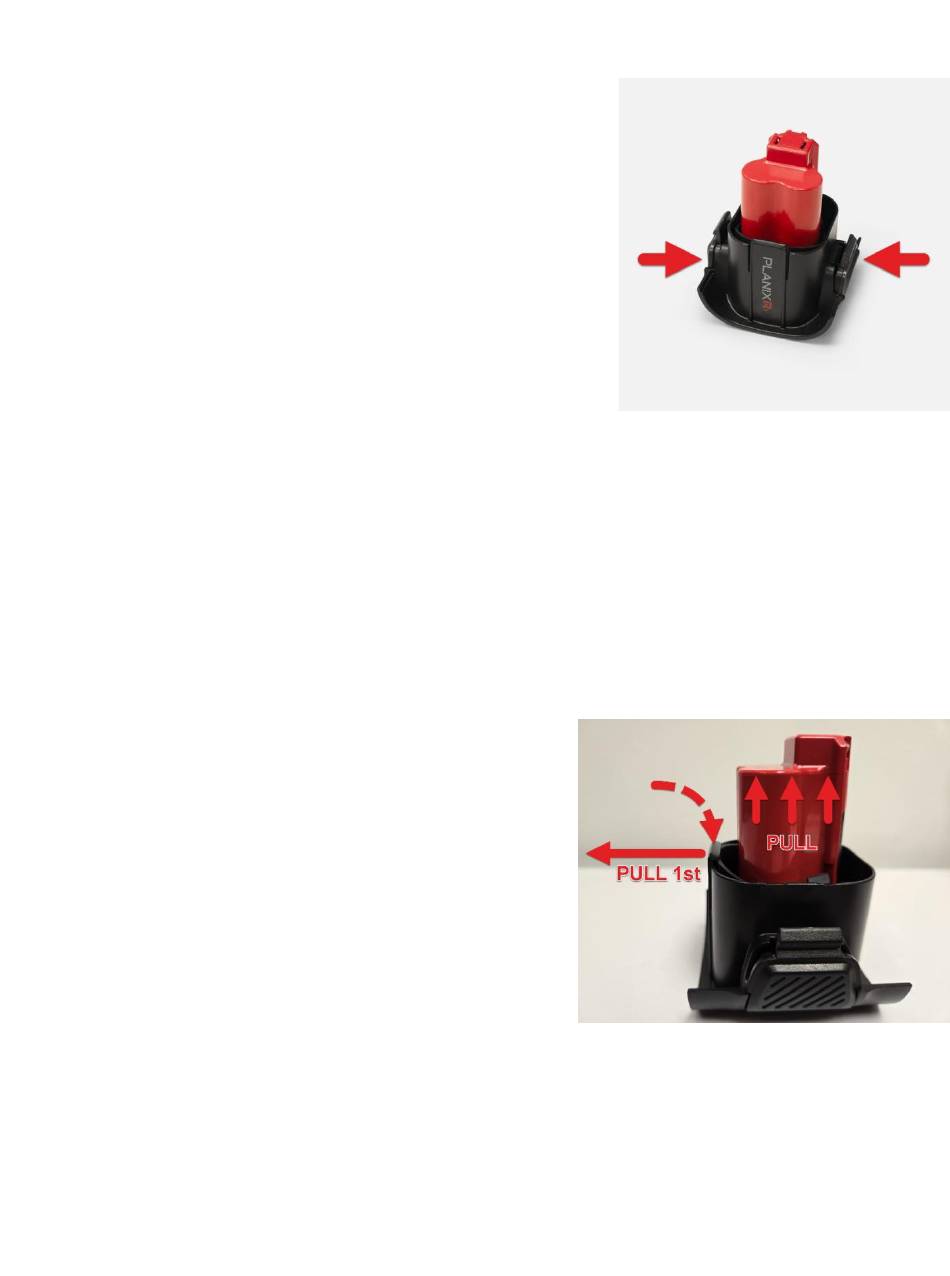

Figure 4 - Battery door button locations
Figure 5 - Removing battery from cover
