Summary of Contents for MRMC AUTOJIB SYSTEM

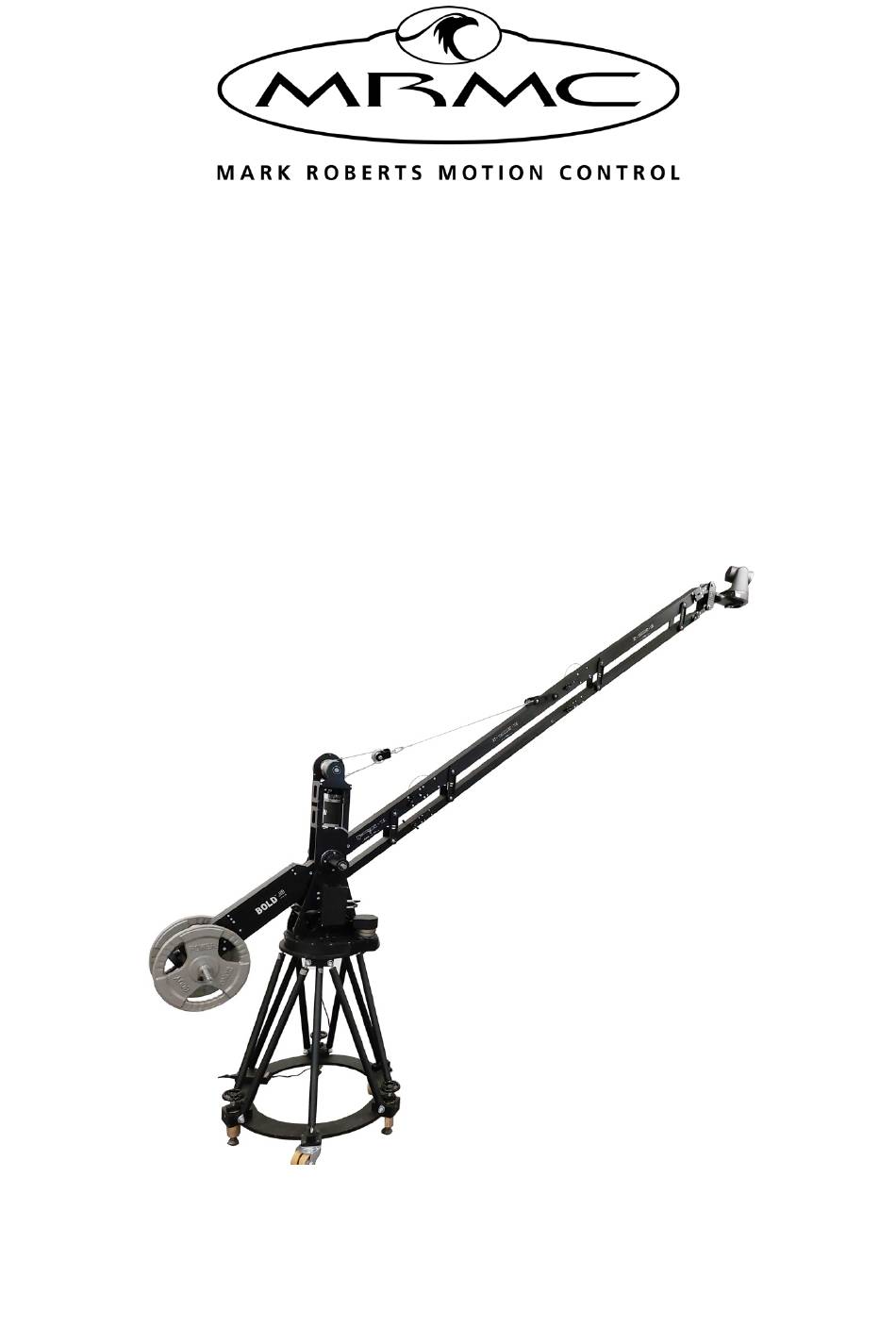

- Page 1 AutoJib System Quick Start Guide QSG Product code: MRMC-2165-00 Product Covered: MRMC-8120-00, MRMC-8121-00...
- Page 2 AutoJib System Quick Start Guide QSG Product code: MRMC-2165-00 Product Covered: MRMC-8120-00, MRMC-8121-00 © 2023 Mark Roberts Motion Control ®Ltd. All rights reserved. No part of this publication may be reproduced, transmitted, or translated by any means — graphical, electronic, or mechanical — including...
-
Page 3: Table Of Contents
AutoJib System Quick Start Guide Contents AutoJib System Quick Start Guide AutoJib System Quick Start Guide Chapter 1 Quick Start..............1 Overview .................1 Safety..................2 Tripod Safety ..............2 Safety ................3 Mounting Jib Arm on Tripod ..........4 Connecting the Cables ............8 Jib Arm ................10 Setting Jib Arm Weight: ..........10... - Page 4 AutoJib System Quick Start Guide...
-
Page 5: Chapter 1 Quick Start
AutoJib System Quick Start Guide Overview Thank you for using the AutoJib System (AJS) from Mark Roberts Motion Control (MRMC). The AutoJib System is designed for reliable day-in, day out use in professional studio environments. The extremely quiet AutoJib System, controlled by MRMC’s Polymotion Chat or RTL software with a capability to be used with a PTZ type camera unit, is designed to help you achieve automated, smooth and repeatable camera motions. -
Page 6: Safety
AutoJib System Quick Start Guide Jib arm, or “Height”, moves up and down by cable from motorised cable drum PTZ support platform to seat the PTZ camera unit An emergency-stop (E-stop) button on each side Safety •... -
Page 7: Safety
AutoJib System Quick Start Guide Jacking foot with rectangular locking nut Safety AJS-2 is equipped with a light beam under the jib arm which sends a beam to a reflector and back. A broken beam prevents the arm from moving down. -
Page 8: Mounting Jib Arm On Tripod
AutoJib System Quick Start Guide The LED the bottom end of the sensor is orange when beam is normal; green LED means the beam is broken indicating an obstruction or the reflector is out of position. The reflector can pivot out the way for shipping. - Page 9 AutoJib System Quick Start Guide Thread the umbilical cable through the centre cavity in the tripod Add the two arm sections. Add the end section. Add the side cables using the quick release pins.
- Page 10 AutoJib System Quick Start Guide Use the tensioners in side cables to adjust the tension. Add the height cable, bolted with nylock (must be tight). 10. Attach the weight shaft to the arm using the screw supplied. 11. Add the weights 60kg (4 x 10kg + 4 x 5kg).
- Page 11 AutoJib System Quick Start Guide over the cable support, then up the outside of the arm. There are regular tie points to hold the cable in place.
-
Page 12: Connecting The Cables
AutoJib System Quick Start Guide Connecting the Cables Camera Cable wrap Jib Arm Connection 24V PSU 250VAC Power Note Cable connections in the arm are done at the factory and must not be modified. - Page 13 AutoJib System Quick Start Guide Broadcast Panel Polymotion Chat Server SDI VIDEO Wifi Dongle HDMI Mains E-stop Flair PC Mains Mini Teensy USB Joystick...
-
Page 14: Jib Arm
AutoJib System Quick Start Guide Jib Arm Caution: DO NOT lift and try to lower the Jib arm by hand unless guided by the procedure below. The cable should remain under tension all the time. Caution: DO NOT place any object greater than 4.2kg on the load platform. -
Page 15: Cable Adjustments
AutoJib System Quick Start Guide Cable Adjustments Caution: If any cable is damaged and shows sharp ends or fraying, stop using the equipment and cover cable damage for safety. Contact MRMC for replacement parts. If the arm is noted to sway, and if you can feel slack in the cable fittings to the O rings on each end, tension adjusters for each Side Tension cable can be used. -
Page 16: Jib Arm Limits
AutoJib System Quick Start Guide holes for each direction of rotation. The closest bolt outside the software limit is to be used to catch any unexpected loss of control. Stop Bolt Tapped Limit Switches Holes Jib Arm Limits Lever arm switches are used to catch Jib arm down and up limits.These will be factory set.If the jib arm motion needs to be further limited then... -
Page 17: Appendix 1 Specifications
AutoJib System Quick Start Guide Appendix 1 Specifications AutoJib System Quick Start Guide AutoJib System Quick Start Guide AJS-2 Specifications Max Payload: 4.2kg, PTZ Type camera unit Boom Platform reach: 2000mm from pivot Lift Range: 2890mm Max, 300mm Min, subject to tripod/support Reach: 2454mm when boom is horizontal Max Speeds: Rotation: 20°/s, Lift: 150mm/s. - Page 18 AutoJib System Quick Start Guide...
- Page 19 AutoJib System Quick Start Guide Notes...
- Page 20 Mark Roberts Motion Control Ltd. Unit 3, South East Studios, Blindley Heath, Surrey RH7 6JP United Kingdom Telephone: +44 (0) 1342 838000 info@mrmoco.com www.mrmoco.com...
