Summary of Contents for MRMC MRMC-2318-00

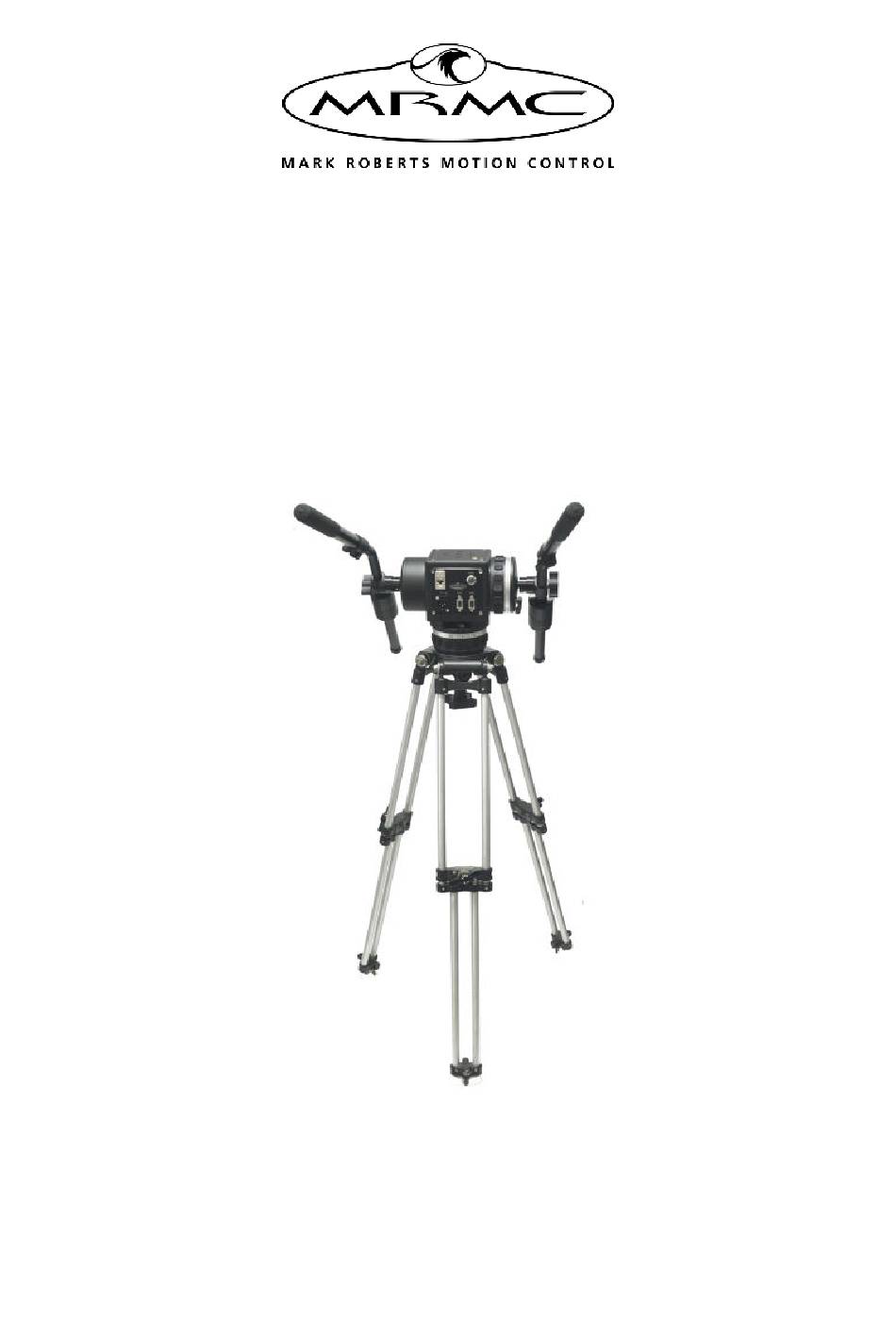

- Page 1 Ethernet Uniboard Pan Bars Quick Start Guide QSG Product code: MRMC-2318-00 Product covered: MRMC-2287-00 CRANES AND RIGS | BROADCAST | HEADS & DSLR | PRODUCT PHOTOGRAPHY | RENTALS...
- Page 2 Ethernet Uniboard Pan Bars Quick Start Guide QSG Product code: MRMC-2318-00 Product covered: MRMC-2287-00 Date Updated: 27 November 2023 © 2023 Mark Roberts Motion Control Ltd. All rights reserved. No part of this publication may be reproduced, transmitted, or translated by any means —...
-
Page 3: Table Of Contents
Ethernet Uniboard Pan Bars Quick Start Guide Contents Ethernet Uniboard Pan Bars Quick Start Guide Ethernet Uniboard Pan Bars Quick Start Guide Chapter 1 Quick Start..............1 Safety..................1 Overview .................1 Connecting the Cables ............2 Connecting the cables ..........3 Enable button ..............3 Your first session ..............4 Turning off the system ..........4 Chapter 2... - Page 4 Ethernet Uniboard Pan Bars Quick Start Guide...
-
Page 5: Chapter 1 Quick Start
Overview Thank you for using the Ethernet Uniboard Pan Bars from Mark Roberts Motion Control (MRMC). Pan Bars is a Ethernet mimic controller for an MRMC camera rig. It gives you a smooth, precise and real-time control over your choice of camera axes — pan and tilt, lift, rail and camera control —... -
Page 6: Connecting The Cables
Ethernet Uniboard Pan Bars Quick Start Guide Connecting the Cables Enable Foot Switches (Momentary-type) Foot Switch (Latching-type) Ethernet hub Power Power (24VDC) Head connected to pan bars via Ethernet Foot Switch Foot Switch... -
Page 7: Connecting The Cables
MHC or Flair PC which is in turn connected to the head via Ethernet or you can use MSA Joystick controller from MRMC via Ethernet which need not be connected to a PC. Add the Pan Bars as a device in MHC Admin login (if applicable). -
Page 8: Your First Session
Ethernet Uniboard Pan Bars Quick Start Guide Your first session Instructions for using the head with a specific controller, are beyond the scope of this manual. When you want to use the Pan Bars, you typically need to perform the steps given below. Refer to the manual that came with your head for details. - Page 9 Ethernet Uniboard Pan Bars Quick Start Guide Notes...
-
Page 10: Chapter 2 Setting Up The Pan Bars Unit In Mhc
Ethernet Uniboard Pan Bars Quick Start Guide Chapter 2 Setting up the Pan Bars unit in Ethernet Uniboard Pan Bars Quick Start Guide Ethernet Uniboard Pan Bars Quick Start Guide System configuration and startup Hint When connecting an MHC Server PC with the Pan Bars using an Ethernet connection, you might need to temporarily disable the Wi-Fi connection on the PC so that MHC does not try to use it to connect to the Pan Bars. -
Page 11: Assigning Axes To Pan Bar Controls
User login page will show an error message. Assigning axes to Pan Bar Controls Note It is recommended that you contact MRMC for assistance in changing default axis settings. If not done already, add Pan Bars to the MHC network setup as follows: Log out and log in as a user. - Page 12 Ethernet Uniboard Pan Bars Quick Start Guide Toggle the slider to Use. The selected head on the MHC main page can now be controlled by Pan Bars. Use the right pane to assign various functions to Pan Bar inputs and switches.
- Page 13 Ethernet Uniboard Pan Bars Quick Start Guide Notes...
- Page 14 Ethernet Uniboard Pan Bars Quick Start Guide Notes...
- Page 15 Ethernet Uniboard Pan Bars Quick Start Guide Notes...
- Page 16 Mark Roberts Motion Control Ltd. Unit 3, South East Studios, Blindley Heath, Surrey RH7 6JP United Kingdom Telephone: +44 (0) 1342 838000 info@mrmoco.com www.mrmoco.com...
