Summary of Contents for MRMC NUCLEUS-M LENS MOTOR

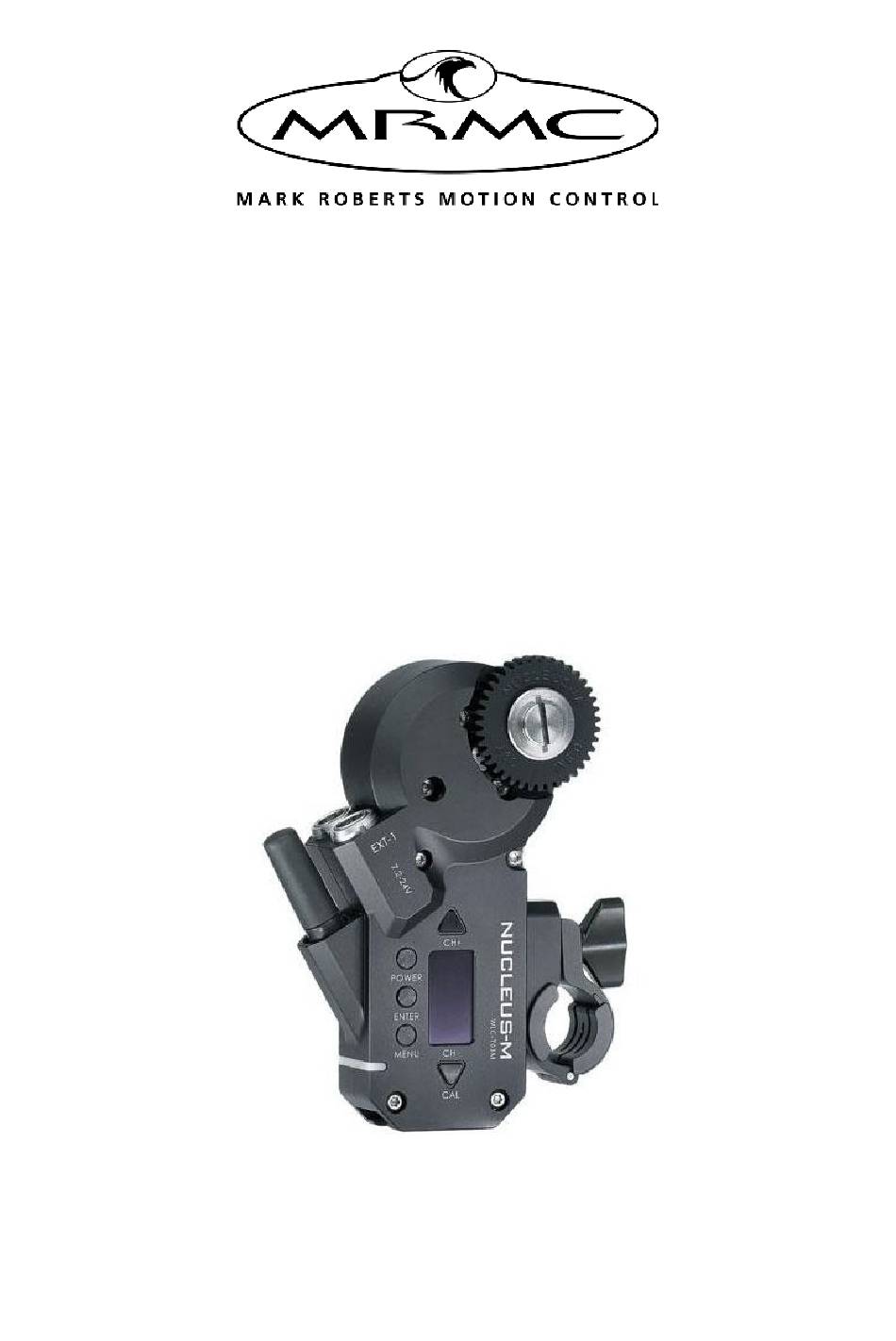

- Page 1 Nucleus-M Lens Motor Quick Start Guide QSG Product Code: MRMC-2319-00 Product Covered: 26548...
- Page 2 Nucleus-M Lens Motor Quick Start Guide QSG Product Code: MRMC-2319-00 Product covered: 26548 © 2024 Mark Roberts Motion Control Ltd. All rights reserved. No part of this publication may be reproduced, transmitted, or translated by any means — graphical, electronic, or mechanical — including...
-
Page 3: Table Of Contents
Nucleus-M Lens Motor Quick Start Guide Contents Nucleus-M Lens Motor Quick Start Guide Nucleus-M Lens Motor Quick Start Guide Contents................iii Chapter 1 Quick start ..............1 Safety..................1 Overview ................. 1 Connecting the cables ............2 Using the User Interface............3 Hand controller Wireless Control ...... - Page 4 Nucleus-M Lens Motor Quick Start Guide...
-
Page 5: Chapter 1 Quick Start
Overview Thank you for using the Nucleus-M Lens Motor for Mark Roberts Motion Control (MRMC) equipment. Nucleus-M Motors are produced by a company called Tilta. Their webpage is https://tilta.com/. They are sold as a kit which includes battery charger, hand controller and required cables. -
Page 6: Connecting The Cables
Nucleus-M Lens Motor Quick Start Guide Connecting the cables Quad Tilta Box Nucleus-M Lens Motors (Daisy Lens Datum/ Chained - Both Lemo Sync Motors Limit connectors on the motors are identical) NETWORK 5VDC 24VDC POWER 24V Note The motors can be plugged and unplugged from the box without... -
Page 7: Using The User Interface
Nucleus-M Lens Motor Quick Start Guide Picture of Nucleus-M Lens Motors daisy-chained for zoom and focus Using the User Interface Hand controller Wireless Control The Tilta Hand controller can be used wirelessly to control the motors when Flair is not in use or even during the calibration process. To set up... -
Page 8: Motors
Nucleus-M Lens Motor Quick Start Guide Select 2.4G and press the ENTER button. Select the same Channel number as that on the motor and press the ENTER button. Press the MENU button again to exit the menu. If you just setup the motor for focus, turning the focus pot should move the motor. -
Page 9: Tilta Hand Controller
Nucleus-M Lens Motor Quick Start Guide Press the MENU button. Go to the motor number by pressing arrows. Press the ENTER button. Navigate through arrows and find the motor number you need. Press the ENTER button to select. Press the “Power” button to return to the main page. - Page 10 Nucleus-M Lens Motor Quick Start Guide On each motor, press the Calibrate button for 3 seconds and the motor will find both end stops and set the internal scale in Flair from 0-1 for the real travel between end-stops. Once the calibration is done, Calibrate 4.1 Drive the lens to ...
- Page 11 Nucleus-M Lens Motor Quick Start Guide You will be guided through the on-screen steps for focus calibration. In step 1, click Disable Focus. 10. For step 2, using the Flair main screen, move the focus to , and click Store Position.
- Page 12 Nucleus-M Lens Motor Quick Start Guide 15. Click Save and Exit. 16. In the Lens Setup dialog box, click Complete Calibration. 17. Scroll down to Extras, measure the X, Y and Z nodal offsets according to the camera and lens positions and add these values in the respective boxes.
- Page 13 Nucleus-M Lens Motor Quick Start Guide Notes...
-
Page 14: Appendix 1 Connector Pinouts Summary
Nucleus-M Lens Motor Quick Start Guide Appendix 1 Connector Pinouts summary Nucleus-M Lens Motor Quick Start Guide Nucleus-M Lens Motor Quick Start Guide EXT-1/EXT-2 Connector ID: LEMO EEG.0B.307 SIGNAL Description Direction 7.2 to 24 Power to the Nucleus-M In/Out Volts DC motor and batteries 7.2 to 24... - Page 15 Nucleus-M Lens Motor Quick Start Guide Notes...
- Page 16 Mark Roberts Motion Control Ltd. Unit 3, South East Studios, Blindley Heath, Surrey RH7 6JP United Kingdom Telephone: +44 (0) 1342 838000 info@mrmoco.com www.mrmoco.com...
