Page 1: Quick Start Guide

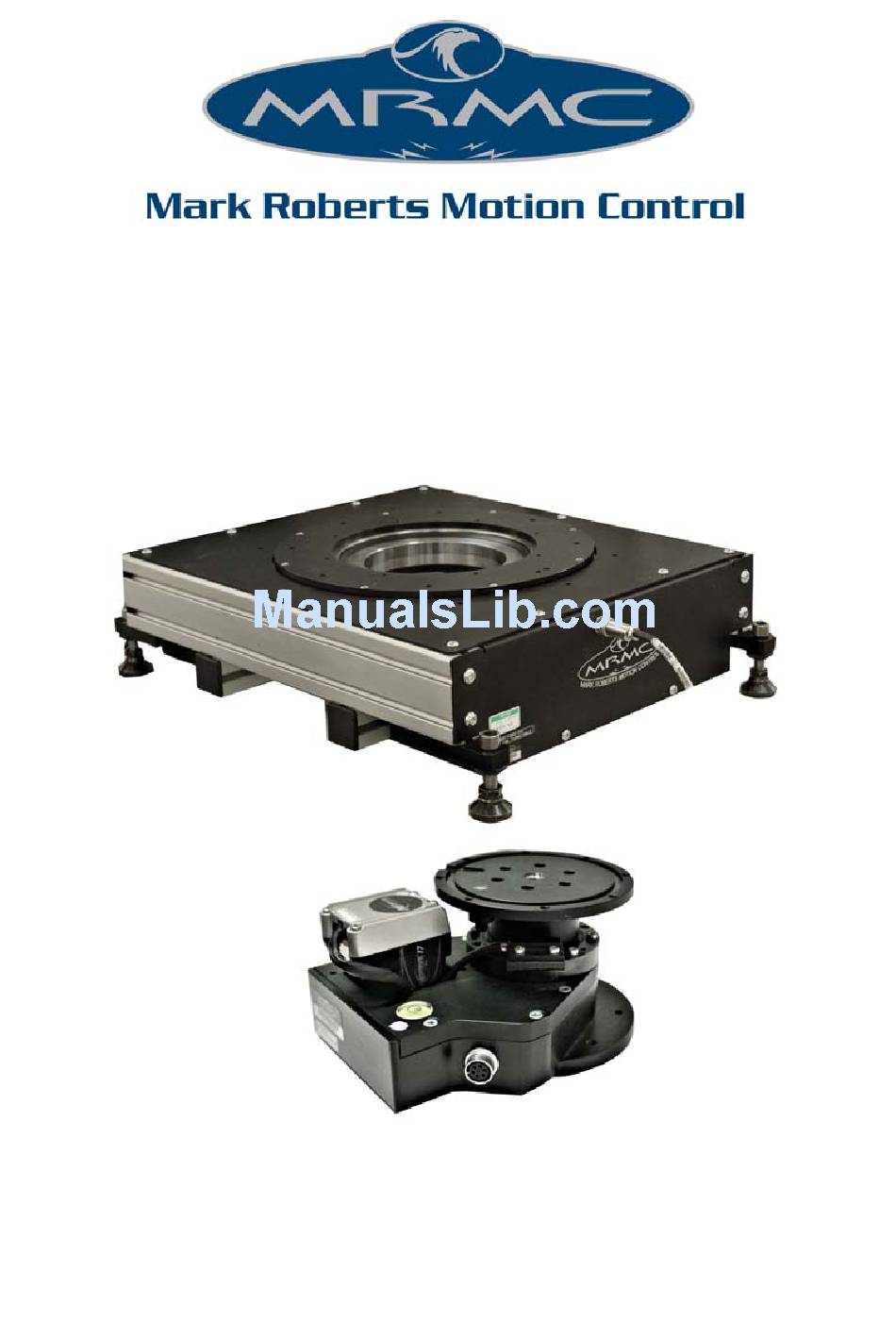

LEADERS IN CAMERA ROBOTICS Turntable AUTOMATED PRODUCT PHOTOGRAPHY Quick Start Guide Part number: MRMC-1082-00 MRMC-1096-00 Product Code: MRMC-1502-00 CRANES AND RIGS | BROADCAST | HEADS & DSLR | PRODUCT PHOTOGRAPHY | RENTALS... - Page 2 Turntable Quick Start Guide Product code: MRMC-1331-00, MRMC-1096-00 Part number: MRMC-1082-00 © 2017 Mark Roberts Motion Control ® Ltd. All rights reserved. No part of this publication may be reproduced, transmitted, or translated by any means — graphical, electronic, or mechanical — including...
-
Page 3: Table Of Contents
Turntable Quick Start Guide Contents Turntable Quick Start Guide Turntable Quick Start Guide Chapter 1 Quick Start..............1 Important safety instructions ..........1 General care..............1 Location .................1 Intellectual property .............1 Overview .................2 Connecting the cables ............3 Medium Turntable............3 Small Turntable .............4 Appendix 2 Back panel .............. - Page 4 Turntable Quick Start Guide...
-
Page 5: Chapter 1 Quick Start
Turntable Quick Start Guide Chapter 1 Quick Start Turntable Quick Start Guide Turntable Quick Start Guide Important safety instructions To ensure the best from the product, please read this manual carefully. Keep it in the safe place for future reference. To reduce the risk of electric shock, do not remove the cover from the unit. -
Page 6: Overview
Overview Thank you for using the Turntable from Mark Roberts Motion Control (MRMC). You can use the Turntable for day in and day out use in product photography. Currently, it has two variants: Medium Turntable and Small Turntable. Turntable gives you the following features: ... -
Page 7: Connecting The Cables
3.4A The diagram shows a typical application. Attach the power cables last. The controller can be any MRMC controller such as a PC running Flair Motion Control Software or one of the MSA-based controllers such the Large Flat Panel (LFP), MSA-20 Handwheels, Joystick Controller, or Mini... -
Page 8: Small Turntable
Small Turntable The diagram shows a typical application. Attach the power cables last. The controller can be any MRMC controller such as a PC running Flair Motion Control Software or one of the MSA-based controllers such the Large Flat Panel (LFP), MSA-20 Handwheels, Joystick Controller, or Mini... -
Page 9: Appendix 2 Back Panel
Turntable Quick Start Guide Appendix 2 Back panel Turntable Quick Start Guide Turntable Quick Start Guide Connector summary Stepper motor connector This connector connects the model mover motor cable to the stepper motor connector on the quad box. The cable can also be a split to provide 48V power to the quad box. - Page 10 Turntable Quick Start Guide Notes...
-
Page 11: Appendix 3 Specifications
Turntable Quick Start Guide Appendix 3 Specifications Turntable Quick Start Guide Turntable Quick Start Guide Medium Turntable Weight: 2.8Kg Power requirements: 24-48 Volts DC Temperature range: -10 to +45 °C Humidity tolerance: 0% to 90% relative humidity, non-condensing Rotation speed: 90°/s Load capacity: 200Kg Dimensions are shown as follows. - Page 12 Turntable Quick Start Guide Load capacity: 20Kg...
-
Page 13: Small Turntable Mounting Holes
Turntable Quick Start Guide Small Turntable mounting holes M5 threaded holes, 6 mm deep and evenly spaced. These can be used to mount different sized disks based on your object size. 3/8-16 centre hole... - Page 14 Turntable Quick Start Guide Small riser plate M5 unthreaded countersunk holes for attachment to the bottom of the head, using M5 CSK (countersunk) bolts 12 mm long. Thickness: 8 mm M6 unthreaded holes 3/8-16 centre hole around the edge for threaded for a mounting the plate onto standard heavy-duty...
- Page 15 Turntable Quick Start Guide Optional riser M5 CSK (countersunk) bolts 12 mm long. Plate thickness: Small riser plate. Top and 8 mm bottom plates are identical, but the bottom one is inverted to cater for the countersunk bolts that go into the columns M5 cap-head bolts for attaching the riser to the base of the head, 12 mm...
- Page 16 Turntable Quick Start Guide Mitchell Mounting adaptor plate M5 unthreaded countersunk holes for attachment to the bottom of the head, using M5 CSK (countersunk) bolts 12 mm long. Thickness: 8 mm M8 mounting slots 3/8-16 centre hole threaded for a standard heavy-duty tripod mounting bolt.
- Page 17 Turntable Quick Start Guide Small turntable - Mitchell mounting Underslung adapter plate can be used to mount small Turntable in an underslung or overslung position...
- Page 18 Turntable Quick Start Guide Notes...
- Page 19 Turntable Quick Start Guide Notes...
- Page 20 Mark Roberts Motion Control Ltd. Unit 3, South East Studios, Blindley Heath, Surrey RH7 6JP United Kingdom Telephone: +44 (0) 1342 838000 info@mrmoco.com www.mrmoco.com...
