ROOMS TO GO PNWD 1733-HC Assembly Instructions

Manufactured for Rooms To Go.
This product is manufactured by PNWD for Rooms To Go
Step Code
Allen key 4mm dia.
A
Bolt 5/16" x 18 x 2 1/8"
1 B
Spring Washer 5/16" x 19 x 2mmT
Flat Washer 5/16" x 11 x 2mmT
C Wood Screws 5/32" x 1 3/4"
2
Bolt 5/16" x 18 x 2 1/8"
B
Spring Washer 5/16" x 19 x 2mmT
3
Flat Washer 5/16" x 11 x 2mmT
C
Wood Screws 5/32" x 1 3/4"
HARDWARE PACK FOR 2 PCS HOST CHAIR LOCATION(S):

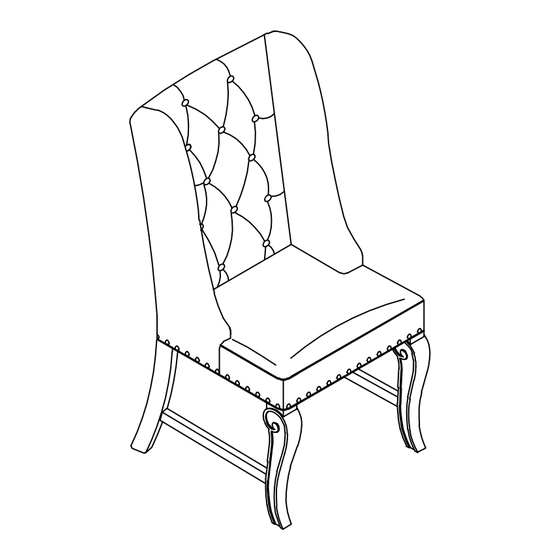

PNWD 1733- HC HOST CHAIR
Assembly Instructions
PNWD 1733- HC HOST CHAIR
Hardware
Tool Required: Phillips screwdriver
Q'TY
1 Pc
4 Pcs
2 Pcs
4 Pcs
2 Pcs
(not provided)
SKU# 42517334
SKU# 42517334
PARTS LIST
1. Seat Frame With Back -
2. Left Back Legs - 1 Pc
3. Right Back Legs - 1 Pc
4. Left Front Legs - 1 Pc
5. Right Front Legs - 1 Pc
6. Left Side Stretchers - 1 Pc
7. Right Side Stretchers - 1 Pc
1 Pc
PAGE 1OF2
