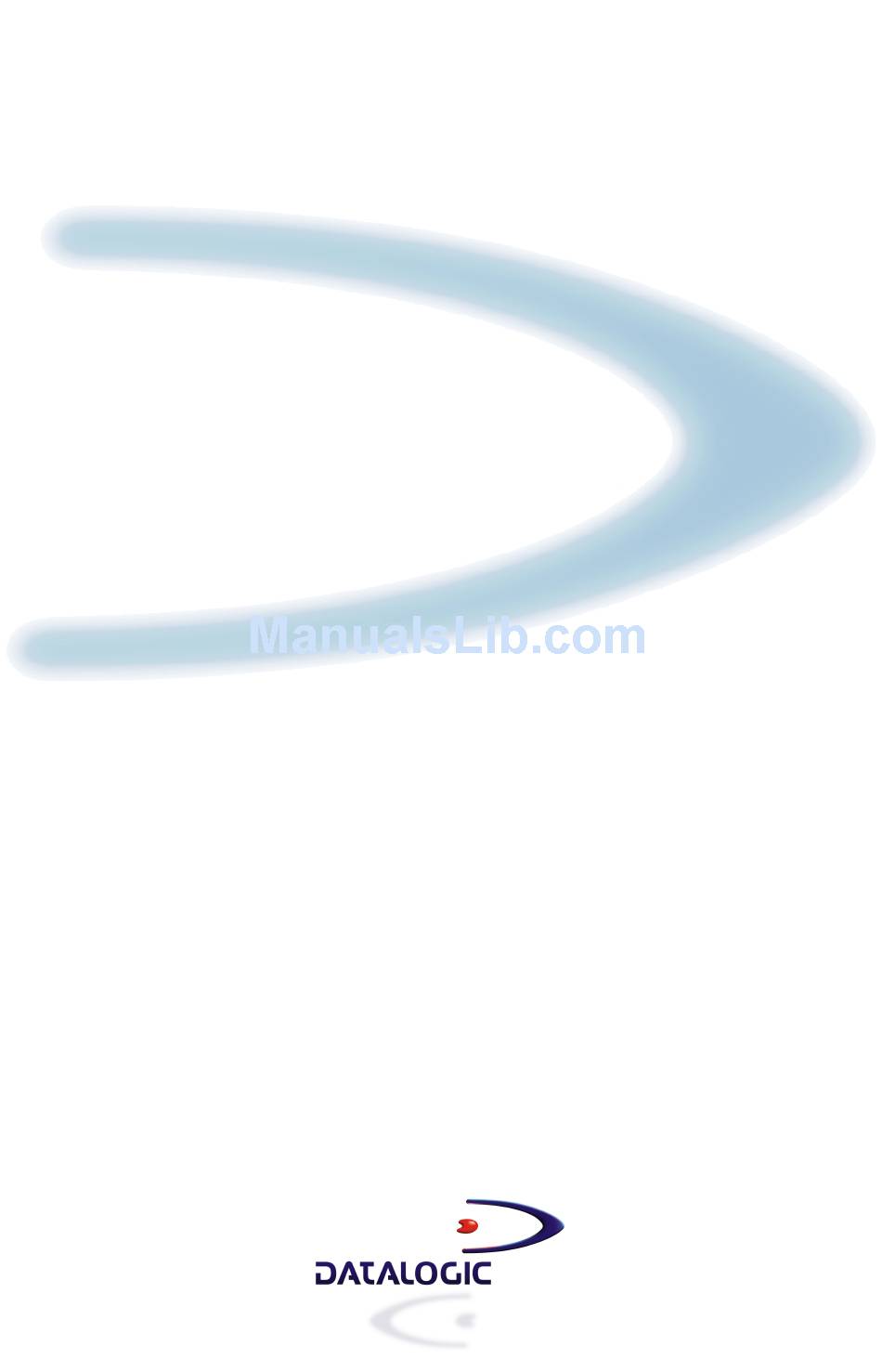

  • Page 1 DLL2020 User’s Manual...
  • Page 2 DLL2020 USER'S MANUAL...
  • Page 3 DATALOGIC S.p.A. Via Candini 2 40012 - Lippo di Calderara di Reno Bologna - Italy DLL2020 User's Manual Ed.: 11/2003 ALL RIGHTS RESERVED Datalogic reserves the right to make modifications or improvements without prior notification. Datalogic shall not be liable for technical or editorial errors or omissions contained herein, nor for incidental or consequential damages resulting from the use of this material.

  • Page 4: Table Of Contents

    Warranty ... vi GETTING STARTED... 1 Unpacking the DLL2020 ... 1 Available Models ... 2 Scanning Bar Codes with the DLL2020 ... 3 Scanner Labelling ... 5 Maintaining the Scanner... 7 Controlling the Scanner from the POS System... 8 INSTALLING THE DLL2020 ... 9 Connecting the Scanner...
  • Page 5 CONNECTOR AND PIN DEFINITIONS ... 30 TECHNICAL FEATURES... 31 TROUBLESHOOTING ... 33...

  • Page 6: Introduction

    The omni-directional scan field of the DLL2020 generates a scan pattern of 16 lines, ensuring high performance scanning. Featuring an unequalled scan rate of 800 scans per second, the DLL2020 is an aggressive scanner. Barcodes are read simply on presentation to the scanner window.

  • Page 7: Compliance

    For CE-countries: The DLL2020 is in conformity with the CE standards. For USA & Canada: To be used with UL listed and CSA certified computers/POS systems.

  • Page 8: Getting Started

    GETTING STARTED UNPACKING THE DLL2020 Take the scanner and its accessories out of the box and remove all packing materials. Refer to the packing list in order to ensure that you have received all the items ordered. Visually inspect the scanner and accessories for any visible traces of damage.

  • Page 9: Available Models

    30 minutes. When the scanner is in sleep mode, the LED is intermittently flashing red. NOTE Red LED: The red LED indicates that the scanner is ready to read a bar code. Green LED: The green LED indicates a good read.

  • Page 10: Scanning Bar Codes With The Dll2020

    1 5 c m 25 cm The DLL2020 is an omnidirectional scanner featuring a 4-directional scan field with a 16-line scan pattern. Bar codes can easily be read by presenting them to the scanner. The scan volume is illustrated in the figure above.
  • Page 11 The DLL2020 scanner can be used handsfree as well as hand held, e.g.: Handsfree scanning by presenting the item to the scanner. You can also hold the scanner. DLL2020...

  • Page 12: Scanner Labelling

    SCANNER LABELLING There are four labels on the scanner. The first three labels can be found on the housing of the DLL2020, as indicated in the figures below. The fourth label is visible through the scanner window. All the labels have been attached by the manufacturer and should in no case be removed.
  • Page 13 IIa. Eviter de rester exposé longtemps à la lumière directe du laser. Italian: Lo scanner DLL2020 è conforme alle norme di sicurezza EN60825-1 (2001) relative ad un prodotto laser di Classe 1. È inoltre conforme alla norma U.S. 21CFR1040 relativa ad un prodotto laser di Classe IIa.

  • Page 14: Maintaining The Scanner

    GETTING STARTED Radiant Energy The DLL2020 uses a low-power laser diode operating at 650 nm in an opto-mechanical scanner resulting in less than 0.7 mW peak output power. Laser light observed at 15.0 cm (5.9 inch) above the window through a 7 mm (0.28 in.) aperture and averaged over 1000 seconds is less than 3.9...

  • Page 15: Controlling The Scanner From The Pos System

    CONTROLLING THE SCANNER FROM THE POS SYSTEM The DLL2020 can be controlled from the POS system via the RS232 interface. Controlling is accomplished by transmitting the following single- byte commands to the scanner. In the Datalogic default setting the following commands are available (more details upon request):...

  • Page 16: Installing The Dll2020

    Locate the optimal scanner position in relation to the counter surface. Pay attention to the product flow, the distance to the counter edge and convenience for the operator. You have two options to connect the scanner to your POS or computer.

  • Page 17: Rs232 Direct Power

    (minimal requirements: +5 V dc, 250 mA), the following setup is applicable. Plug the cab 376 into the scanner port until a firm ‘click’ is heard. Connect the serial cable to the cab 376 and the other end to the appropriate serial port of your POS or computer.

  • Page 18: Interface Selection

    INSTALLING THE DLL2020 INTERFACE SELECTION To select the scanner interface scan the following codes: read the "Enter/Exit and Save Programming Mode" code; scan either "RS232 default" code or "Keyboard Wedge default" code. NOTE Enter/Exit and Save Programming Mode Programming Mode is closed after scanning this code.
  • Page 19 DLL2020 Keyboard Wedge Default 8 7 1 2 3 4 5 1 0 0 1 3 1 Programming Mode is closed after scanning this code.

  • Page 20: Configuration

    CONFIGURATION CONFIGURATION The present manual provides information on how to set the DLL2020 reader in operation, as well as to set up its basic configuration parameters. Additional customized configurations are also available by changing basic parameters: please refer to the NOTE Software Configuration Manual (Part No.

  • Page 21: Factory Default Settings

    Code 32 Codabar Interleaved 2/5 Code Length Min. length Interleaved 2/5 Data Formatting Code Identifiers Default Setting After 30 minutes 600 msec 9600 None <CR> PC/AT International (Alt method) 2 msec Enter (Alphanumeric) disabled disabled On (ADD ON not sent) DLL2020...

  • Page 22: Default Message Format

    CONFIGURATION DEFAULT MESSAGE FORMAT Code Message Format EAN13 D1 D2 D3 D4 D5 D6 D7 D8 D9 D10 D11 D12 D13 EAN8 D1 D2 D3 D4 D5 D6 D7 D8 UPCA D1 D2 D3 D4 D5 D6 D7 D8 D9 D10 D11 D12 UPCE D1 D2 D3 D4 D5 D6 D7 Code 128...

  • Page 23: Editing Commands

    DLL2020 EDITING COMMANDS Enter/Exit and Save Programming Mode 8 7 1 2 3 4 5 1 0 0 0 0 1 Restore Factory Default 8 7 1 2 3 4 5 1 0 0 0 8 7 Return to Custom Default Settings...

  • Page 24: Rs232 Presets

    Each of the following barcode selections enable a complete preset parameter configuration for correct use with the respective POS Terminal. The scanner must first be set with the RS232 interface selection (see par.2.2). Wincor Nixdorf Beetle Mode A1 Wincor Nixdorf Beetle Mode A2...
  • Page 25 8 7 1 2 3 4 5 1 9 0 1 4 9 8 7 1 2 3 4 5 2 0 0 0 0 8 8 7 1 2 3 4 5 2 0 0 1 0 7 ICL Mode Fortronic (UK) Mode DLL2020...

  • Page 26: Keyboard Wedge

    CONFIGURATION KEYBOARD WEDGE PC/Terminal Type 8 7 1 2 3 4 5 4 0 0 0 0 2 8 7 1 2 3 4 5 4 0 0 0 1 9 8 7 1 2 3 4 5 4 0 0 0 2 6 8 7 1 2 3 4 5 4 0 0 0 3 3 PC/XT PC/AT (Default)

  • Page 27: Keyboard Nationality

    DLL2020 IBM 3179 x terminal 8 7 1 2 3 4 5 4 0 0 0 4 0 Keyboard Nationality International Keyboard (ALT Method)(Default) 8 7 1 2 3 4 5 4 0 0 2 0 0 8 7 1 2 3 4 5 4 0 0 2 1 7...
  • Page 28 CONFIGURATION French 8 7 1 2 3 4 5 4 0 0 2 3 1 German 8 7 1 2 3 4 5 4 0 0 2 4 8 Spanish 8 7 1 2 3 4 5 4 0 0 2 5 5...

  • Page 29: Operating Parameters

    The Freeze Frame mode is a special trigger mode allowing to aim the laser pattern on the code before reading. To work in this mode: Press the DLL2020 trigger. The laser pattern starts blinking but the scanner does not read the code; Move the scanner towards the barcode (zoom-in);...
  • Page 30 To use this option proceed as follows: Press the button on top of the scanner to switch from the full scan pattern to a single scan line; Aim the single scan line on the barcode to be scanned while holding the button;...

  • Page 31: Code Selection

    DLL2020 CODE SELECTION All EAN/UPC ON (ADD ON not sent) (Default) 8 7 1 2 3 4 5 1 4 1 0 1 1 All EAN/UPC OFF 8 7 1 2 3 4 5 1 4 1 0 0 4...
  • Page 32 CONFIGURATION Code 39 ON 8 7 1 2 3 4 5 1 4 3 0 1 5 Code 39 OFF 8 7 1 2 3 4 5 1 4 3 0 5 3 CODABAR ON 8 7 1 2 3 4 5 1 4 3 0 2 2 CODABAR OFF 8 7 1 2 3 4 5 1 4 3 0 6 0...
  • Page 33 DLL2020 Interleaved 2/5 ON 8 7 1 2 3 4 5 1 4 2 0 2 5 Interleaved 2/5 OFF 8 7 1 2 3 4 5 1 4 2 0 0 1...

  • Page 34: Data Formatting

    CONFIGURATION DATA FORMATTING Pre-defined Terminators To program the terminator string follow the given procedure: 1) If not working in Programming Mode, scan the "Enter/Exit and Save Programming Mode" code; 2) Choose the desired pre-defined terminator from the list below 3) Scan the "Enter/Exit and Save Programming Mode" code OR configure other parameters.

  • Page 35: Code Identifiers

    A code identifier is a data string, giving information to the host system concerning the barcode type that has been read After scanning the "Enable Default Code Identifiers" code, the scanner is configured to transmit data according to the following format:...
  • Page 36 CONFIGURATION Enable Default Code Identifiers 8 7 1 2 3 4 5 1 1 0 4 7 5 Disable Code Identifiers 8 7 1 2 3 4 5 1 1 0 4 6 8...
  • Page 37 CONNECTOR AND PIN DEFINITIONS The DLL2020 has a dual interface: RS232/Keyboard Wedge. The pin definition for the scanner port and the connector to be used for the port are shown in the connection diagram below. Pin 10 Pin 1 RJ-48 PCB...

  • Page 38: Technical Features

    TECHNICAL FEATURES TECHNICAL FEATURES Electrical Features Input power to scanner Dual interface Adapter Cable Optical Features Light source Depth of field Scan pattern Scan rate Decoding Features Barcode types +5 Vdc to +5.25 Vdc, 250 mA RS232/Keyboard Wedge Cab 376...
  • Page 39 EN 60950 second edition UL1950 (third edition), c-UL (according CSA22.2.950-95) EN 55022 Class B (1994), FCC part 15 Class A (1992) EN 61000-3-2 (1995) EN 50082-1 (1992) based on: IEC 801-2 (1991) IEC 801-3 (1984) / ENV 50140 (1993) IEC 801-4 (1998) DLL2020 8.00°...

  • Page 40: Troubleshooting

    The scanner is disabled by the host. Refer to par. 1.6. The barcode type you presented to the scanner is not supported by DLL2020. The scanner is in sleep mode. Press the switch on top of the scanner to reactivate the scanner (or use the wake protocol.
  • Page 41 For proper adjustment values see the Software Configuration Guide. The communication cable does not suit your host system. Contact your supplier communication cable. The data format is not supported by the software running on the host system. DLL2020 correct...
  • Page 42 Gerät declare que el DLL202X-XX Presentation Scanner sono conformi alle Direttive del Consiglio Europeo sottoelencate: are in conformity with the requirements of the European Council Directives listed below: sont conformes aux spécifications des Directives de l'Union Européenne ci-dessous: den nachstehenden angeführten Direktiven des Europäischen Rats:...
