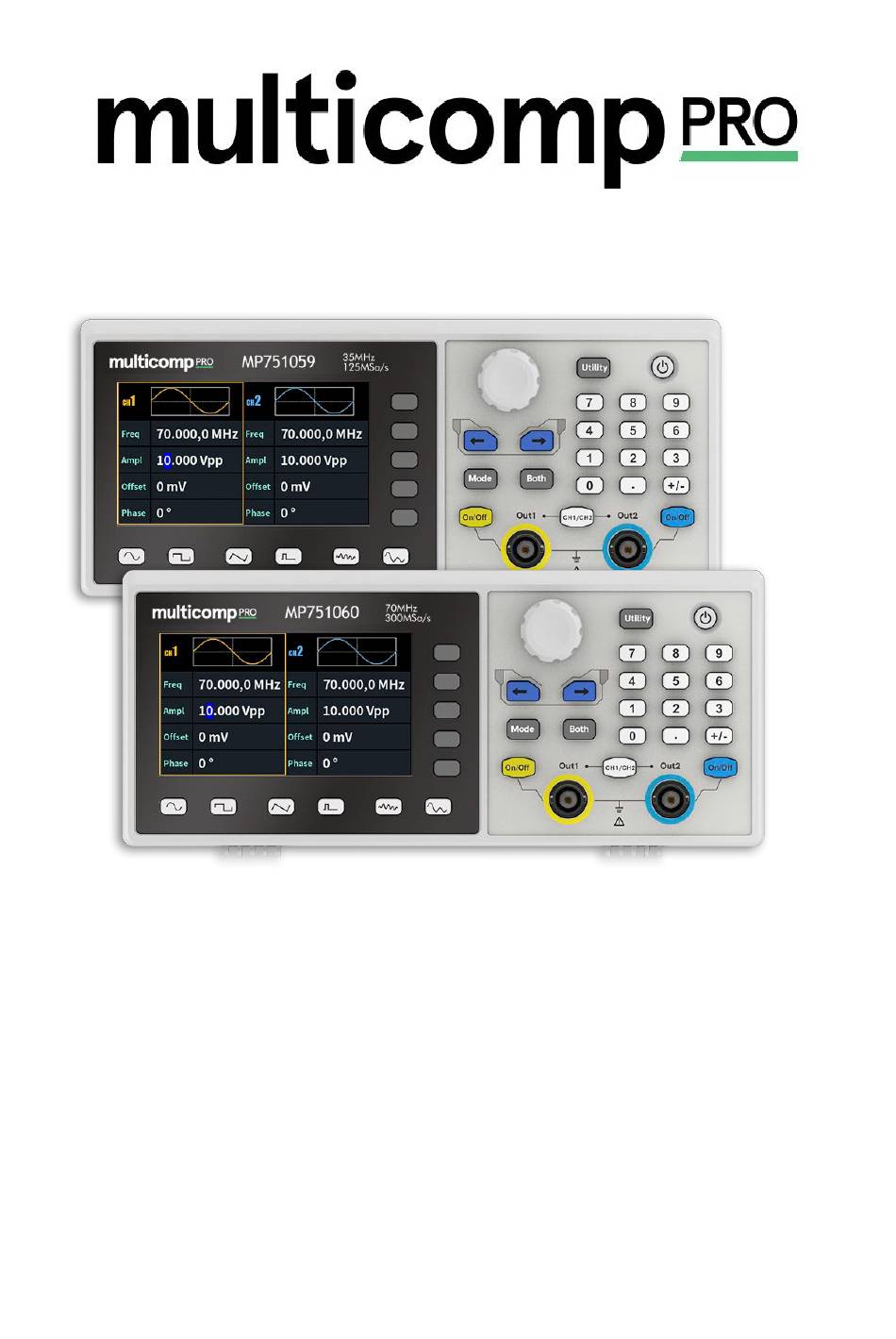

- Page 1 Dual-Channel Arbitrary Waveform Generator Quick Start Guide MP751059 & MP751060...
-
Page 2: Table Of Contents
Table of Contents General Safety Requirement ............. 1 Safety Terms and Symbols ..............2 General Inspection ................3 Quick Start................... 4 Front panel overview ........................4 Rear Panel Overview ........................5 Power on ............................6 User Interface ..........................6 Set the channel ..........................7 Set basic waveform ........................ -
Page 3: General Safety Requirement
1. General Safety Requirement 1. General Safety Requirement Before first use, please read the following safety precautions to avoid any possible personal injury and prevent this product or any other products connected to it from damage. Use only the power supply included or one of identical specification. Check to ensure the power supply used matches your local mains supply before connecting. -
Page 4: Safety Terms And Symbols
2.Safety Terms and Symbols 2. Safety Terms and Symbols Terms in this Manual. The following terms may appear in this manual: Warning: Warning indicates the conditions or practices that could result in personal injury or loss of life. Caution: Caution indicates the conditions or practices that could result in damage to this product or other connected devices. -
Page 5: General Inspection
3.General Inspection 3. General Inspection After you get a new instrument, it is recommended that you should make checks as follows: 1. Check whether there is any damage caused by transportation. If it is found that the outer carton or internal packaging has suffered serious damage, do not dispose of it until the complete device and its accessories have been thoroughly tested. -
Page 6: Quick Start
4.Quick Start 4. Quick Start Front Panel Overview Figure 4- 1 Front Panel Overview 1 LCD Display the user interface 2 Menu Includes 5 keys to activate the corresponding menu selection keys 3 Mode keys Mode output the modulated waveform Both Display the editable parameters of both channels Change the currently selected value, also used to select 4 Knob... -
Page 7: Rear Panel Overview
4.Quick Start 9 On/Off button Turns the output of the CH2 channel on or off. When the output is turned on, the button backlight lights up 10 Out 2 Output CH2 signal Switch the channel displayed on the screen between CH1 11 CH1/CH2 and CH2 12 Out 1... -
Page 8: Power On
4.Quick Start Power on (1) Connect the instrument to the AC power using the DC power adapter included with the product. (2) Press the power button on the front panel. The back light of the power channel switch will light up, and the buzzer will sound. User Interface Figure 4- 3 User Interface Display channel name... -
Page 9: Setting The Channel
4.Quick Start Frequency/Period, depending on the highlighted menu item on the right 13 Displays the current waveform Setting the channel Select the channel for configuration Before configuring waveform parameters, you must first select the channel you want to configure. Press CH1 /CH2 to switch to the desired channel and the user interface. -
Page 10: Set Basic Waveform
4.Quick Start Setting a basic waveform To set and output the Sine, Square, Ramp, Pulse, Noise or Arbitrary waveform, press the waveform selection button on the front panel of the instrument: sine , square , ramp , pulse , noise arbitrary to enter the corresponding waveform setting interface. -
Page 11: Output The Built-In Waveform (Including Dc)
4.Quick Start Frequency/Period, Amplitude/High Level, Offset/Low Level, Ramp Phase Symmetry Frequency/Period, Amplitude/ High Level, Offset/Low Level, Pulse Phase, Width/Duty, Rise, Fall Noise Amplitude/High Level, Offset/Low Level Frequency/Period, Amplitude/High Level, Offset/Low Level, Arbitrary Phase, Bult-in, Store Output the built-in waveform (including DC) (1) Press the arbitrary wave button, then press the NextPage ,to the nextpage menu. -
Page 12: Generate Burst
4.Quick Start to the stop frequency at the sweep rate you specify. Sweep can be generated by Sine, Square, Ramp or Arbitrary waveforms. When the output signal is Sine, Square, Ramp or Arbitrary waveform, press the front panel Mode key ,then press the Sweep to enter the sweep mode. -
Page 13: Reading Waveform
4.Quick Start After the connection is successful, the connection status prompt in the lower right corner of the software interface turns green. Reading the Waveform (1) Run “Waveform Editor.exe” (2) Enter the “Waveform Editor” interface (3) Press the required waveform on the instrument (4) Click on Read Waveform on the waveform editor and the waveform is read and displayed. -
Page 14: Utility Setting
4.Quick Start (3) On the instrument, the screen shows "Wave has been updated to USERX (X is 0-15)". (4) Press the Arb Wave button ,then press the NextPage button to enter the NextPage menu. (5) Press the Store soft key to enter the file system, and then press the Enter soft key to enter the file system. - Page 15 4.Quick Start PC: This is the internal communication protocol. Select this option when connecting to the Waveform Editor software running on USB Device a computer via the USB Device interface. USBTMC: Select this when you need to use the USBTMC communication protocol standard.
-
Page 16: Appendix
5.Appendix 5. Appendix Appendix A Accessories UK and EU DC power supply 1 × USB power cable 1 × Quick Guide 1 × BNC/Q9 cable 1 × BNC to alligator cable 1 × USB communication cable Appendix B General Care and Cleaning General Maintenance Do not store or leave the instrument where the liquid crystal display will be exposed to direct sunlight for long periods of time.
