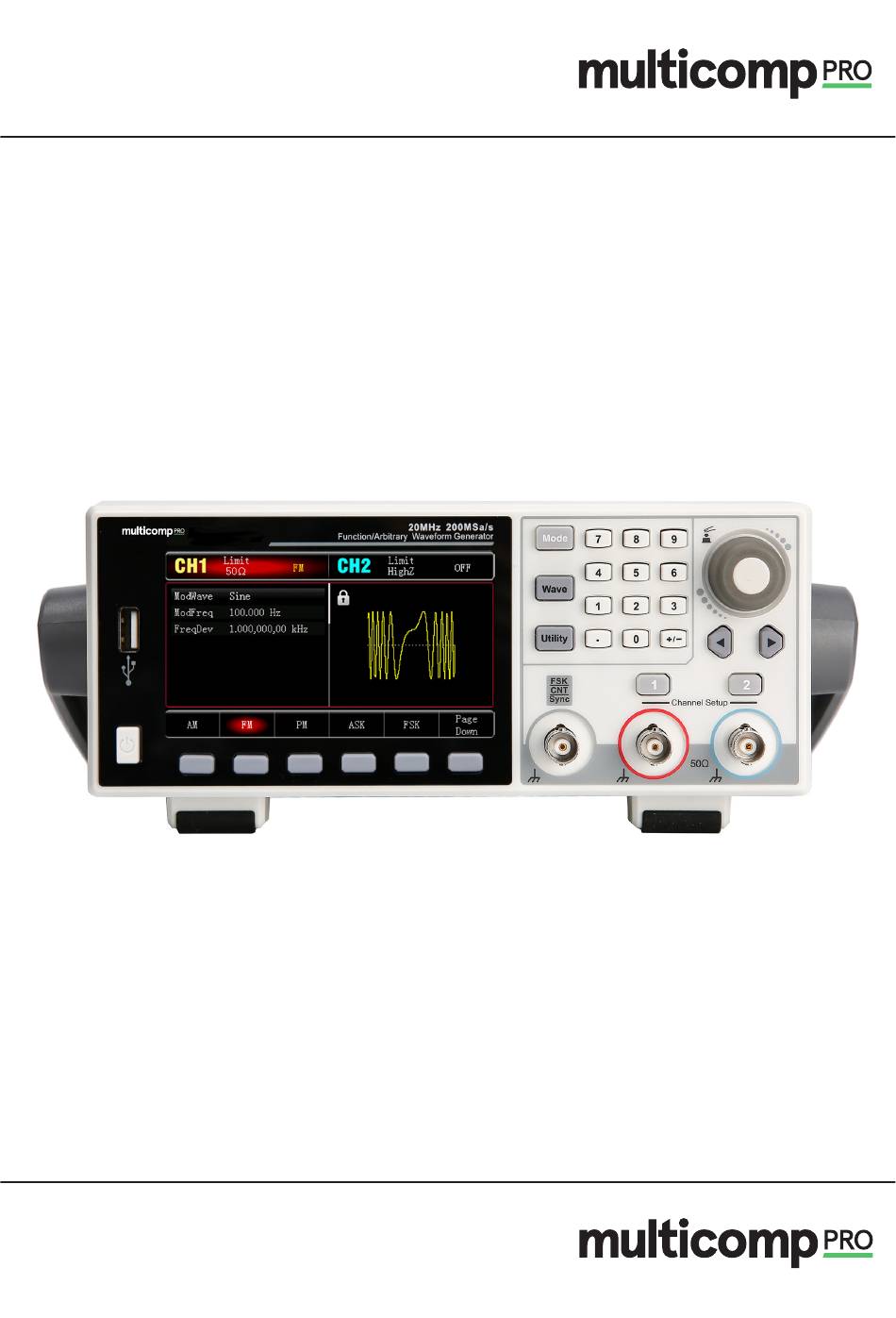

- Page 1 Function/Arbitrary Waveform Generatorr Quick Start Guide Part Number: MP751035/MP751036 Newark.com/multicomp-pro Farnell.com/multicomp-pro sg.element14.com/b/multicomp-pro Page <1> 26/02/24 V1.0...
-
Page 2: Copyright Information
Foreword Dear Users, Hello! Thank you for choosing this brand new instrument. In order to use this instrument safely and correctly, please read this manual thoroughly, especially the Safety Requirements part. After reading this manual, it is recommended to keep the manual at an easily accessible place, preferably close to the device, for future reference. - Page 3 Chapter 1 Panel 1.1 Front Panel The product has a simple, intuitive and easy to use front panel, as shown in the following figure. 1. Display Screen 4.3 inch high resolution TFT color LCD clearly distinguishes the output status of channel 1 and channel 2, function menu and other important information through different colors.
- Page 4 8. External Digital Modulation or Frequency Meter Interface or Sync Input Interface In ASK, FSK and PSK signal modulation, when the modulation source is selected externally, the modulation signal is input through the external digital modulation interface, and the corresponding output amplitude, frequency and phase are determined by the signal level of the external digital modulation interface.
-
Page 5: Function Interface
2. USB Interface The USB interface is used to connect to the host computer software to control the instrument (e.g., upgrade the system program to ensure that the current function/arbitrary waveform generator program is the latest version released by the company). -
Page 6: Safety Precautions
Chapter 2 User’s Guide This manual includes safety requirements and the operation of UTG1000X series function/arbitrary generator. 2.1 Inspecting Packaging and List When you receive the instrument, please make sure to check the packaging and list by the following steps: •... - Page 7 Alternating current of device. Please check the region’s voltage range. Direct current device. Please check the region’s voltage range. Grounding Frame and chassis grounding terminal Grounding Protective grounding terminal Grounding Measurement grounding terminal Main power off Main power on Standby power supply: when the power switch is turned off, this device is not completely Power Supply disconnected from the AC power supply.
-
Page 8: Safety Requirements
Safety Requirements Warning Please connect this device to AC power supply with the power cable provided; The AC input voltage of the line reaches the rated value of this device. See the product manual for Preparation before specific rated value. The line voltage switch of this device matches the line voltage;... -
Page 9: Environmental Requirements
Do not block the ventilation holes at the side and back of this device; Do not allow any external objects to enter this device via ventilation holes; Cooling Please ensure adequate ventilation, and leave a gap of at least 15 cm on both sides, front and back of this device. -
Page 10: Electrostatic Protection
2.5 Electrostatic Protection Electrostatic discharge may cause damage to component. Components can be damaged invisibly by electrostatic discharge during transportation, storage and use. The following measure can reduce the damage of electrostatic discharge. • Testing in anti-static area as far as possible •... -
Page 11: Auxiliary Function
3.1.4 Phase The phase of the waveform is 0° in default. The specific steps to set the phase to 90°, Press Phase key, use numerical keyboard to input 90 and then select the unit of the parameter to °. 3.1.5 Duty Cycle of pulse Wave The default frequency of impulse wave is 1 kHz, duty cycle 50%. - Page 12 6. Upper Limit of Amplitude Select Upper to set the upper limit range of the amplitude. 7. Lower Limit of Amplitude Select Lower to set the lower limit range of the amplitude. 3.2.2 Frequency Meter This function/arbitrary waveform generator can measure the frequency and duty cycle of compatible TTL level signals. The range of measurement frequency is 100mHz to 100MHz.
-
Page 13: Chapter 4 Troubleshooting
Group was aware of the possibility of such loss or damage arising) is excluded. This will not operate to limit or restrict the Group’s liability for death or personal injury resulting from its negligence. Multicomp Pro is the registered trademark of Premier Farnell Limited 2019.
