MP751035 and MP751036
Quick Start Guide

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MP751035 and is the answer not in the manual?

Questions and answers

Related Manuals for multicomp pro MP751035

Summary of Contents for multicomp pro MP751035

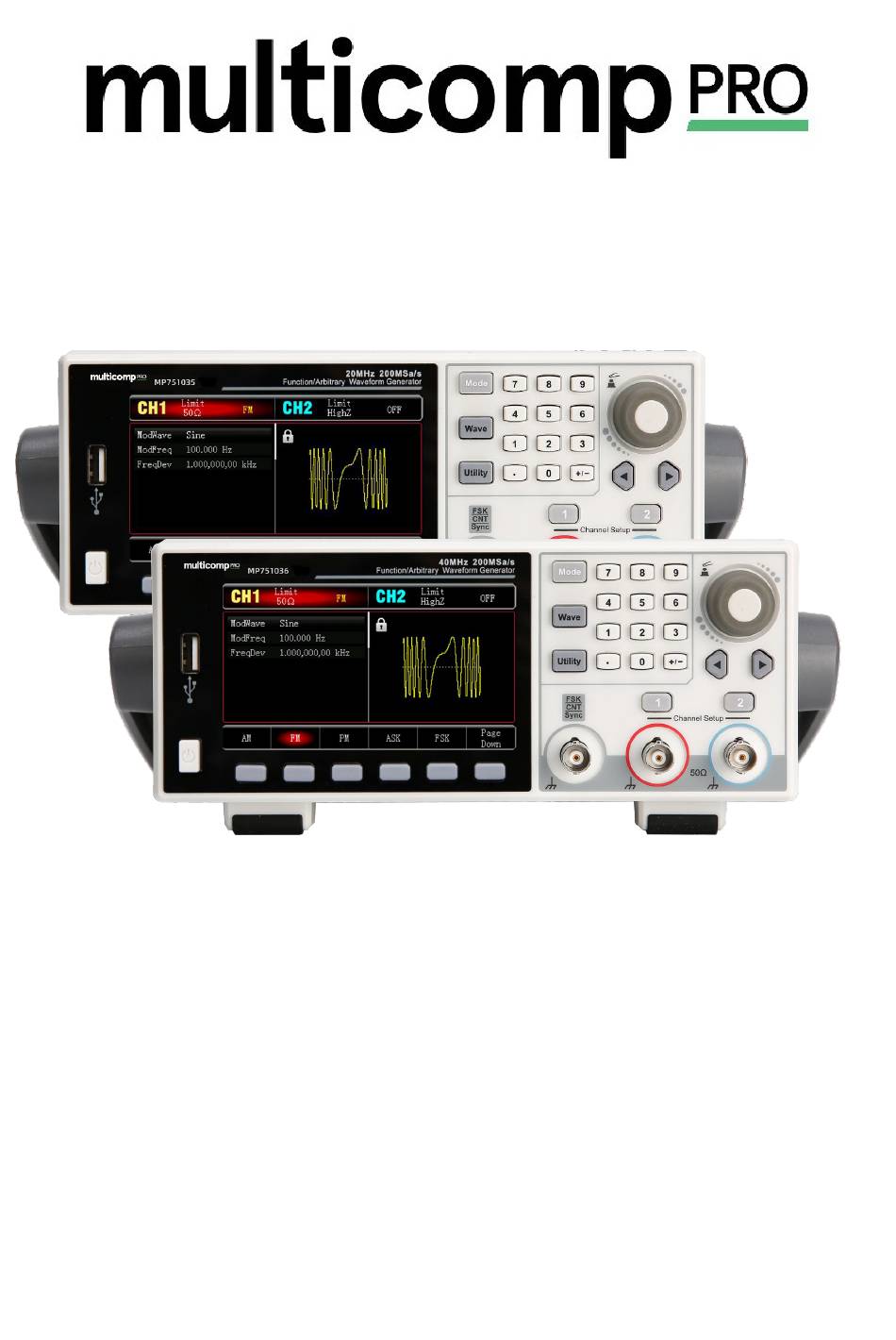

  • Page 1 MP751035 and MP751036 Quick Start Guide...
  • Page 2 Panel Front Panel The product has a simple, intuitive and easy to use front panel, as shown in the following figure. 1. Display Screen 4.3inch high resolution TFT color LCD clearly distinguishes the output status of channel 1 and channel 2, function menu and other important information through different colors.
  • Page 3 9. Menu Operating Soft Key Select or view the contents of the labels (located at the bottom of the function screen) corresponding to the soft key labels, and set the parameters with the numeric keypad or multifunction knobs or arrow keys.
  • Page 4 Rear Panel As shown in the following figure, 1. Power Output (-PA models only) Output interface of power 2. USB Interface The USB interface is used to connect to the host computer software to control the instrument (e.g., upgrade the system program to ensure that the current function/arbitrary waveform generator program is the latest version released by the company).

  • Page 5: Function Interface

    Function Interface ① ② As shown in the following figure, ③ ④ ⑤ 1. CH1 info, the currently selected channel will be highlighted. “50Ω” indicates the impedance 50Ω to be matched at the output port (1Ω to 999Ω can be adjustable, or high impedance, the factory default is High).

  • Page 6: Safety Requirements

    User’s Guide This manual includes safety requirements, instalment, and the operation of MP751035/36 series function/arbitrary generator. Inspecting Packaging and List When you receive the instrument, please make sure to check the packaging and content for any damage. If you have any questions about the product or need consulting services, please contact the distributor.

  • Page 7: Safety Sign

    Safety Sign It indicates possible danger of electric shock, which may cause personal injury Danger or death. Warning It indicates that you should be careful to avoid personal injury or product damage. It indicates possible danger, which may cause damage to this device or other Caution equipment if you fail to follow a certain procedure or condition.
  • Page 8 Safety Requirements When using electrical appliances basic safety precautions should always be followed. • Check that the voltage indicated on the rating plate corresponds with that of the local network before • connecting the appliance to the mains power supply. This appliance is designed for indoor use only.

  • Page 9: Environmental Requirements

    Environmental Requirements This instrument is suitable for the following environment: Indoor use Pollution degree 2 In operating: altitude lower than 2000 meters; in non-operating: altitude lower than 15000 meters; Unless otherwise specified, operating temperature is 10 to +40℃; storage temperature is -20 to﹢60℃ In operating, humidity temperature below to +35℃, ≤90％...

  • Page 10: Remote Control

    Preparation Before connecting to the power supply, check the rating label and power input setting to ensure the instrument is set to the correct voltage for your local supply. Press the power switch on the front panel, the instrument will boot-up. Remote Control The function/arbitrary waveform generator supports communication with the computer via USB interface.

  • Page 11: Frequency Meter

    The default DC is 0V. The specific steps to change DC to 3 V, Press Wave ► Next Page ► DC key in turn, use numerical keyboard to input 3 and then select the unit of the parameter to V. Noise Wave The default amplitude is 100mVpp, DC offset is 0 V quasi Gaussian noise.
  • Page 12 System Select Utility ► System key to enter System setting. Remarks: Due to the system selection menu System, there are two pages, you need to press Next key to turn page. 1. Start Phase PhaseSync Select to “Independent” or “Sync”. Independent: The output phase of CH1 and CH2 output phase is not associated.

  • Page 13: Troubleshooting

    Troubleshooting Troubleshooting methods are listed below. Please handle fault using the corresponding steps. If it cannot be corrected, please contact the distributor and provide the model information (press Utility ► System ► About to check). No Display on Screen (Blank Screen) If the waveform generator displays a blank screen when pressing the power switch on the front panel.

This manual is also suitable for:

Mp751036
