Owner's Manual
Pressure Balancing Progressive
Mixers w/Diverters
Features:
-Built-in mixing valves with progressive cartridges:
- VPBP1 with volume control valve (1-way outlet)
- VPBP2 with 2-way non-sharing diverter
- VPBP2S with 2-way sharing diverter
- VPBP3 with 3-way non-sharing diverter
- VPBP3S with 3-way sharing diverter
-Selection of handles and backplates

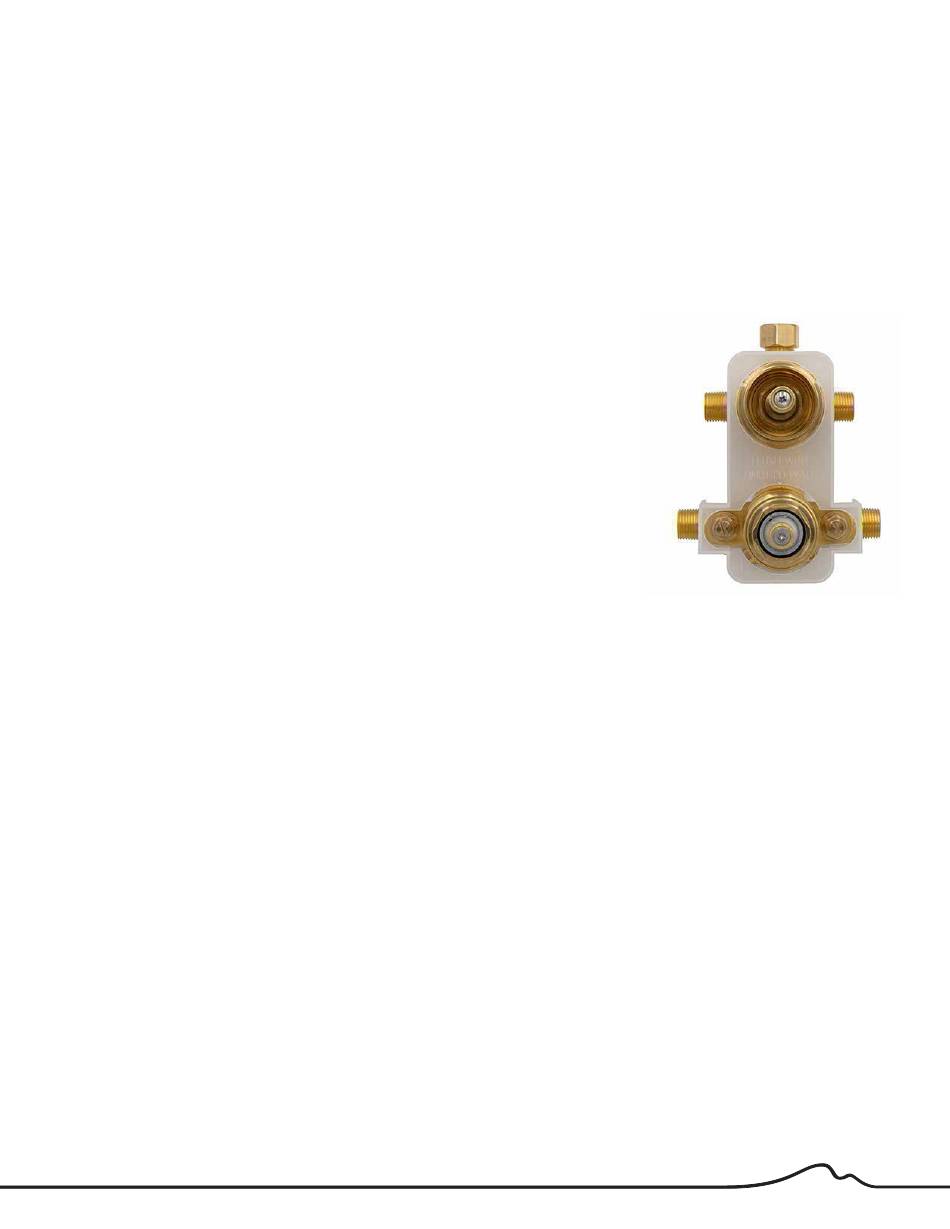

-Brass construction with progressive ceramic cartridge & ceramic diverter cartridge
-Universal non-sharing rough-ins VPBP1, VPBP2, and VPBP3 - LACAVA trims sold separately
-Universal sharing rough-ins VPBP2S, and VPBP3S - LACAVA trims sold separately
-Anti-scald protection & max temperature regulation
-Flow rate at 43.5 PSI: 4.2 GPM
-Screwdriver service stops
-1/2" Male NPT inlets & outlet
-Meets and exceeds national codes and standards
-Non-sharing valves are CAL-Green compliant
-It can be installed to meet ADA compliance
Important: Keep this manual for future technical assistance and/or replacement parts. Please read the instructions within
the booklet carefully prior to installation. LACAVA recommends that this fixture be installed by a professional plumber and
will not be held responsible for any damage caused by improper installation. It is the responsibility of the homeowner to
ensure that this fixture complies with all local plumbing codes. Shut off water supply before starting installation. Please see
the Terms & Conditions found within this booklet for additional information. For technical assistance please contact
773-637-9600.
Importante: Guarde este manual para futura asistencia técnica y / o piezas de repuesto. Por favor, lea las instrucciones
en el folleto cuidadosamente antes de la instalación. LACAVA recomienda que este aparato sea instalado por un técnico
y no se hace responsable de los daños causados por una instalación incorrecta. Es la responsabilidad del propietario
garantizar que este aparato cumpla con todos los códigos de plomería locales. Por favor, consulte nuestros Términos y
Condiciones que se encuentran en este folleto para información adicional. Para obtener asistencia técnica, por favor
contacte a: 773-637-9600.
Table of Contents/Contenido:
Page 2: Product Specifications/Especificaciones de Producto
Page 3: Product Operation/Operación del Producto
Page 4: Parts Breakdown/Desglosamiento de Partes
Page 5: Installation Instructions/Instrucciones de Instalación
Page 6: Cartridge Replacement/Reemplazo del Cartucho
Page 6: Temperature Setting Adjustment/Ajuste de Configuración de Temperatura
Page 7: Cleaning & Care/Cuidado y Limpieza
Page 8: Warranty/Garantía
Page 9: Terms and Conditions/Términos y Condiciones
6630 west wrightwood ave chicago il 60707 usa tel 773 637 9600 fax 773 637 9601 info@lacava.com www.lacava.com
LACAVA
VPBP2 - MIXER + DIVERTER W/2-WAY OUT, NON-SHARING
VPBP2S - MIXER + DIVERTER W/2-WAY OUT, SHARING
VPBP3 - MIXER + DIVERTER W/3-WAY OUT, NON-SHARING
VPBP3S - MIXER + DIVERTER W/3-WAY OUT, SHARING
®
VPBP1 - MIXER + STOP W/1-WAY OUT
Items
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Lacava VPBP2S
Summary of Contents for Lacava VPBP2S
- Page 1 Important: Keep this manual for future technical assistance and/or replacement parts. Please read the instructions within the booklet carefully prior to installation. LACAVA recommends that this fixture be installed by a professional plumber and will not be held responsible for any damage caused by improper installation. It is the responsibility of the homeowner to ensure that this fixture complies with all local plumbing codes.
- Page 2 1/16. Nota: Los planos proporcionados en este documento tienen el propósito de dar al usuario una idea del producto y no están hechos a escala. Los tamaños de pulgadas se redondean al más cercano 1 / 16. LACAVA...
- Page 3 90° 60° 90° 60° OUTLET C OUTLET B OUTLET B 60° OUTLET C 60° 90° OUTLET C+A 90° OUTLET B+A 60° OUTLET B+C 60° OUTLET A +°F / +°C 150° -°F / -°C LACAVA...
- Page 4 VD3-C diverter ceramic cartridge with 3-way out, non-sharing VD3S-C diverter ceramic cartridge with 3-way out, sharing Note: Please reference this sheet and the corresponding part number when requesting parts. Nota: Por favor referirse a esta pagina y la parte correspondiente cuando ordene partes. LACAVA...
- Page 5 7. Close valve and install the sleeves and backplate - slide the backplate over the mixer body with the O-ring washers in place. 8. Install the handles, tighten the set screws securely and cover the access holes with the decorative caps. LACAVA...
- Page 6 Align the teeth temperature. carefully to slide it back on. Install all the parts back. LACAVA...
-
Page 7: Cleaning And Care
- Nunca use materiales abrasivos o productos de limpieza que contienen amoníaco, lejía o ácido, ya que pueden causar daños a la superficie acabada. ¡Nos gustaría darle las gracias por su compra y estamos seguros que usted podrá disfrutar de nuestros productos por muchos años! LACAVA... -
Page 8: Warranty
If a defect is found under normal use, while under warranty, LACAVA will repair or replace the product (whichever cost is smaller to LACAVA) at its own expense (excluding shipping and installation charges). -
Page 9: Terms And Conditions
RETURN POLICIES: If the product is not satisfactory for any reason different from defects, it can be returned to LACAVA up to 30 days from the shipping date after obtaining a Return Goods Authorization (RGA) valid for 60 days. If the product is not returned to LACAVA within that timeframe, the RGA will be voided and no further RGAs will be issued for the product. -
Page 10: Términos Y Condiciones
Autorización de Devolución de Bienes (RGA), válida por 60 días. Si el producto no se devuelve a LACAVA dentro de ese plazo, la RGA se anularán y no se RGA se emitirán nuevos para el producto.
