Owner's Manual

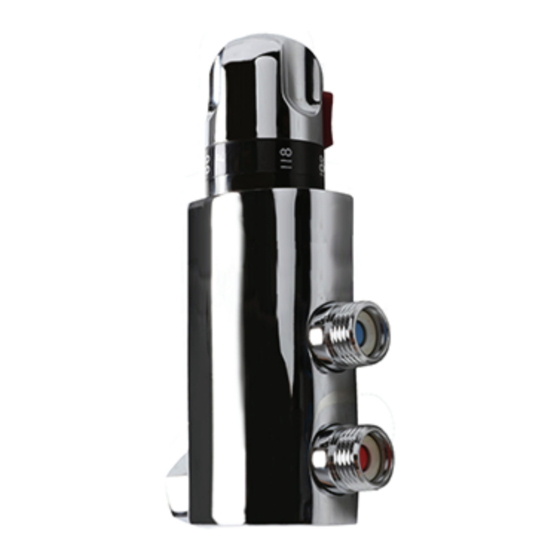

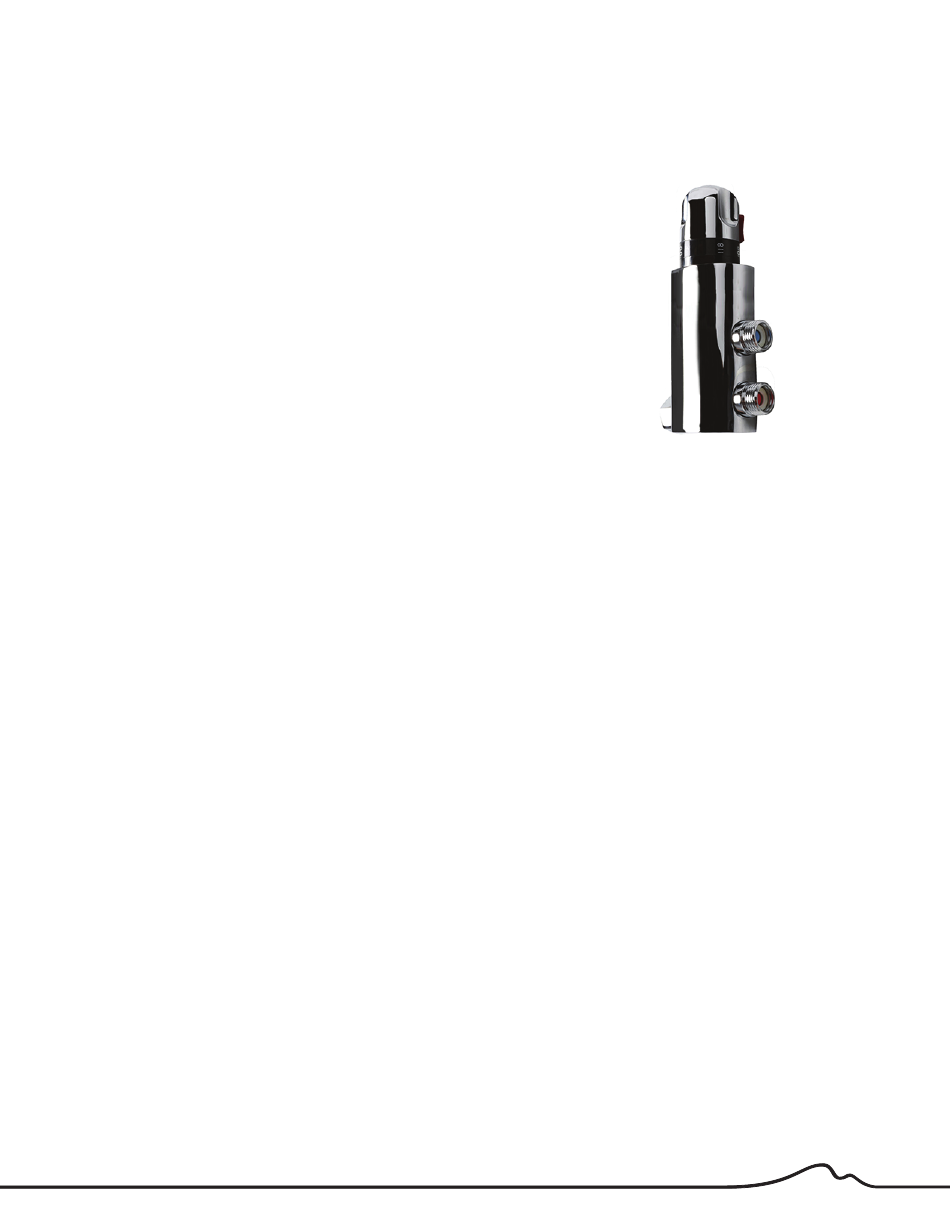

ZOOM Thermostatic Mixing Valve
Item: EX25A
Features:
-Wall-mount integrated thermostatic mixing valve
-Brass construction with Vernet cartridge
-Water flow rate : 6 GPM at 43.5 PSI
-Includes built-in filters and check valves
-Standard water temperature range 68-118⁰F
-Flexible installation
Important: Keep this manual for future technical assistance and/or replacement parts. Please read the instructions within
the booklet carefully prior to installation. LACAVA recommends that this fixture be installed by a professional plumber and
will not be held responsible for any damage caused by improper installation. It is the responsibility of the homeowner to
ensure that this fixture complies with all local plumbing codes. Please see the Terms & Conditions found within this
booklet for additional information. For technical assistance please contact 773-637-9600.
Importante: Guarde este manual para futura asistencia técnica y / o piezas de repuesto. Por favor, lea las instrucciones
en el folleto cuidadosamente antes de la instalación. LACAVA recomienda que este aparato sea instalado por un técnico
y no se hace responsable de los daños causados por una instalación incorrecta. Es la responsabilidad del propietario
garantizar que este aparato cumpla con todos los códigos de plomería locales. Por favor, consulte nuestros Términos y
Condiciones que se encuentran en este folleto para información adicional. Para obtener asistencia técnica, por favor
contacte a: 773-637-9600.
Table of Contents/Contenido:
Page 2: Product Specifications/Especificaciones de Producto
Page 3: Parts Breakdown/Desglosamiento de Partes
Page 4 : Installation Instructions/Instrucciones de Instalación
Page 6: Cleaning & Care/Cuidado y Limpieza
Page 7: Warranty/Garantía
Page 8: Terms and Conditions/Términos y Condiciones
6630 West Wrightwood Ave. Chicago, IL 60707 tel 773 637 9600 fax 773 637 9601 info@lacava.com www.lacava.com
LACAVA
®
Advertisement
Related Manuals for Lacava EX25A
Summary of Contents for Lacava EX25A
- Page 1 Important: Keep this manual for future technical assistance and/or replacement parts. Please read the instructions within the booklet carefully prior to installation. LACAVA recommends that this fixture be installed by a professional plumber and will not be held responsible for any damage caused by improper installation. It is the responsibility of the homeowner to ensure that this fixture complies with all local plumbing codes.
- Page 2 F 1/2” G M 1/2” G 2 1/8” Note: Drawings provided herein are meant to give the user an idea of the product and are not made to scale. The sizes in inches are rounded up to the nearest 1/16. LACAVA...
- Page 3 Parts Breakdown/Desglosamiento de Partes Parts: R039 thermorstatic cartridge Note: Please reference this sheet and the corresponding part number when requesting parts. Nota: Por favor referirse a esta pagina y la parte correspondiente cuando ordene partes. LACAVA...
- Page 4 Installation Instructions/Instrucciones de Instalación Technical Specifications EX25A Item Code Brass Material Vernet, part # R039 Thermostatic cartridge 6 GPM at 43.5 PSI Flou rate Temperature range 68-118 F 2 x M 1/2” G IN connection OUT connection F 1/2” G...
- Page 5 Max temperature limit for mixed water output is 118ºF. - Recommended hot water supply is 150ºF and should not exceed 185ºF. - Recommended supply water pressure is 43.5 PSI, range limits 14-80 PSI. LACAVA...
- Page 6 - Nunca use materiales abrasivos o productos de limpieza que contienen amoníaco, lejía o ácido, ya que pueden causar daños a la superficie acabada. ¡Nos gustaría darle las gracias por su compra y estamos seguros que usted podrá disfrutar de nuestros productos por muchos años! LACAVA...
- Page 7 If a defect is found under normal use, while under warranty, LACAVA will repair or replace the product (whichever cost is smaller to LACAVA) at its own expense (excluding shipping and installation charges).
- Page 8 RETURN POLICIES: If the product is not satisfactory for any reason different from defects, it can be returned to LACAVA LLC up to 30 days from the shipping date after obtaining a Return Goods Authorization (RGA) valid for 60 days. If the product is not returned to LACAVA within that timeframe, the RGA will be voided and no further RGAs will be issued for the product.
- Page 9 Autorización de Devolución de Bienes (RGA), válida por 60 días. Si el producto no se devuelve a LACAVA dentro de ese plazo, la RGA se anularán y no se RGA se emitirán nuevos para el producto.
