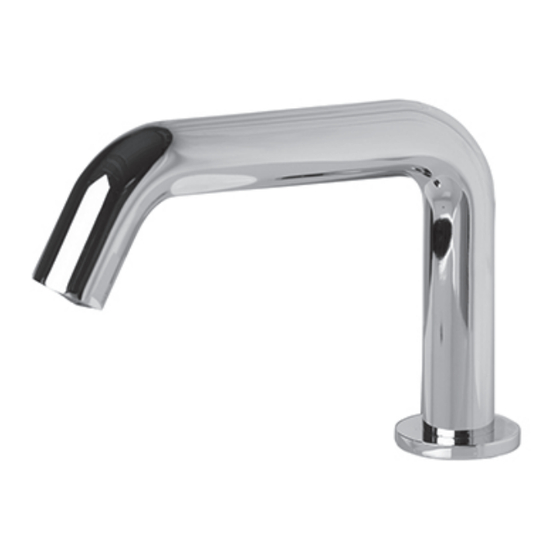

Lacava ZOOM EX42-D1 Owner's Manual

LACAVA

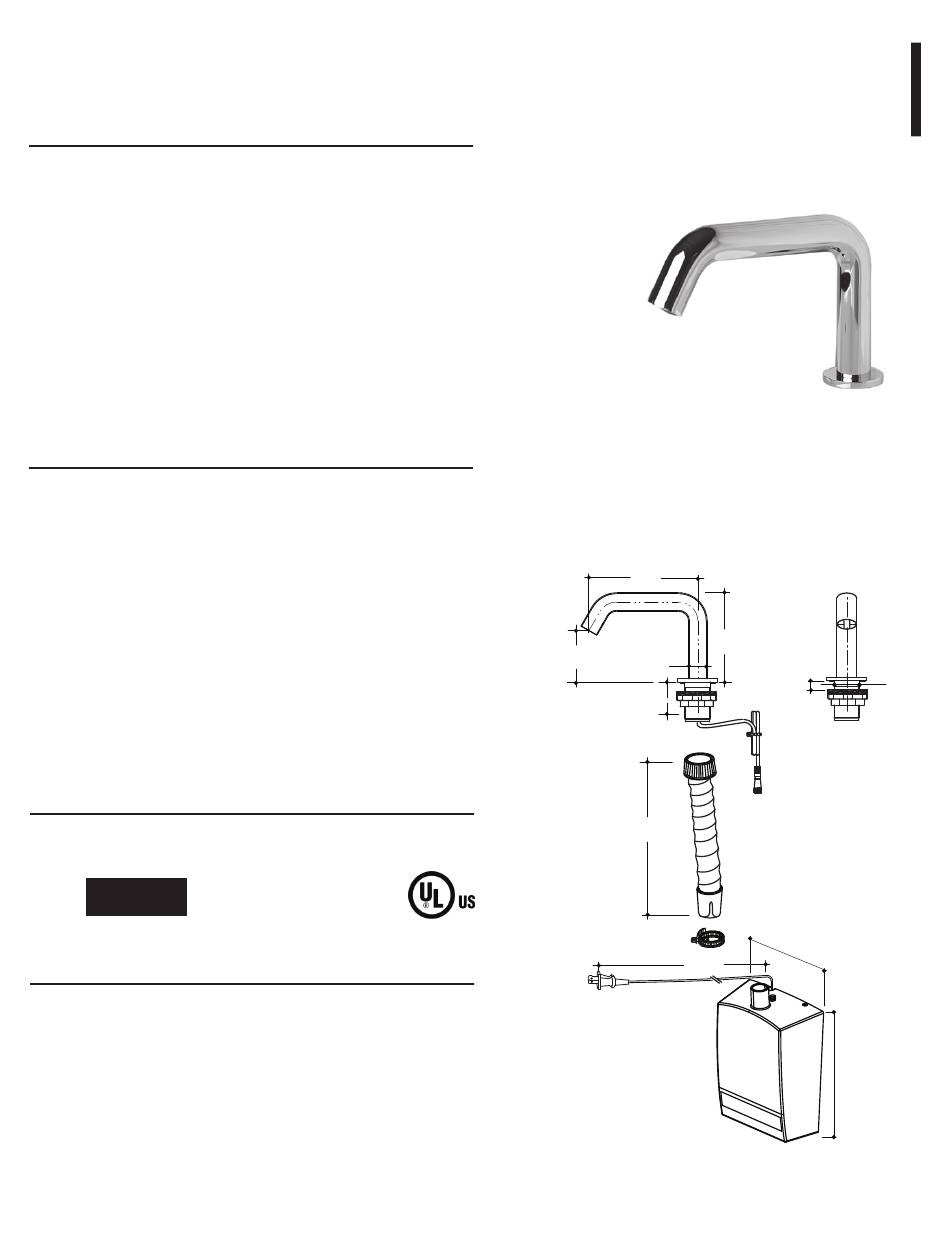

Specifications:

Installa�on:
Spout Dimensions:
Material:
Power Supply:
Finishes:
Cutout Size:
Component Parts Included:

Features:

• Power supply:
• Voltage: 120V AC
• Frequency: 50/60 Hz
• Power: 1100W max.
• Sensing distance: 4" approx. (10 - 12 cm)
Designed to automatically shut off after 60 seconds
•
of continuous operation
Complements the Zoom electronic faucets
•
• HEPA-filter removes 99.99% of particles as small
as 0.3 µm, including dust, mold spores and most bacteria
from airflow
• Easy installation; easy maintenance
Codes + Standards:
Meets and exceeds applicable national codes
•
and standards
ADA
compliant when installed to specific
requirements of this regulation
Recommended Items:
• Replacement parts:
• #EX42-FL - replacement filter
• #EX42-BX - replacement operating box
• #EX42-SENR replacement sensor
•
Matching fixtures (sold separately)
• #EX22 - electronic faucet
• #EX23 - electronic soap dispenser
LACAVA reserves the right to revise any dimension or information on this sheet without notice. Dimensions are nominal and may vary within an industry accepted tolerance of 1/4".
Drawings provided herein are meant to give the user an idea of the product and are not made to scale. Location of plumbing is meant for reference, your specific application may
vary.
LACAVA
deck- mount 1-hole, touch-free
H: 5 1/2" SPOUT: 6 3/4"
solid brass construction for durability
AC
CR - polished chrome
21 - brushed staineless steel
PN - polished nickel
NI - brushed nickel
BG - brushed gold
44 - matte black
TN - titanium
Ø 1 3/8"
spout, power supply cable, installation hardware,
operating box and flexible air hose
| CHICAGO, IL, USA | 773.637.9600
•
•
3 1/2"
82
Revised: 02/15/2023
| INFO@LACAVA.COM |
deck-mount hand dryer
EX42-D2
touch- free safety from
spreading undesirable pathogens
commercial grade automated fixture
6 3/4"
171
5 1/2"
141
Ø 1 1/8"
29
Max 1 3/8"
35
1 7/8"
48
Max 21"
533
8"
203
Max 48"
1220
LACAVA.COM
ZOOM
Ø 1 1/4"
32
10 3/4"
275
