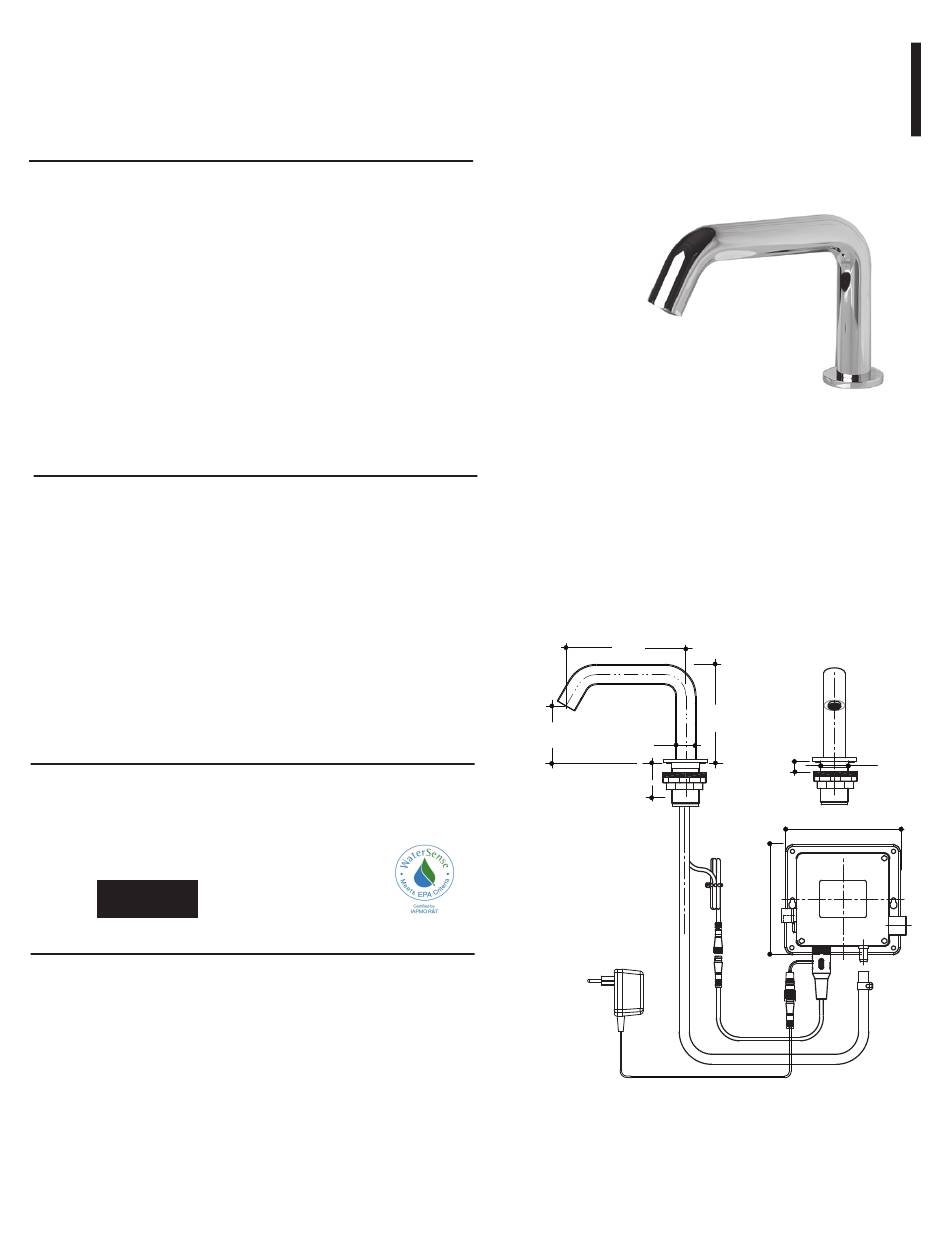

Lacava ZOOM EX22 Manual

LACAVA
Specifications:
Installa�on:
Exterior Dimensions:
Material:
Water use:
Power supply:
Finishes:
Cutout Size:
Accessories included:
Features:
• Power supply options:
AC - transformer with a plug to electricity and/or
DC - battery pack for 4 x AA alkaline batteries
(batteries not included)
- on average lasts for 108,000 use cycles
• For cold or premixed water (mixer sold separately)
10 seconds metering cycles
•
Sensing range: 2"-12" (5cm - 30cm) adjustable with
•
a button on the side of the control box
Sensing distance is set during installation - see manual
•
Water pressure: 15-90 PSI, recommended 43.5 PSI
•
Water temperature: 34-120o Fahrenheit (1-50 o Celsius)
•
Codes + Standards:
Meets and exceeds applicable national codes
•
and standards
• 1 GPM Watersence certified (EX22)
• 0.5 GPM CAL-Green compliant (EX22.5)
• 0.35 GPM LEED Credit (EX22.35)
ADA
compliant when installed to specific
requirements of this regulation
Recommended Items:
• Replacement parts:
• #4ABATPK - replacement battery pack
• #EX22-SENR replacement sensor
• Mixing valves (sold separately)
• #EX20A - mechanical mixing valve
• #EX25A - integrated thermostatic valve
• American size grid drains
• #7100-18 - without overflow holes
• #7100-18OF - with overflow holes
LACAVA reserves the right to revise any dimension or information on this sheet without notice. Dimensions are nominal and may vary within an industry accepted tolerance of 1/4".
Drawings provided herein are meant to give the user an idea of the product and are not made to scale. Locatio o n of plumbing is meant for reference, your specific application may vary.
LACAVA

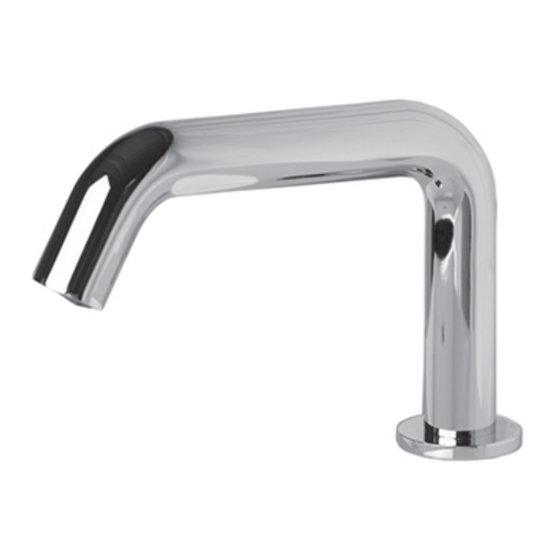

deck- mount 1-hole, touch-free
H: 5 1/2" SPOUT: 6 3/4"
solid brass construction
1 GPM (EX22), 0.5 GPM (EX22.5), 0.35 GPM (EX22.35)
AC/DC
CR - polished chrome
PN - polished nickel
NI - brushed nickel
BG - brushed gold
44 - matte black
TN - titanium
MW - matte white (made to order)
Ø 1 3/8"
power adapter, flexible supply
line F 1/2" and battery box
| CHICAGO, IL, USA |
EX22/EX22.5/EX22.35
•
•
•
3 1/2"
82
Revised: 9/26/2022
773.637.9600 | INFO@LACAVA.COM |
deck-mount electronic faucet
touch- free safety from
spreading undesirable pathogens
commercial grade automated fixture
low flow promotes water use savings
6 3/4"
171
5 1/2"
141
Ø 1 1/8"
29
Max 1 3/8"
35
1 7/8"
48
4 3/4"
120
LACAVA.COM
ZOOM
Ø 1 1/4"
32
4 7/8"
125
INLET
M1/2"
