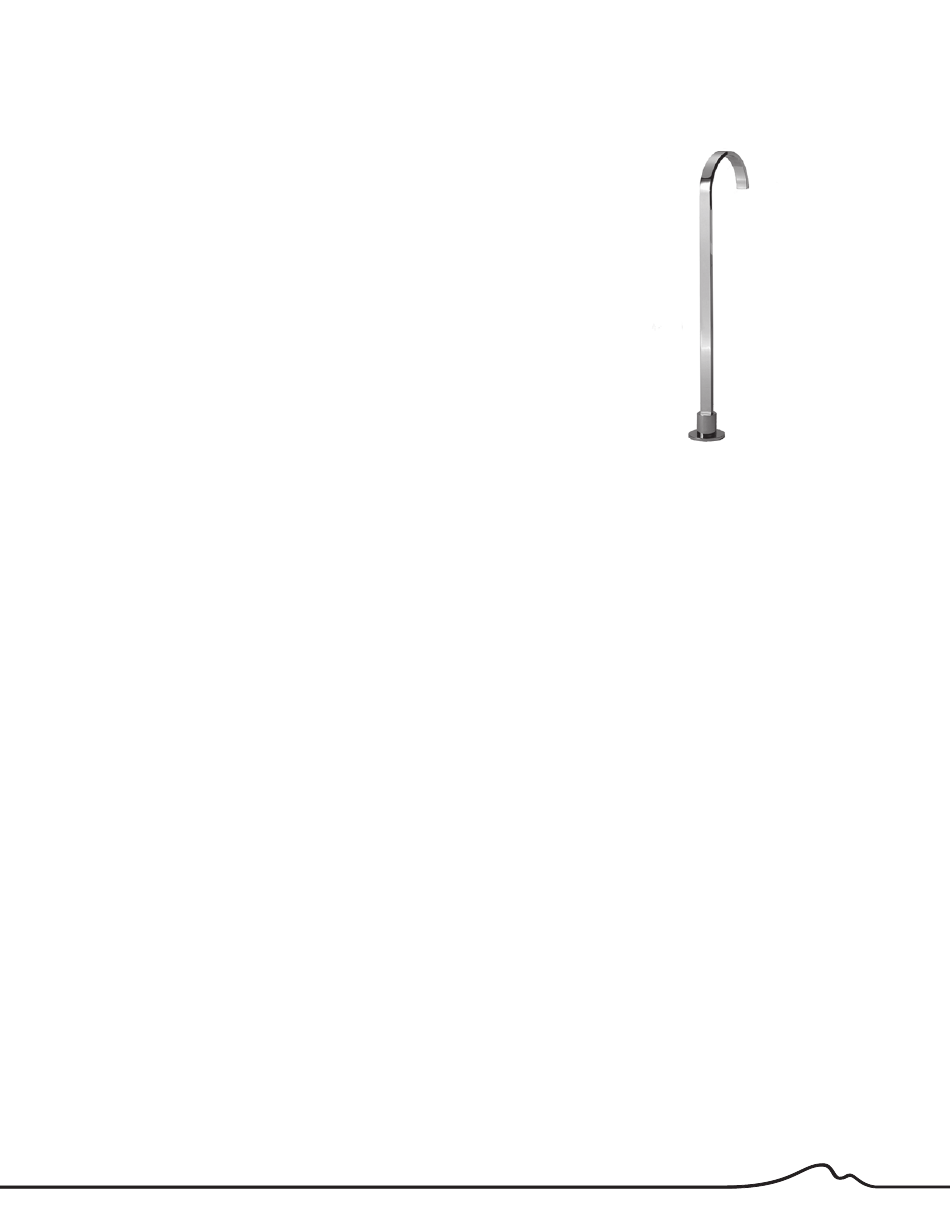

LACAVA
®
Owner's Manual

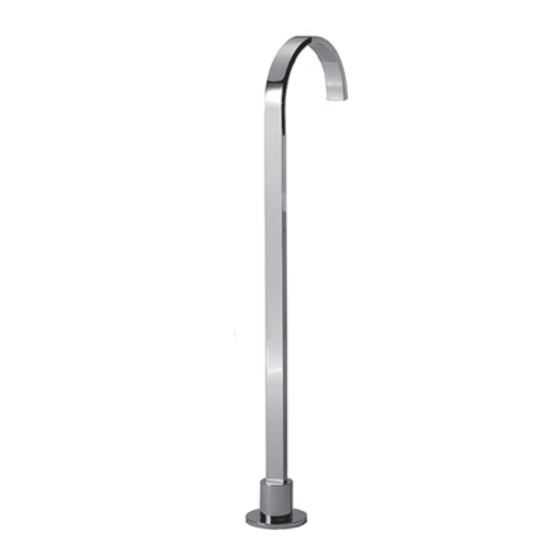

ARCH spout
Item # 12329.1, 13016F.1, 13016FL
Features:
-Floor-standing single-hole spout with flange
-Brass construction
-Spout with aerator
-Mixer sold separately
Important: Keep this manual for future technical assistance and/or replacement parts. Please read the instructions within
the booklet carefully prior to installation. LACAVA recommends that this fixture be installed by a professional plumber and
will not be held responsible for any damage caused by improper installation. It is the responsibility of the homeowner to
ensure that this fixture complies with all local plumbing codes. Please see the Terms & Conditions found within this
booklet for additional information. For technical assistance please contact 773-637-9600.
Importante: Guarde este manual para futura asistencia técnica y / o piezas de repuesto. Por favor, lea las instrucciones
en el folleto cuidadosamente antes de la instalación. LACAVA recomienda que este aparato sea instalado por un técnico
y no se hace responsable de los daños causados por una instalación incorrecta. Es la responsabilidad del propietario
garantizar que este aparato cumpla con todos los códigos de plomería locales. Por favor, consulte nuestros Términos y
Condiciones que se encuentran en este folleto para información adicional. Para obtener asistencia técnica, por favor
contacte a: 773-637-9600.
Table of Contents/Contenido:
Page 2: Product Specifications/Especificaciones de Producto
Page 3: Parts Breakdown/Desglosamiento de Partes
Page 4: Installation Instructions/Instrucciones de Instalación
Page 5: Cleaning & Care/Cuidado y Limpieza
Page 6: Warranty/Garantía
Page 7: Terms and Conditions/Términos y Condiciones
6630 west wrightwood ave chicago il 60707 usa tel 773 637 9600 fax 773 637 9601 info@lacava.com www.lacava.com
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Lacava 13016FL
Summary of Contents for Lacava 13016FL
- Page 1 Important: Keep this manual for future technical assistance and/or replacement parts. Please read the instructions within the booklet carefully prior to installation. LACAVA recommends that this fixture be installed by a professional plumber and will not be held responsible for any damage caused by improper installation. It is the responsibility of the homeowner to ensure that this fixture complies with all local plumbing codes.
- Page 2 Product Specifications/Especificaciones de Producto 9 7/8" 46 1/2" 1182 Ø 4 3/4" 41 3/8" 1050 M 1/2" Mixer included only with 13016F.1 and 13016FL 5 3/4" 1 1/2" - 2 1/2” 2 1/8” 40-60 M 1/2" NPT 1 3/4" 2 1/2”...
- Page 3 Parts Breakdown/Desglosamiento de Partes Mixer included only with 13016FL, 13016F.1 Aerator only on 13016FL, 13016F.1 Note: Please reference this sheet and the corresponding part number when requesting parts. Nota: Por favor referirse a esta pagina y la parte correspondiente cuando ordene partes.
- Page 4 6. Now, taking care not to scratch the spout carefully slide the base cover (4) over the spout and flush to the floor. 7. If installing faucet 13016F.1 or 13016FL, proceed to the wall valve installation. LACAVA...
- Page 5 Installation Instructions/Instrucciones de Instalación VALVE INCLUDED ONLY WITH 13016F.1 AND 13016FL 1. Determine the location of the valve. Then install support framing to mount the valve to. 2. Position the valve in the wall (check depth) and secure into place on the support framing using the provided screws.
- Page 6 - Nunca use materiales abrasivos o productos de limpieza que contienen amoníaco, lejía o ácido, ya que pueden causar daños a la superficie acabada. ¡Nos gustaría darle las gracias por su compra y estamos seguros que usted podrá disfrutar de nuestros productos por muchos años! LACAVA...
- Page 7 If a defect is found under normal use, while under warranty, LACAVA will repair or replace the product (whichever cost is smaller to LACAVA) at its own expense (excluding shipping and installation charges).
- Page 8 RETURN POLICIES: If the product is not satisfactory for any reason different from defects, it can be returned to LACAVA LLC up to 30 days from the shipping date after obtaining a Return Goods Authorization (RGA) valid for 60 days. If the product is not returned to LACAVA within that timeframe, the RGA will be voided and no further RGAs will be issued for the product.
- Page 9 Autorización de Devolución de Bienes (RGA), válida por 60 días. Si el producto no se devuelve a LACAVA dentro de ese plazo, la RGA se anularán y no se RGA se emitirán nuevos para el producto.
