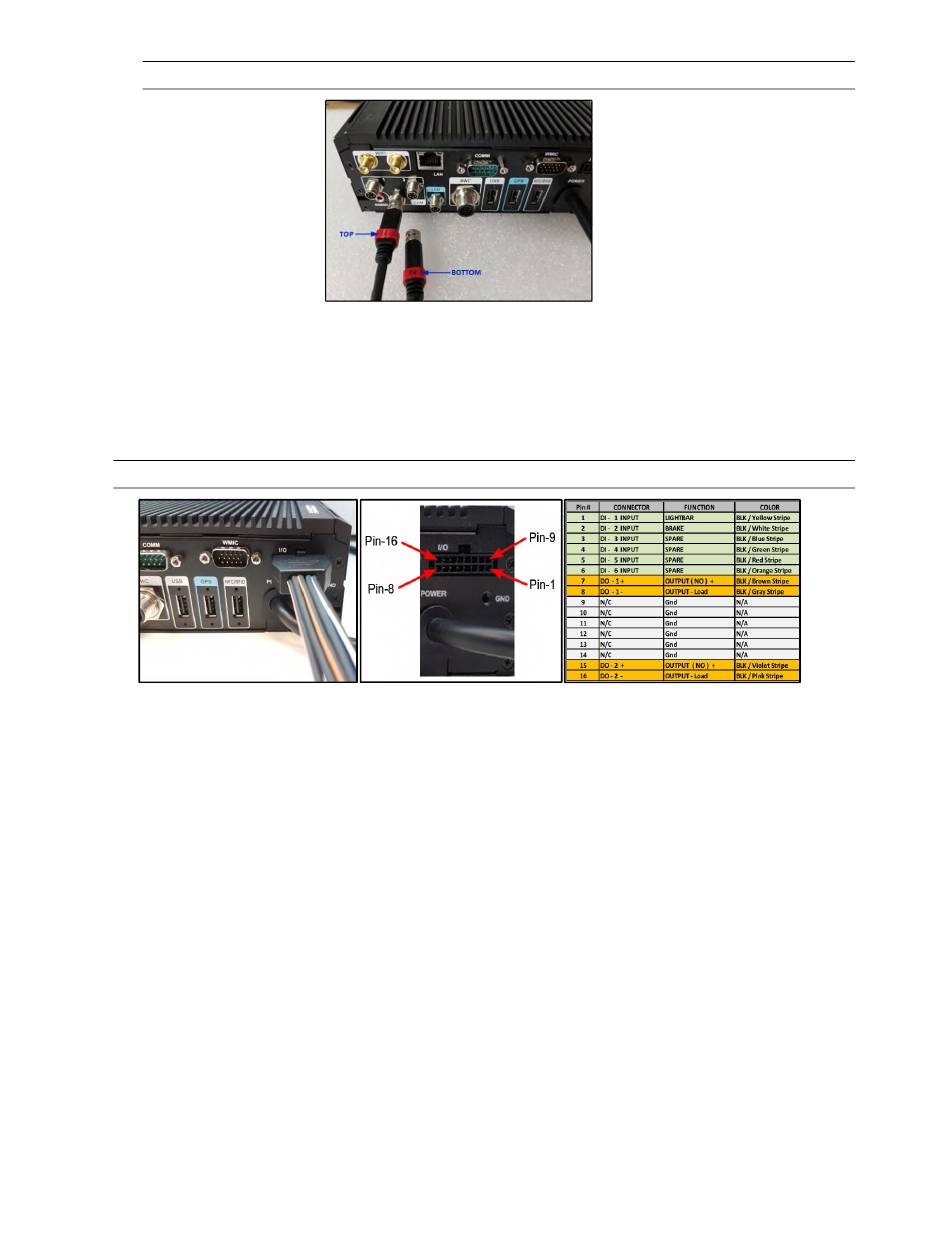

3. Connect the camera extension to the port on the back of the CPU labelled CAM 2.
NOTE: For proper orientation make sure the top flat side of the connector is facing up.

2.7.5 I/O Cable

To connect the I/O cable, follow these steps:
1. Connect the I/O cable to the port on the CPU labelled I/O.
2. Attach the Black wire with the Yellow Stripe to a 12V output signal from the lightbar.
NOTE: Digital Inputs and outputs are configured in the Command Center Back office.

2.8 Peripherals

2.8.1 GPS

To wire the GPS, follow these steps:
1. Place the GPS receiver near a window to allow better connection with satellite.
2. Run the cable to the CPU and plug it into the port labelled GPS.
3. Tighten the connector screws.
