COBAN Technologies Inc.

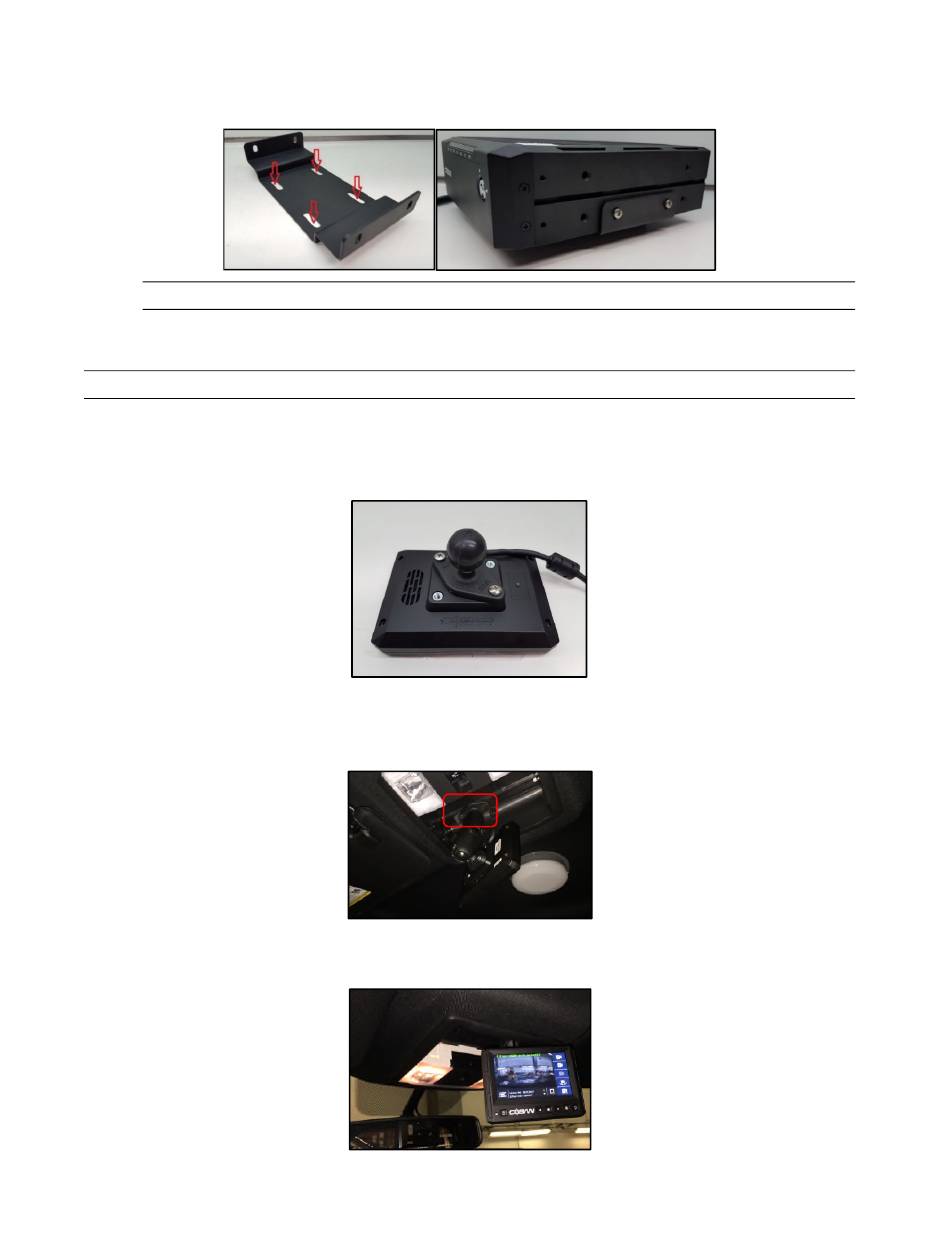

To mount the CPU, follow these steps:
1. Locate a flat surface.
2. Use the 4 self-tapping screws to secure the mounting bracket.
NOTE: Be careful not to damage the vehicle's fuel tank with the self-tapping screws.
2.4 Mount the Monitor
NOTE: Additional mounting locations will be available at a later date.
To mount the FOCUS H1 monitor, follow these steps:
1. Attach the Ram Diamond Ball Mount and secure it to the back of the monitor with the
8-32 machine screws.
2. Mount the second Ram Diamond Ball Mount to the vehicle using the self-tapping screws
and attach the monitor assembly to the vehicle using the Ram arm as shown in the
example below.
3. Adjust the monitor to the desired position and tighten the ram mount as shown in the
example below.
COBAN FOCUS H1 In-car Video System Installation Guide v1.0.2
Page | 6
