COBAN Technologies Inc.
2.9

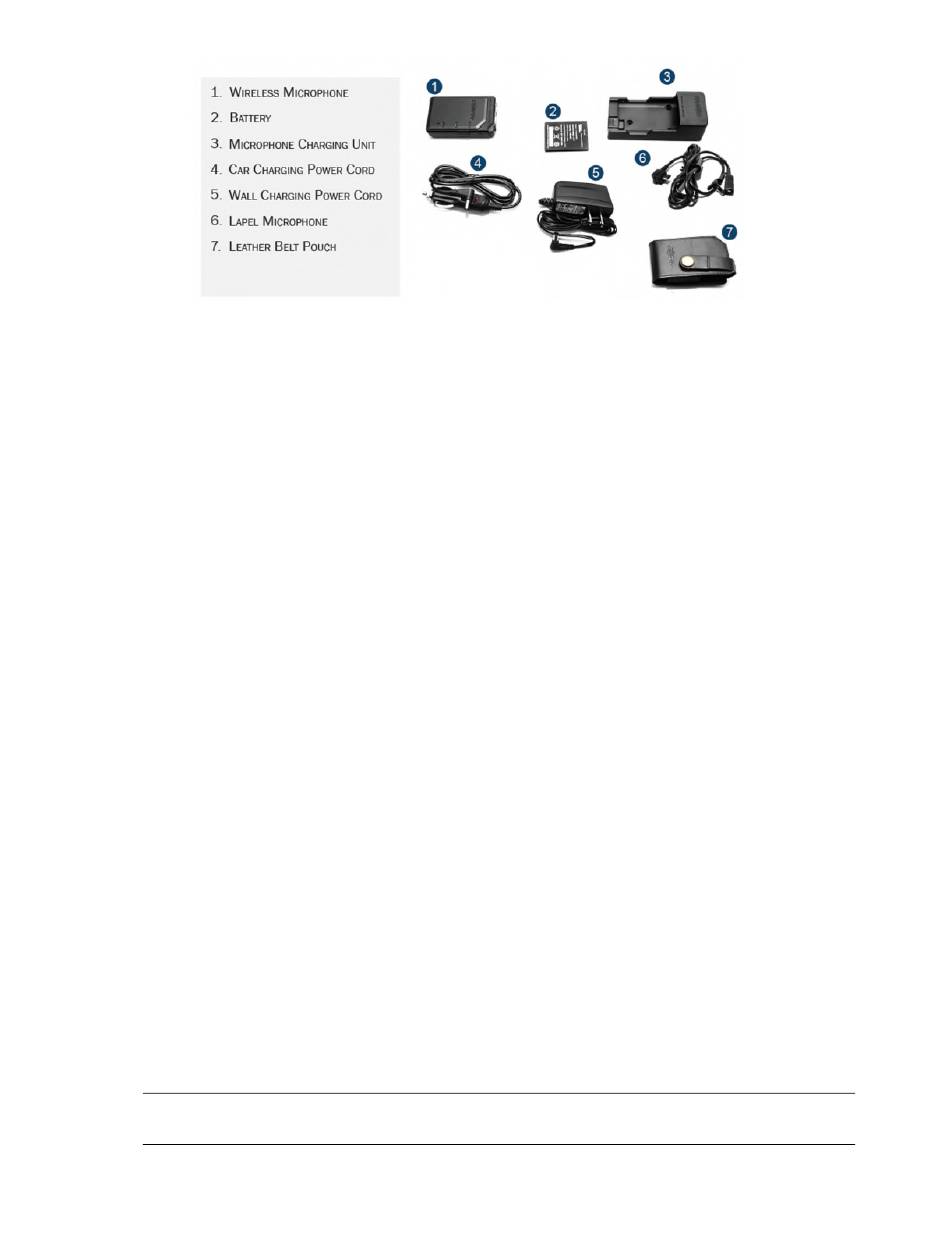

Wireless Microphone

The H1 In-car video system supports up to two wireless microphones, in addition to the In-car
microphone. To access the secondary receiver contacts, remove the cover located near the
primary receiver.
When a recording on camera 1 is started, the wireless microphones are turned on. When
camera 1 is stopped, the microphones are turned off.
The microphone has the following three buttons:
 Rec – larger button on top
 PB1 – smaller button on top. This is a programmable function button.
 PB2 – side button. This is a programmable function button.
If there are two wireless microphones, their push buttons are given the same functions.
 Mute – mutes the sound from the wmic. When mute is on, a button LED displays. When
the mute is off the button LED is turned off.
 Marker – records the time when the button is pressed. This is the same as a bookmark.
 TriggerCam2 – starts camera2.
 Snapshot –This is the same as the snapshot function on the live view screen.

2.9.1 Sync the Wireless Microphone

To sync the wireless microphone, follow these steps:
1. Verify your microphones are fully charged.
2. Power on the In-car Video System.
3. Touch the microphone contacts (located on the bottom of the wireless microphone unit)
to the receiver's register contacts.
A confirmation tone sounds indicating the receiver and microphone have synchronized
frequencies. The microphone is now in Standby mode and ready for use.
4. If necessary, repeat these steps with additional microphones while ensuring each is
synched to its own receiver.
NOTE: Syncing a second microphone to the same receiver will replace and nullify the first
microphone.
COBAN FOCUS H1 In-car Video System Installation Guide v1.0.2 Page | 11
